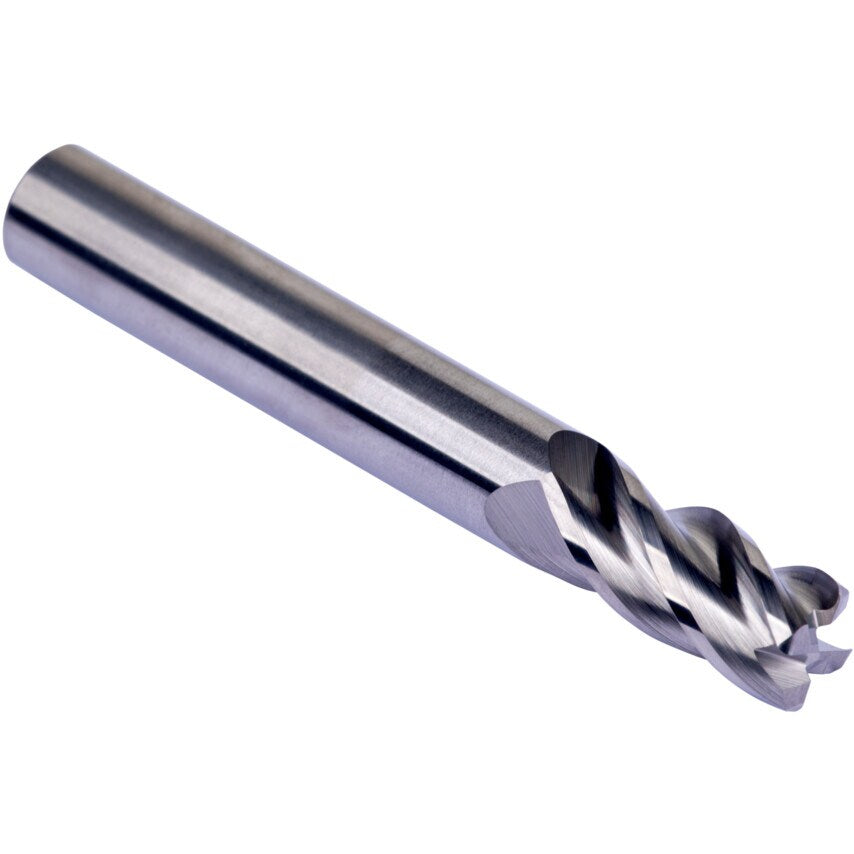

Introducing the Short Series Corner Radius End Mill, a versatile tool engineered for precision machining in non-ferrous metals. With 4 flutes, a 40 helix, and a 10 rake angle, this end mill excels in shoulder milling, plunging, ramping, and helical milling applications. Crafted from Micrograin Carbide, it offers extreme hardness and wear resistance, ensuring prolonged tool life, especially when tackling challenging materials. Elevate your machining efficiency with this high-performance corner radius end mill, designed to deliver reliability and durability in a variety of non-ferrous metal milling operations.Features and Benefits Suited for precision and high-speed machining of aluminium parts in air frame assembly, automotive applications and die and mold, particularly for prototypingTypical Applications N - Non-ferrous metals (metals including alloys without an appreciable amount of iron)
| Plunge Type | Centre Cutting |
| Cutting Direction | Neutral |
| Milling Cutter Type | End Mills |
| Overall Length | 57mm |
| Cutter Diameter Tolerance | Short |
| End Mill Type | End Mill |
| Flute Type | Helical |
| Shank Diameter | 6mm |
| Helix Angle | 40\u00b0 |
| System of Measurement | Metric |
| Flute Length | 16mm |
| Cutter Diameter | 6mm |
| Corner Radius | 0.5mm |
| Material | Carbide |
| ISO Category | N |
| Coolant Delivery | External |
| MFR Part No. | S6626.0XR0.5 |
| Series | Short |
| Standards Met | DIN 6535 |
| Cutter Style | Corner Radius |
| Shank Type | Straight |
| Number of Flutes | 4 |
| Length Type | Short |
| Finish/Coating | Bright |
