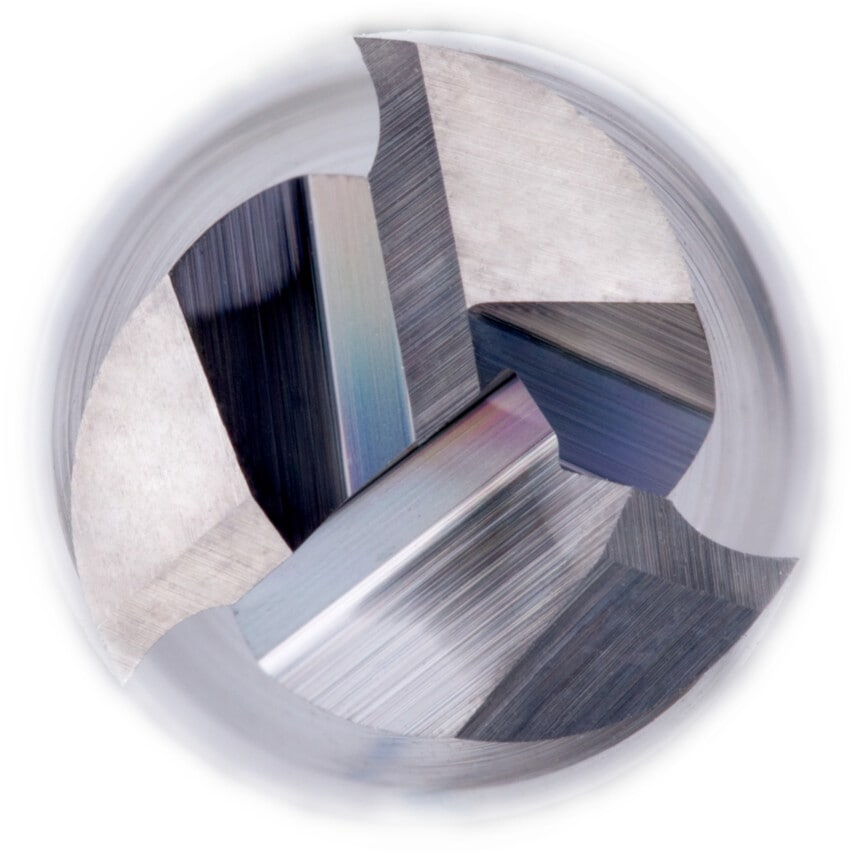

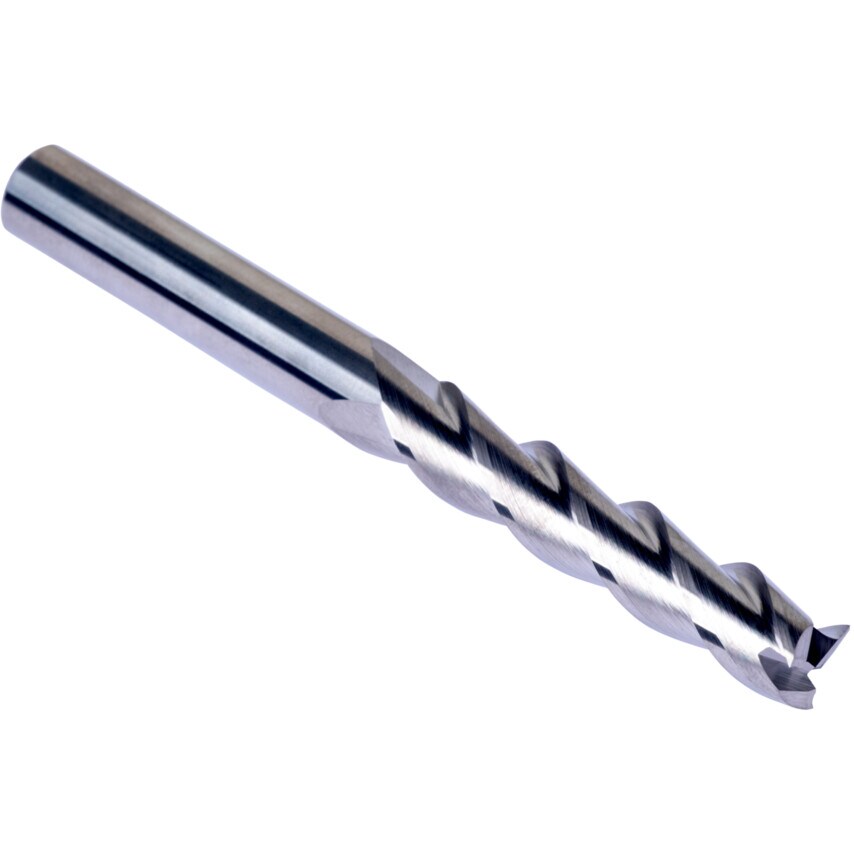

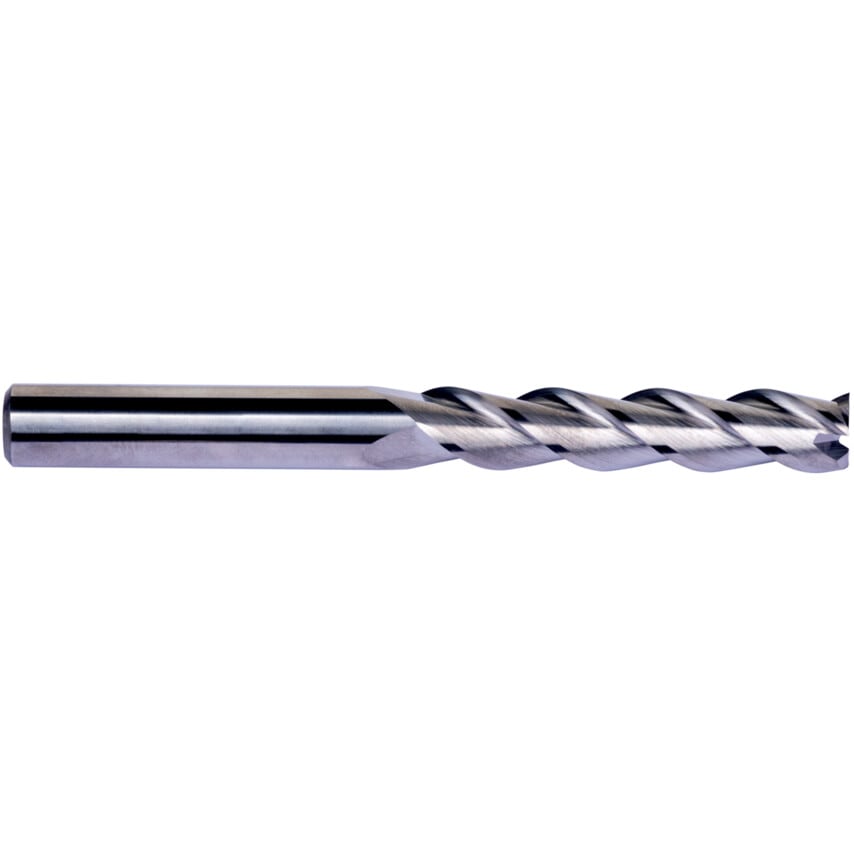

Introducing the Dormer Extra Long Series End Mill, a cutting-edge solution for precision machining in non-ferrous metals. This solid carbide tool features 3 flutes, a bright finish, a 40 helix, and a 13 rake angle, specifically designed for efficient shoulder milling applications. Crafted from Micrograin Carbide, it ensures extreme hardness and wear resistance, significantly extending tool life when tackling challenging materials. Elevate your machining capabilities with this high-performance end mill, engineered for durability and precision in every application.Features and Benefits Suited for precision and high-speed machining of aluminium parts in air frame assembly, automotive applications and die and mold, particularly for prototypingTypical Applications N - Non-ferrous metals (metals including alloys without an appreciable amount of iron)
| Coolant Delivery | External |
| Material | Carbide |
| System of Measurement | Metric |
| Cutting Direction | Neutral |
| Milling Cutter Type | End Mills |
| Shank Type | Straight |
| Finish/Coating | Bright |
| Flute Type | Helical |
| Helix Angle | 40\u00b0 |
| Number of Flutes | 3 |
| Cutter Diameter | 4mm |
| Cutter Diameter Tolerance | Extra Long |
| MFR Part No. | S6144.0XD6 |
| ISO Category | N |
| Series | Extra Long |
| Overall Length | 75mm |
| Cutter Style | Square End |
| Length Type | Extra Long |
| End Mill Type | End Mill |
