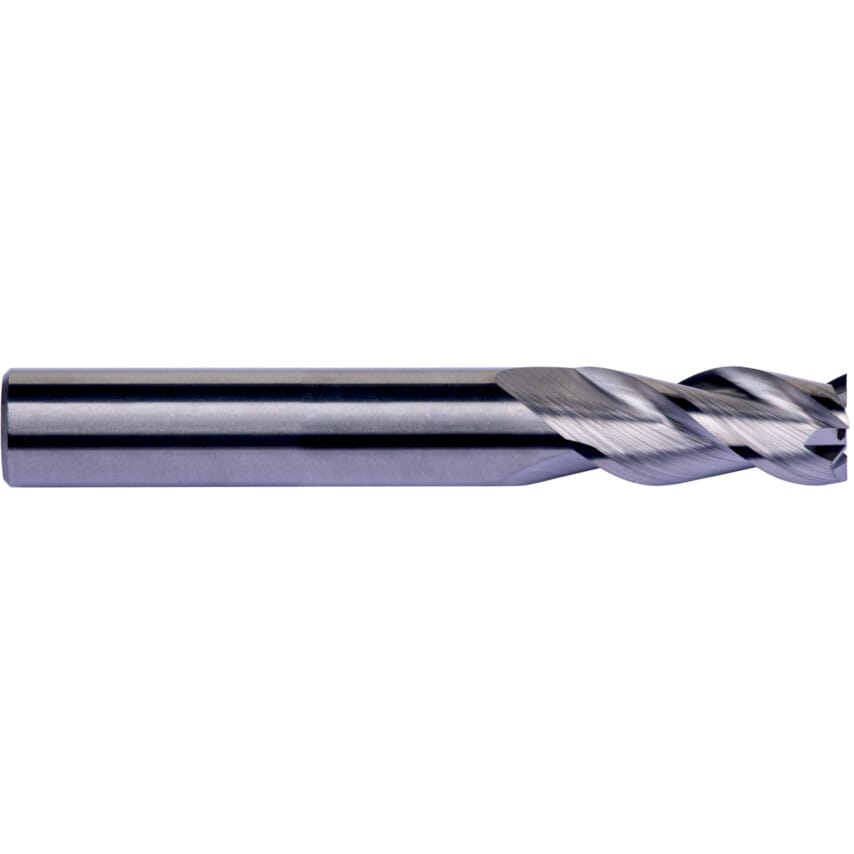

S650 2.50mm Carbide STD 3FL End Mill Unequal Pitch - Aluminium

Introducing the Dormer Short Series End Mill, a versatile machining solution tailored for precision work in non-ferrous metals. This solid carbide end mill, featuring 3 flutes and a bright finish, stands out for its exceptional construction. The 40 helix with a differential pitch and a 13 rake angle make it well-suited for a range of applications, including shoulder milling, slot milling, and helical milling. Crafted from high-quality Micrograin Carbide, this end mill guarantees extreme hardness and wear resistance. This attribute significantly enhances tool life, especially when tackling challenging materials. The differential pitch adds an extra layer of efficiency, ensuring optimal performance across various milling tasks. Whether you're shaping shoulders, creating slots, or executing helical milling, this Dormer End Mill is designed to deliver consistent and reliable results.Features and Benefits Suited for precision and high-speed machining of aluminium parts in air frame assembly, automotive applications and die and mold, particularly for prototyping Micrograin Carbide providing extreme hardness and wear resistance providing increased tool life when machining difficult materialsTypical Application N - Non-ferrous metals (metals including alloys without an appreciable amount of iron)

Milling Cutter Type	End Mills
Product Type	End Mills
Overall Length	40mm
Series	Short
Cutter Diameter Tolerance	Short
Cutting Direction	Neutral
System of Measurement	Metric
Shank Diameter	2.5mm
Standards Met	DIN 6535
Length Type	Short
Coolant Delivery	External
MFR Part No.	S6502.5
Material	Carbide
Shank Type	Straight
Cutter Diameter	2.5mm
Finish/Coating	Bright
ISO Category	N
Number of Flutes	3
End Mill Type	End Mill
Helix Angle	40\u00b0
Cutter Style	Square End
Flute Type	Helical
Plunge Type	Centre Cutting
Flute Length	6.5mm
