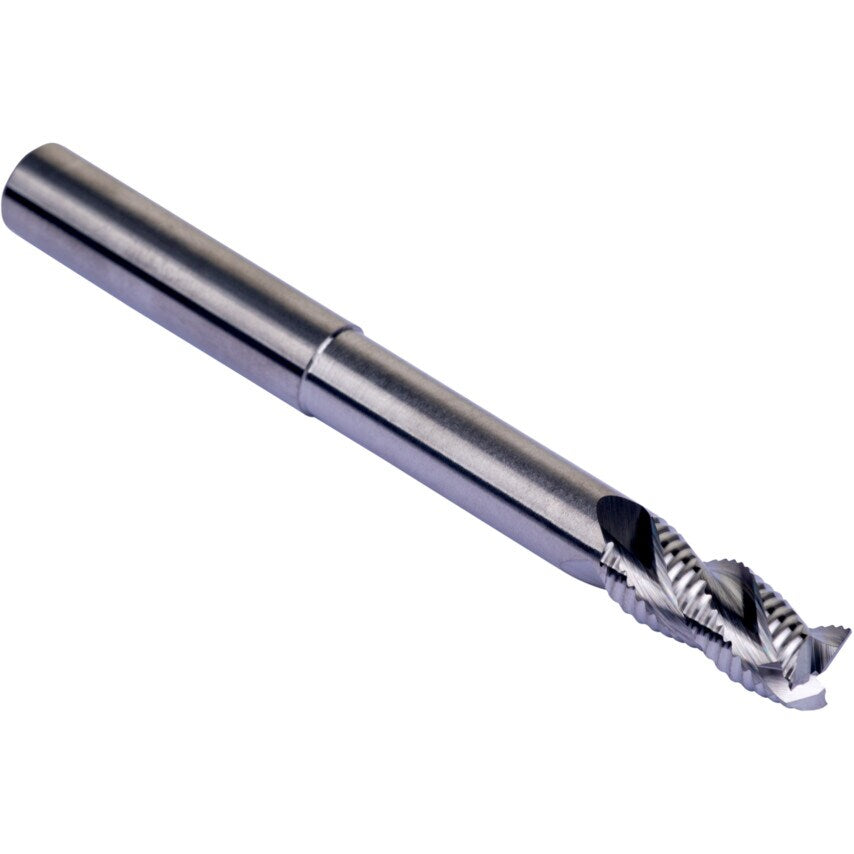

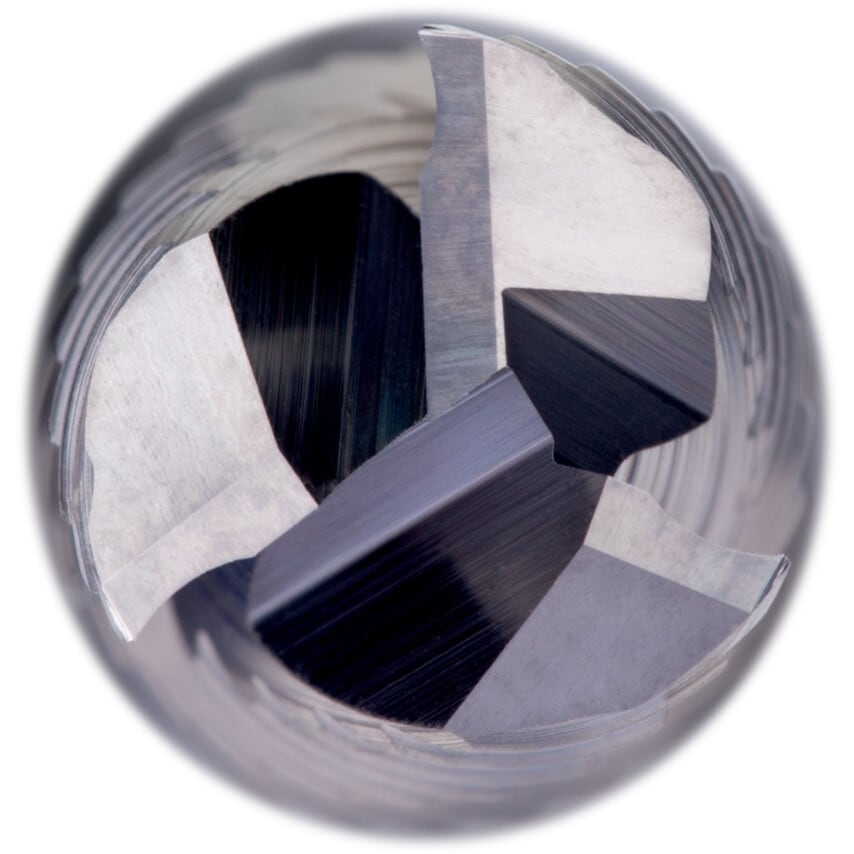

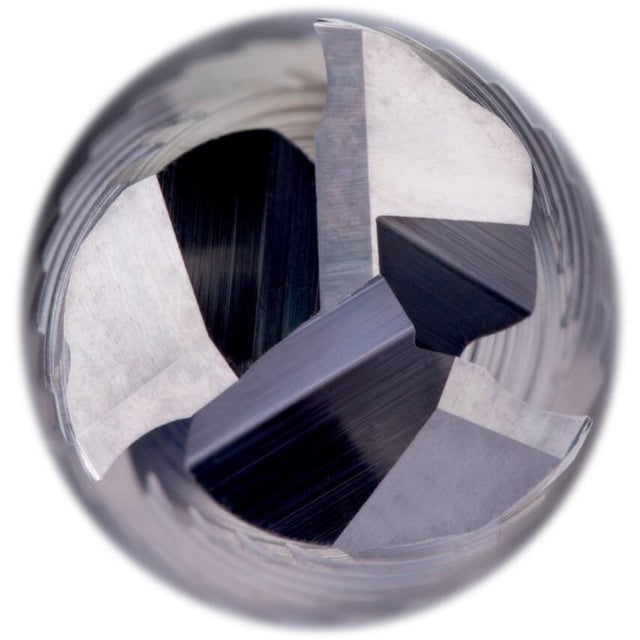

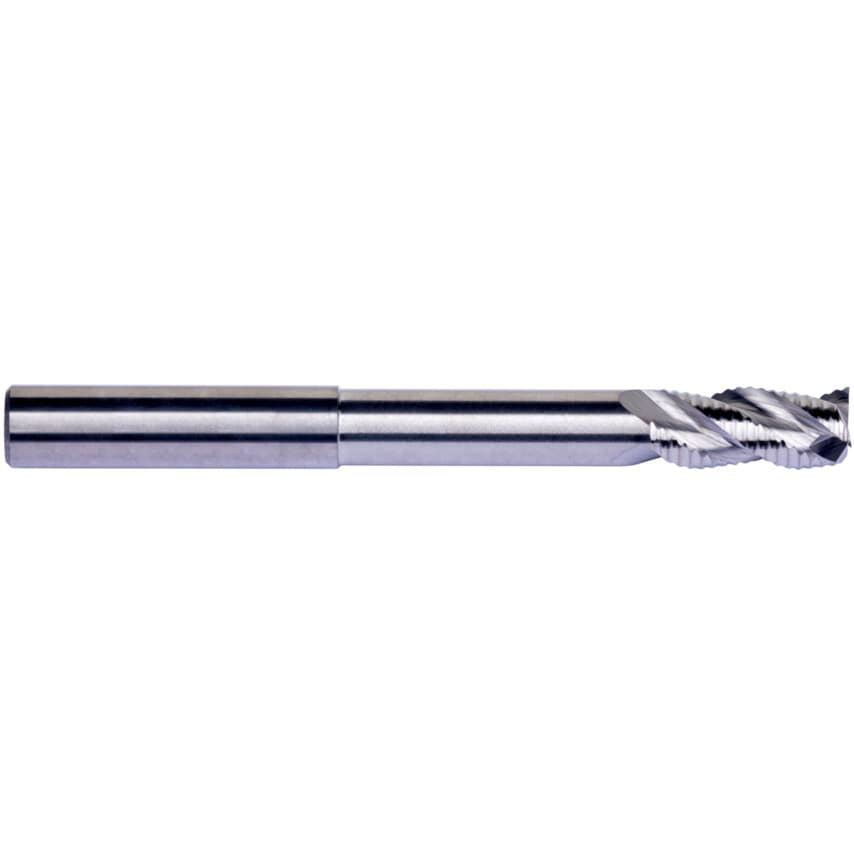

S654 20.00mm Carbide Long Rough Nra 3FL End Mill Unequal Pitch Ali

Introducing the Dormer Roughing End Mill, part of the Short Series, designed for robust machining in non-ferrous metals. This solid carbide tool features 3 flutes, a bright finish, and a 40 helix with a 15 rake angle, making it an ideal choice for shoulder milling, slot milling, and helical milling applications. Crafted from Micrograin Carbide, this roughing end mill ensures extreme hardness and wear resistance, significantly enhancing tool life when working with challenging materials. Whether you're shaping shoulders, creating slots, or executing helical milling tasks, the Dormer Roughing End Mill delivers reliable and efficient performance in non-ferrous metal machining. Elevate your machining capabilities with this high-quality tool, where Micrograin Carbide meets precision engineering, ensuring durability and extended tool life for demanding machining operations.Features and Benefits Micrograin Carbide providing extreme hardness and wear resistance providing increased tool life when machining difficult materials Suited for precision and high-speed machining of aluminium parts in air frame assembly, automotive applications and die and mold, particularly for prototyping

Milling Cutter Type	End Mills
Plunge Type	Centre Cutting
Shank Type	Straight
Length Type	Long
System of Measurement	Metric
Cutter Diameter Tolerance	Short
MFR Part No.	S65420.0
Series	Long Rough
Cutting Direction	Neutral
Cutter Style	Square End
ISO Category	N
Cutter Diameter	20mm
Corner Radius	0.2mm
Finish/Coating	Bright
Material	Carbide
Helix Angle	40\u00b0
Flute Type	Roughing
Shank Diameter	20mm
Overall Length	150mm
Standards Met	DIN 6535
Number of Flutes	3
Flute Length	40mm
End Mill Type	End Mill
Coolant Delivery	External
