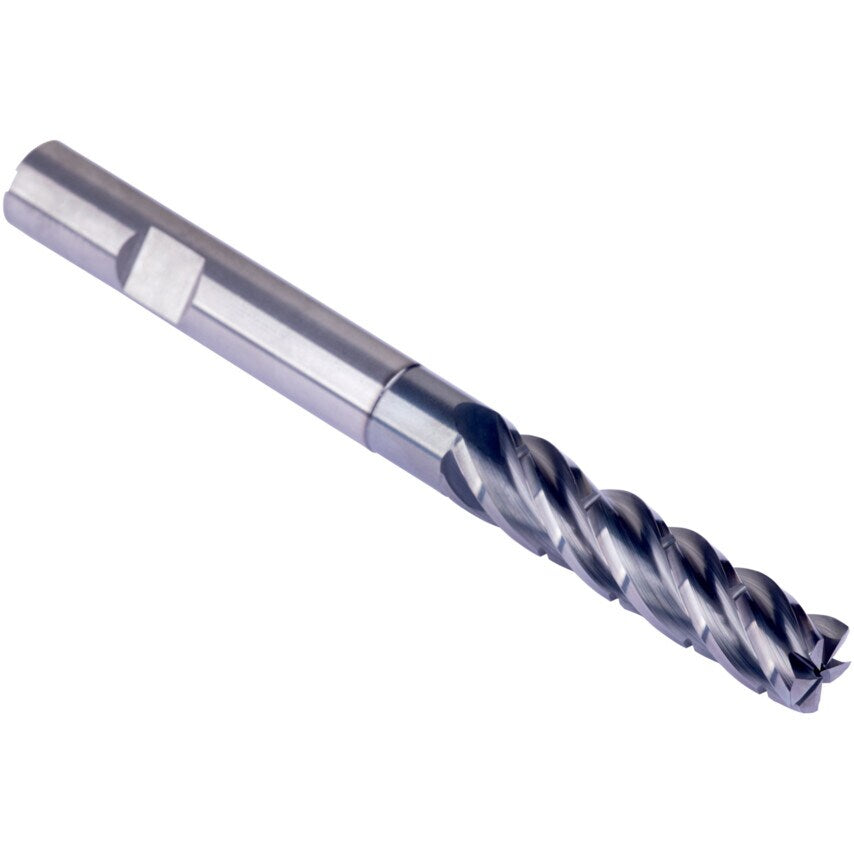

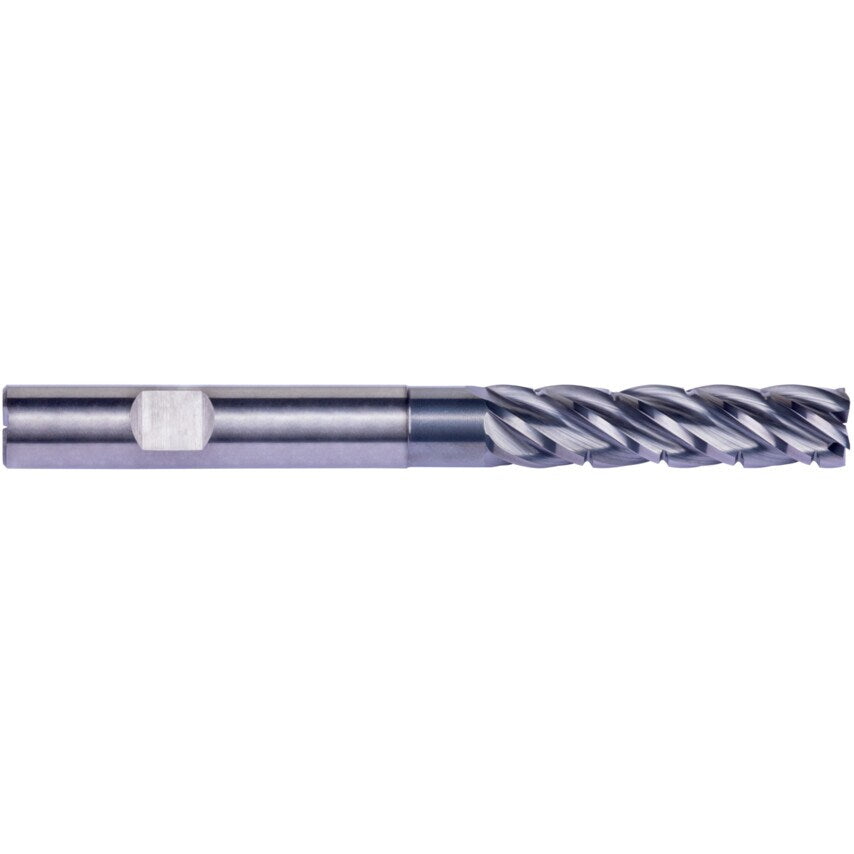

S773HB 20.00mm HM AlCrN Long 5FL Mill Uneq Helix, Chip Div, Thr Cool

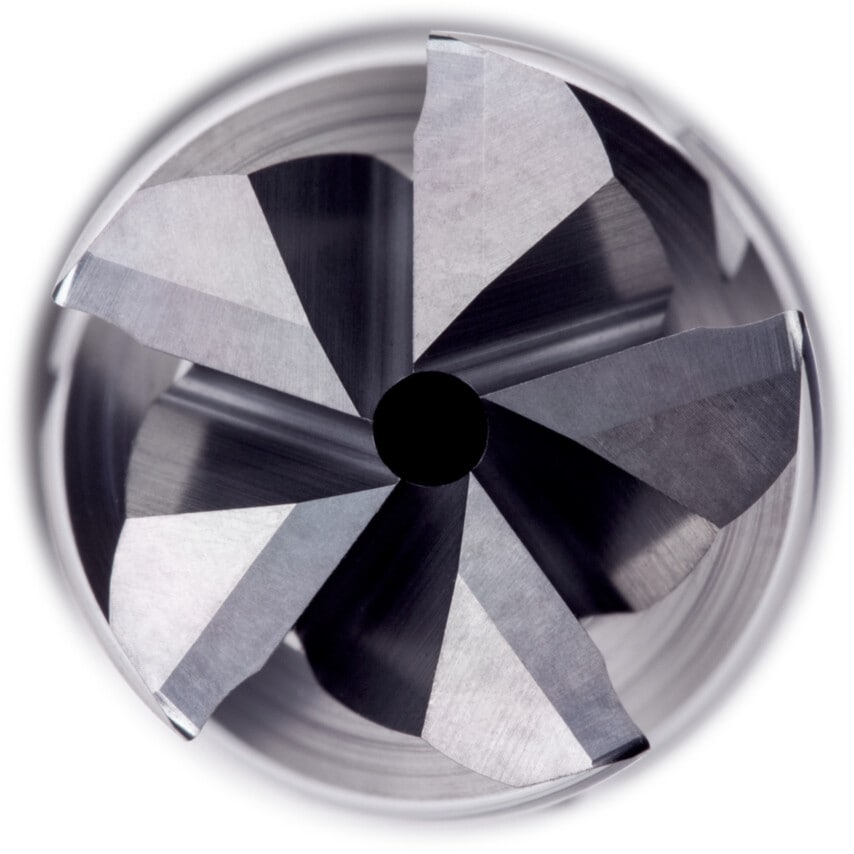

Presenting the Dormer Trochoidal End Mill, a long series powerhouse designed for precision machining in steel, cast steel, stainless steel, cast iron, and high-temperature alloys. Boasting an FS chip-divider and 5 flutes, this solid carbide tool features an unequal helix and a 10 rake angle, making it an optimal choice for shoulder milling, ramping, helical milling, and trochoidal milling applications. The AlCrN coating adds an extra layer of excellence, providing thermal stability, reducing friction, ensuring excellent wear resistance, and prolonging overall durability. Elevate your machining capabilities with this advanced Trochoidal End Mill from Dormer, engineered for efficiency and reliability in a variety of challenging materials and milling operations.Features and Benefits Micrograin Carbide providing extreme hardness and wear resistance providing increased tool life when machining difficult materialsTypical Applications K - Cast Iron (castings of iron and carbon alloys with 2% carbon content) M - Stainless steel (corrosion resistant steels with 11% chromium content) P - Steel and cast steel (steels with alloy content 10% and a hardness of 45HRC) S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)

Flute Length	67mm
ISO Category	P
Coolant Delivery	External
Finish/Coating	AlCrN
Cutter Diameter Tolerance	Long
Material Grade	HC
Corner Radius	0.3mm
Overall Length	125mm
Length Type	Long
System of Measurement	Metric
Helix Angle	1\u00b0
Flute Type	Helical
End Mill Type	End Mill
Cutter Style	Unequal
Shank Type	Weldon Flat
Cutter Diameter	20mm
MFR Part No.	S773HB20.0
Standards Met	Dormer
Cutting Direction	Neutral
Shank Diameter	20mm
Material	Carbide
Number of Flutes	5
Milling Cutter Type	End Mills
Series	Trochoidal Long
