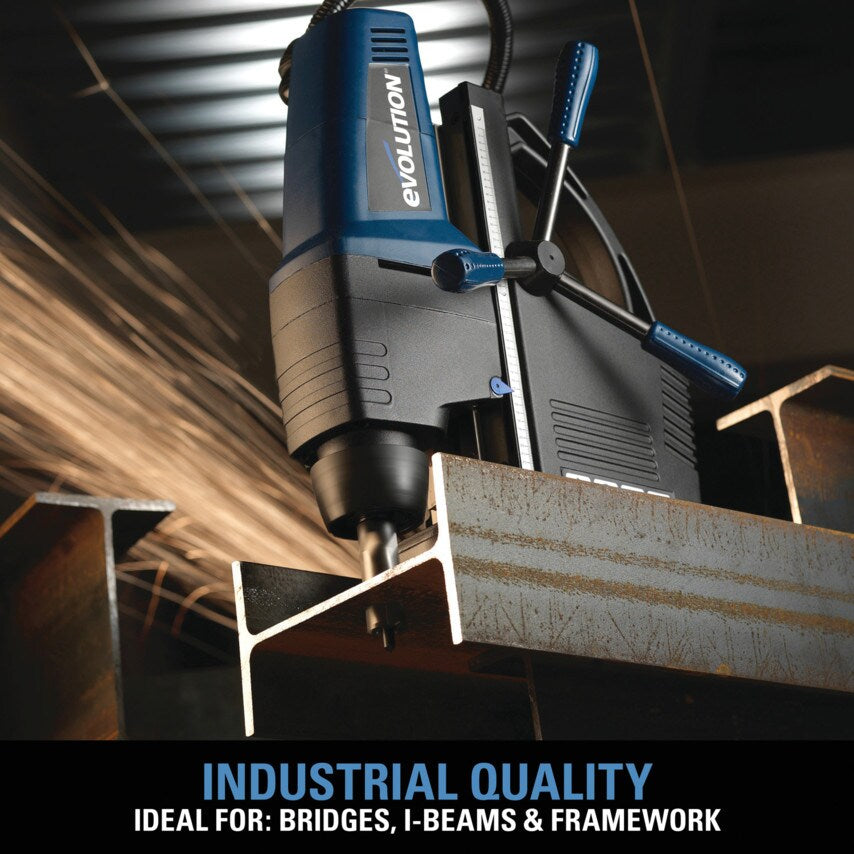

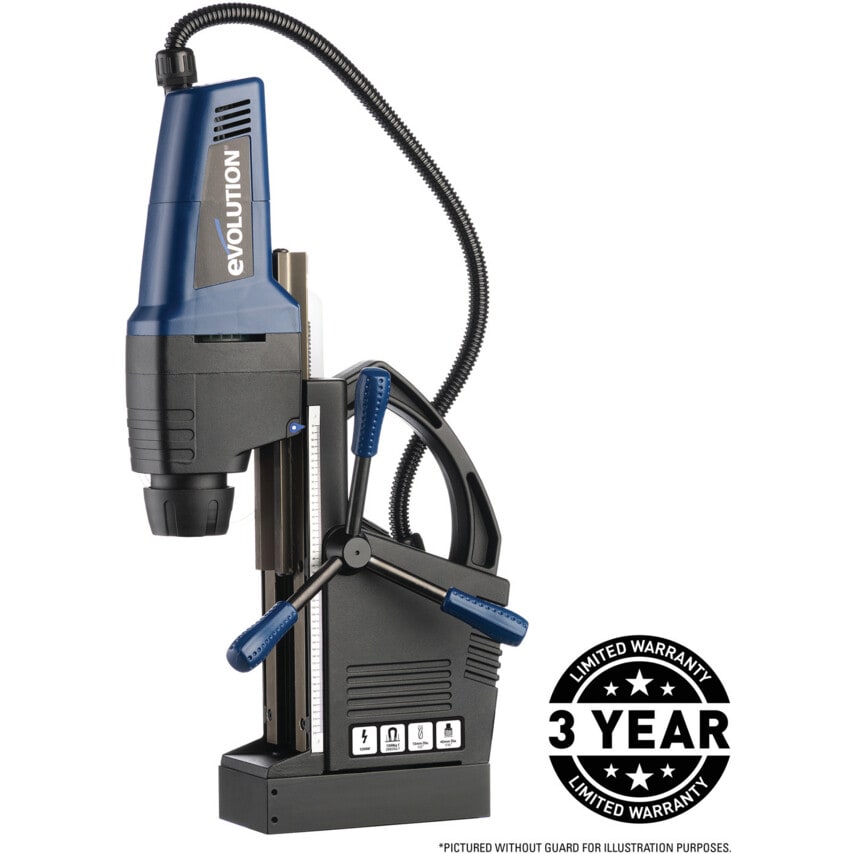

A combination of power and portability. This compact magnetic drill has ample power to deliver superior performance in heavy-duty industrial and fabrication work.
Versatile, accurate and fast; the EVOMAG42 combines strong electro-magnetic adhesion (1300kg f) and an optimised rotation speed (450rpm) to produce high quality, clean cuts.

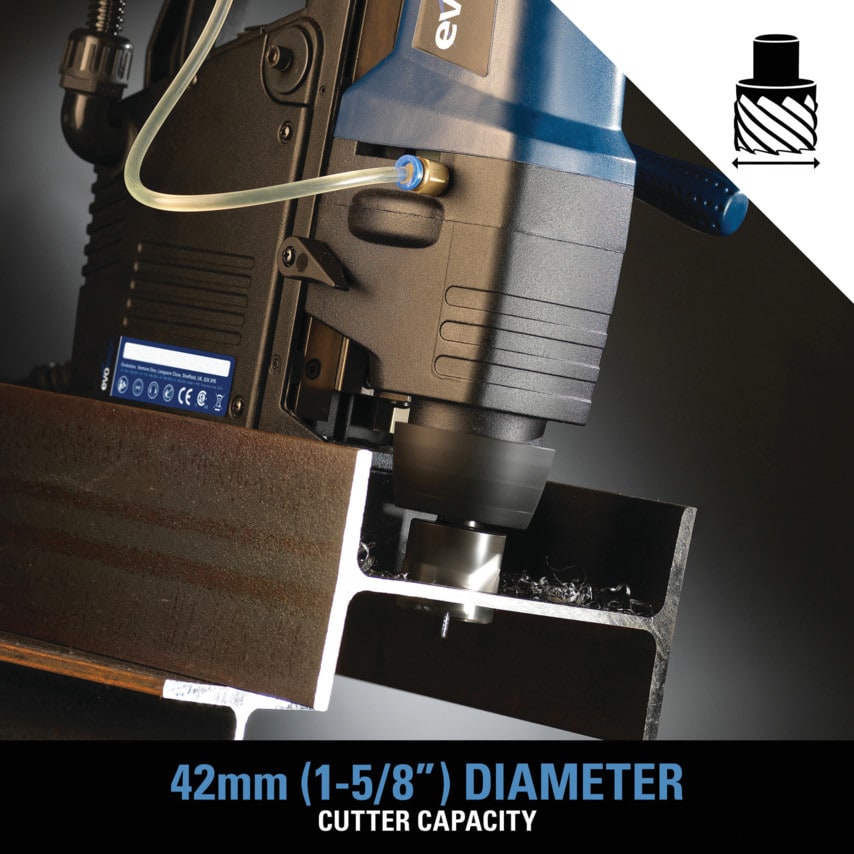

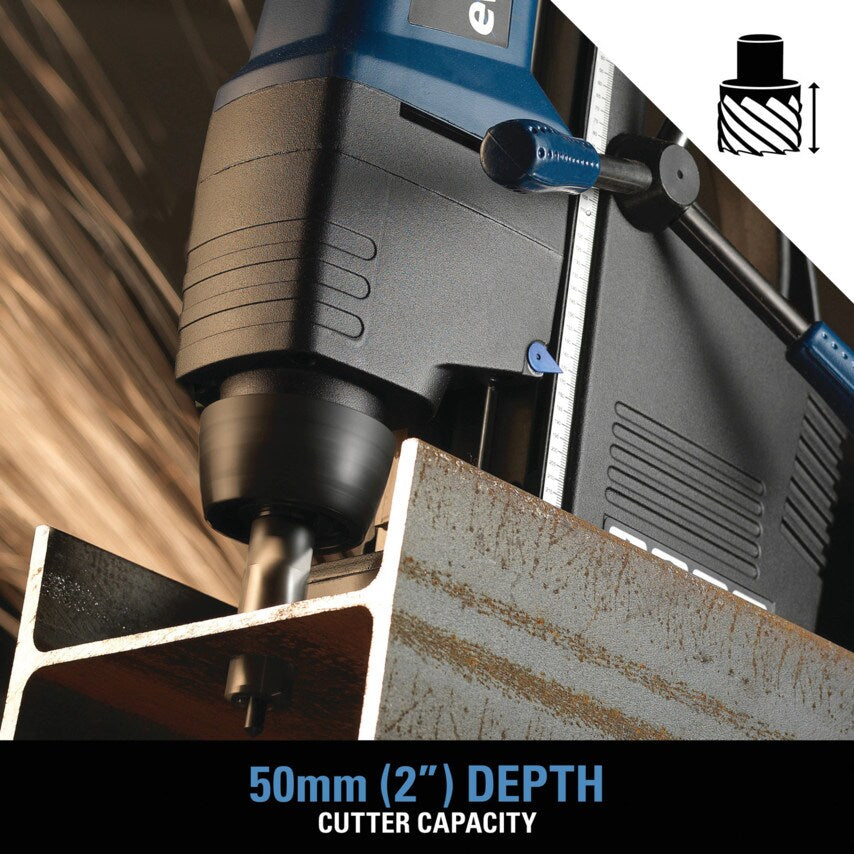

The spoke handles can be mounted on the right or left side and all popular broaching capacities between 12mm - 42mm are covered through material 50mm deep.
10mm Minimum surface thickness for magnetic adhesion.
If required, twist drills can be attached with the supplied chuck and key, and the innovative adjustable head system means twist drills can be used to full capacity.
| Power | 1200W |
| Power Source | Electric |
| Drilling Capacity | Up to 13mm |
| Application | Broaching | Countersinking | Drilling |
| Power Input | 1200W |
| Width | 222mm |
| Clamping Force | 12748N |
| MFR Part No. | 095-0002 |
| Overall Height | Min. 420- Max. 654mm |
| Cutter Capacity | 12 to 42mm |
| Height | Min. 420- Max. 654mm |
| Stroke | 234mm |
| Model Number | EVO 42 |
| Product Type | Magnetic Drill |
| Voltage | 110V |
| No Load Speed | 450rpm |
| Overall Width | 222mm |
| Item | Corded Magnetic Drill |
| Includes | 3x Feed Handles | Carry Case | Coolant Tank System | Hex Key 2 |
| Magnetic Base Size | 40 x 90 x 180mm |
| Weight | 12kg |
