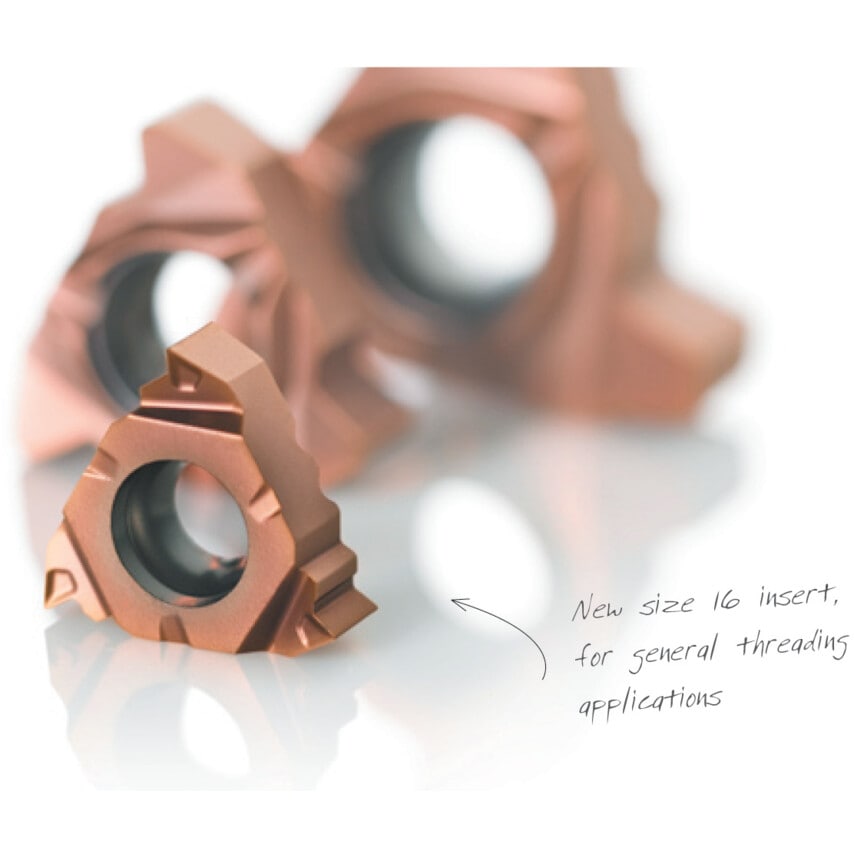

CoroThread 266RL Unified (UN) Internal Threading Inserts Grade 1125
Insert Grade 1125
(K15)(M20)(N20)(P20)(S20)
PVD (Ti,Cr,Al)N+(Ti,Al)N Coated grade for use on cast iron, stainless steel, non ferrous metals, steel and heat resistant materials.
| Insert Size | 16 |
| Number of Cutting Points | 3 |
| Thickness | 3.96mm |
| Manufacturer Grade | GC1125 |
| Insert Length | 16mm |
| Cutting Direction | Right Hand |
| Finish/Coating | TiAlN |
| ISO Category Grade | K | M | N | P | S |
| Thread Standard | UN |
| Inscribed Circle | 9.525 |
| Thread Profile Type | Full Profile |
| Threading Location | Internal |
| Material | Carbide |
| Teeth per Inch | 20TPI |
| ISO Designation | 266RL-16UN01A200M |
| Thread Height Difference | 0.07mm |
| Insert Type | Laydown |
| ISO Cut | K15 | M20 | N20 | P20 | S20 |
