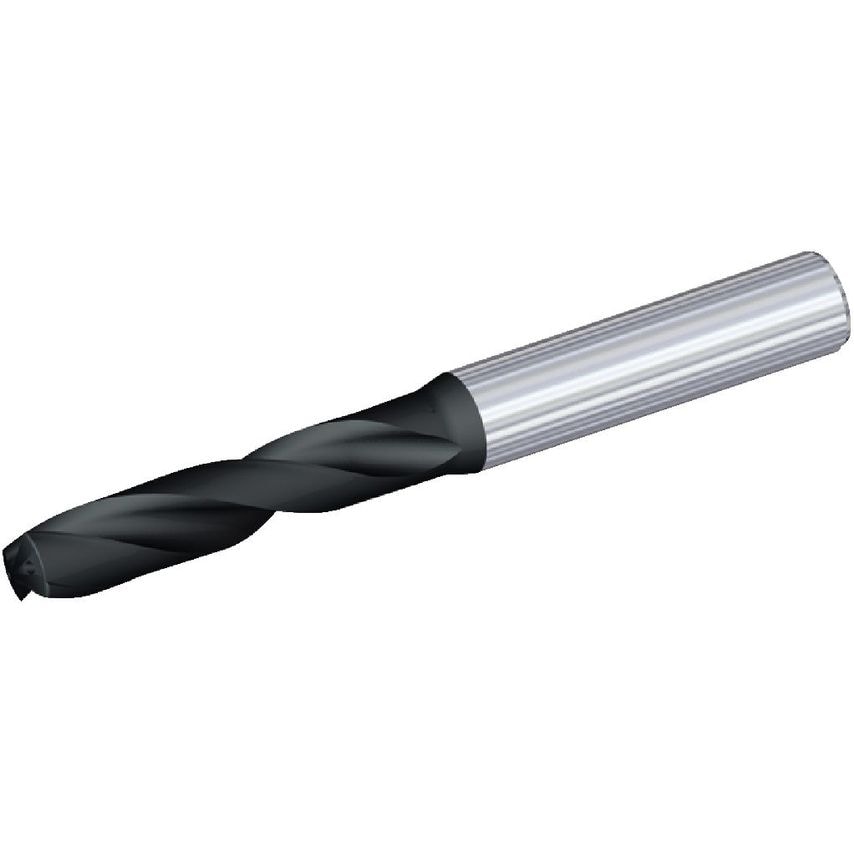

Y-TECH Drills Difficult-to-Machine Materials Through CoolantHigh-Performance Solid Carbide Drills
| MFR Part No. | 3640748 |
| Coolant Delivery | Concentric Axial Coolant;Off-center Axial Coolant |
| Primary Material | Stainless Steel |
| Shank Length | 36.0000mm |
| Adapter Type | Cylindrical |
| Assembly Length | 45.023mm |
| Drill Depth | 35mm | 35.0000mm |
| Flute Construction | Helical Flute |
| Flute Length | 44mm | 44.0000mm |
| Adapter / Shank / Bore Diameter | 6.0000mm |
| Helix Type | Right Hand Helix/Flute |
| Functional Length | 81.0230mm |
| Adapter Style | Straight-Cylindrical |
| Finish/Coating | AlTiN |
| Drill Diameter Tolerance | 0.004000 to 0.016000mm |
| Hand Preference | Right |
| Overall Length | 82mm | 82.0000mm |
| Clamping Length | 36mm |
| Drill Point | 0.977mm |
| Number of Flutes | 2 |
| Material | Carbide |
| Helix Angle | 25.865 |
| Unit Measured | Metric |
| Coolant Supplied | Yes |
| Drill Diameter | 5.0000mm |
