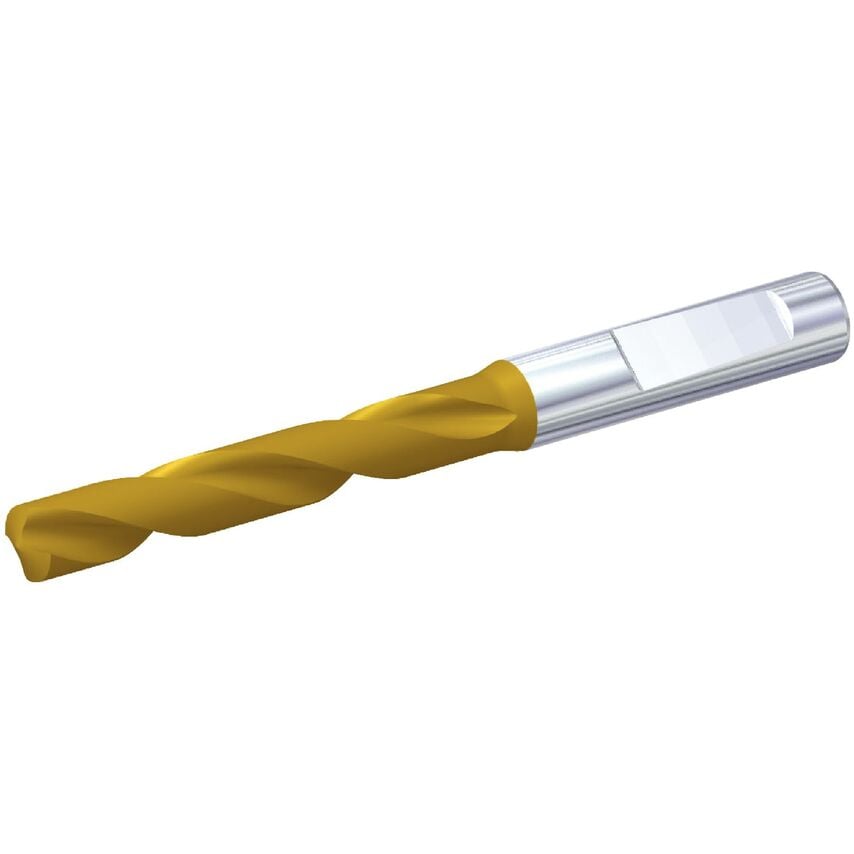

GOdrill Wide Range of MaterialsSolid Carbide Drills

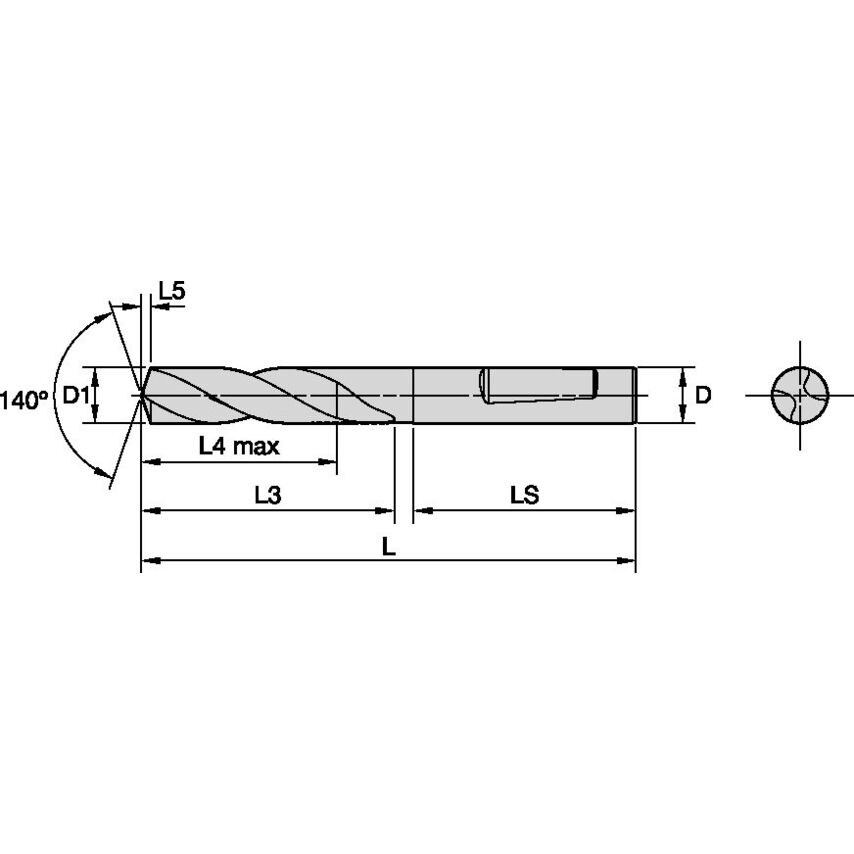

| Unit Measured | Metric |
| Helix Type | Right Hand Helix/Flute |
| Flute Length | 20mm | 20.0000mm |
| Drill Diameter Tolerance | -0.014000 to 0.000000mm |
| Flute Construction | Helical Flute |
| Overall Length | 62mm | 62.0000mm |
| MFR Part No. | 4150515 |
| Shank Length | 36.0000mm |
| Hand Preference | Right |
| Clamping Length | 36mm |
| Assembly Length | 25.516mm |
| Adapter / Shank / Bore Diameter | 6.0000mm |
| Drill Depth | 14mm | 14.0000mm |
| Material | Carbide |
| Helix Angle | 27.122 |
| Adapter Type | Cylindrical |
| Drill Point | 0.48mm |
| Drill Diameter | 3.0000mm |
| Adapter Style | Whistle Notch 2 CylindricalEnd |
| Coolant Supplied | No |
| Number of Flutes | 2 |
| Primary Material | Steel |
| Finish/Coating | TiN |
| Functional Length | 61.5200mm |
