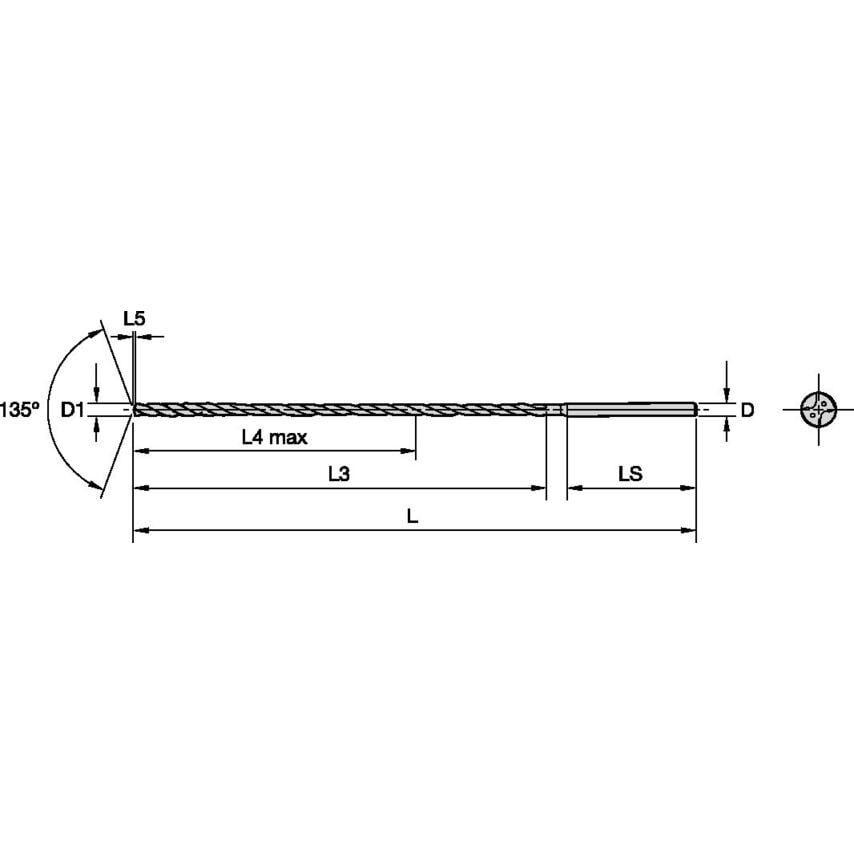

Beyond SC Deep-Hole Drills Multiple Materials Through CoolantHigh-Performance Solid Carbide Drills
| Flute Length | 212mm | 212.0000mm |
| Finish/Coating | Uncoated |
| Functional Length | 248.0770mm |
| Adapter Style | Straight-Cylindrical |
| Assembly Length | 234.577mm |
| MFR Part No. | 6349041 |
| Unit Measured | Metric |
| Helix Type | Right Hand Helix/Flute |
| Helix Angle | 29.997 |
| Shank Length | 34.0000mm |
| Adapter / Shank / Bore Diameter | 5.0000mm |
| Drill Depth | 200mm | 200.0000mm |
| Coolant Diameter | 0.4900mm (0.0567in) |
| Material | Carbide |
| Hand Preference | Right |
| Overall Length | 249mm | 249.0000mm |
| Drill Point | 0.923mm |
| Coolant Supplied | Yes |
| Drill Diameter | 5.0000mm |
| Adapter Type | Cylindrical |
| Primary Material | Non-Ferrous Materials |
| Flute Construction | Helical Flute |
| Drill Diameter Tolerance | -0.012000 to 0.000000mm |
| Number of Flutes | 2 |
