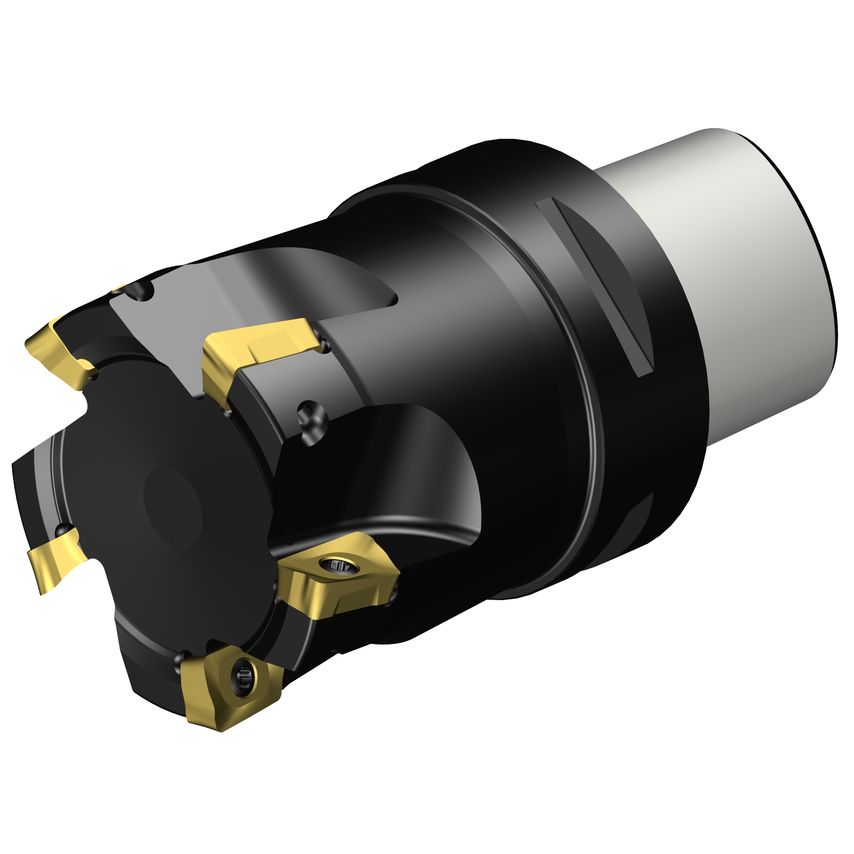

Product Range: CoroMill 390Tool Type: Shoulder millingVersatile shoulder milling cutters with ramping capability for mixed productionFeatures & Benefits- First choice for flexible shoulder milling- 2 cutting edges- Ramping capabilities- Large radius assortment- Internal coolant- Close tolerances giving excellent surface finish and minimal mismatch- Large depth of cut and steep ramping capability- Oversized diameter for clearance is available
| Body Material | Steel |
| Maximum Cutting Depth | 15.4mm |
| CoroPak | 2.2 |
| Connection Diameter | 63mm |
| Weight | 1.81kg |
| Tool Cutting Edge Angle | 90\u00b0 |
| Rotational Speed Maximum | 6700 1/min |
| Maximum Ramping Angle | 3.7\u00b0 |
| Functional Diameter | 44mm |
| Functional Length | 80mm |
| Damping Property | No |
| Cutting Diameter | 66mm |
| Through Hole Function Property | Yes |
| MFR Part No. | 11502595 |
| Unit Measured | Metric |
| Standards Met | ISO26623-1 |
| Hand Preference | Right |
| Max. Depth of Cut | 15.4mm |
