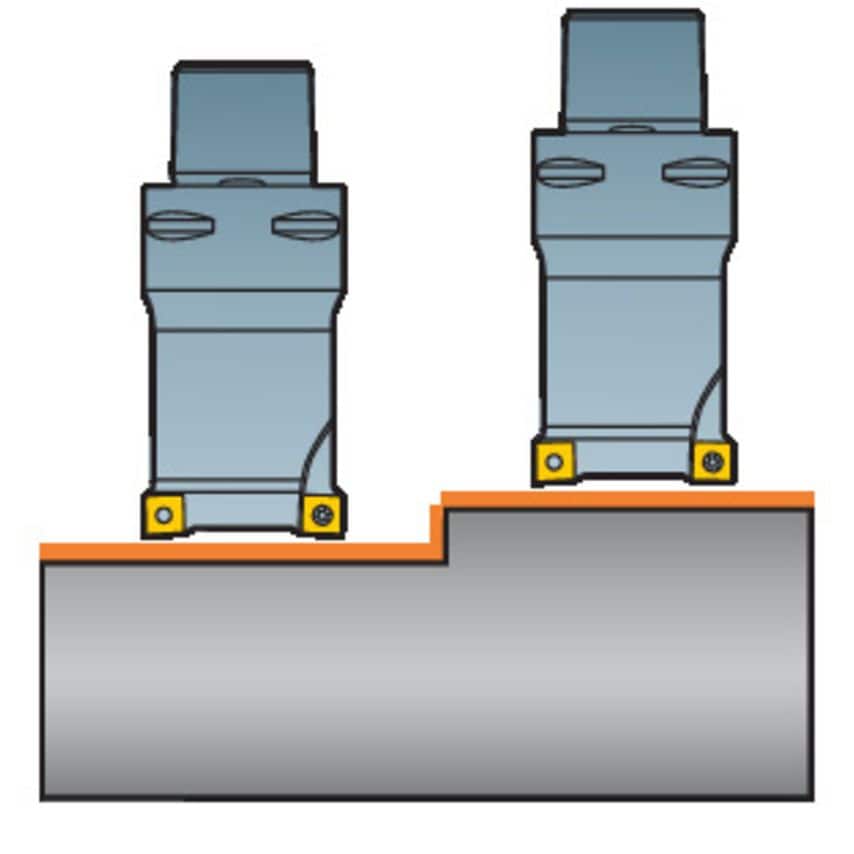

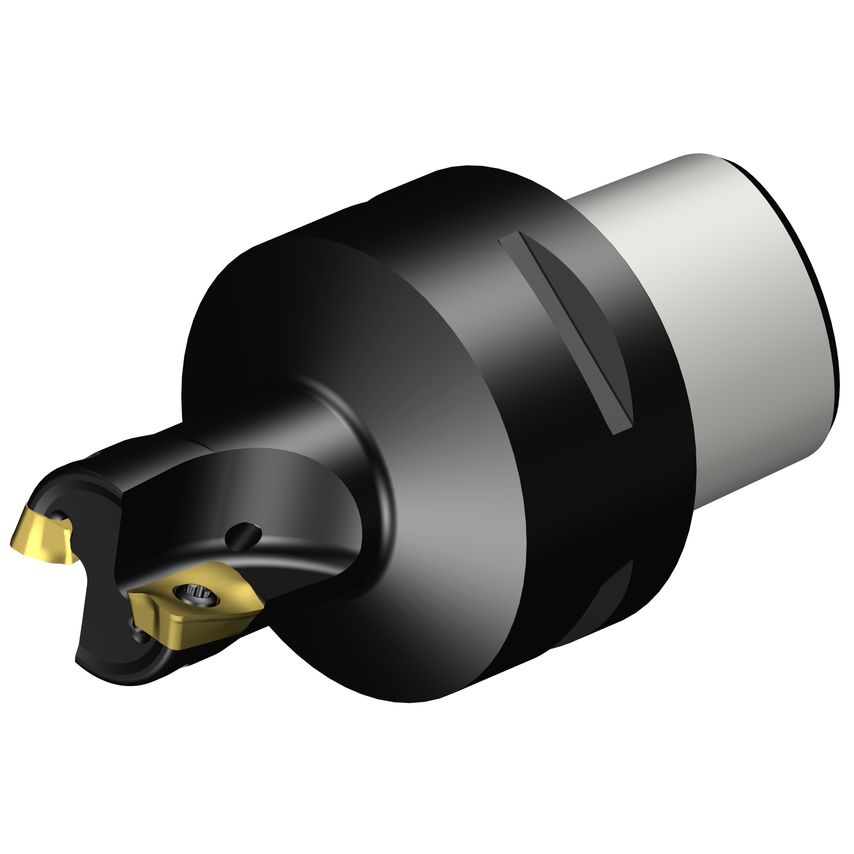

Product Range: CoroMill 390Tool Type: Shoulder millingVersatile shoulder milling cutters with ramping capability for mixed productionFeatures & Benefits- First choice for flexible shoulder milling- 2 cutting edges- Ramping capabilities- Large radius assortment- Internal coolant- Close tolerances giving excellent surface finish and minimal mismatch- Large depth of cut and steep ramping capability- Oversized diameter for clearance is available
| Damping Property | No |
| CoroPak | 99.1 |
| Maximum Cutting Depth | 10mm |
| Rotational Speed Maximum | 34600 1/min |
| Body Material | Steel |

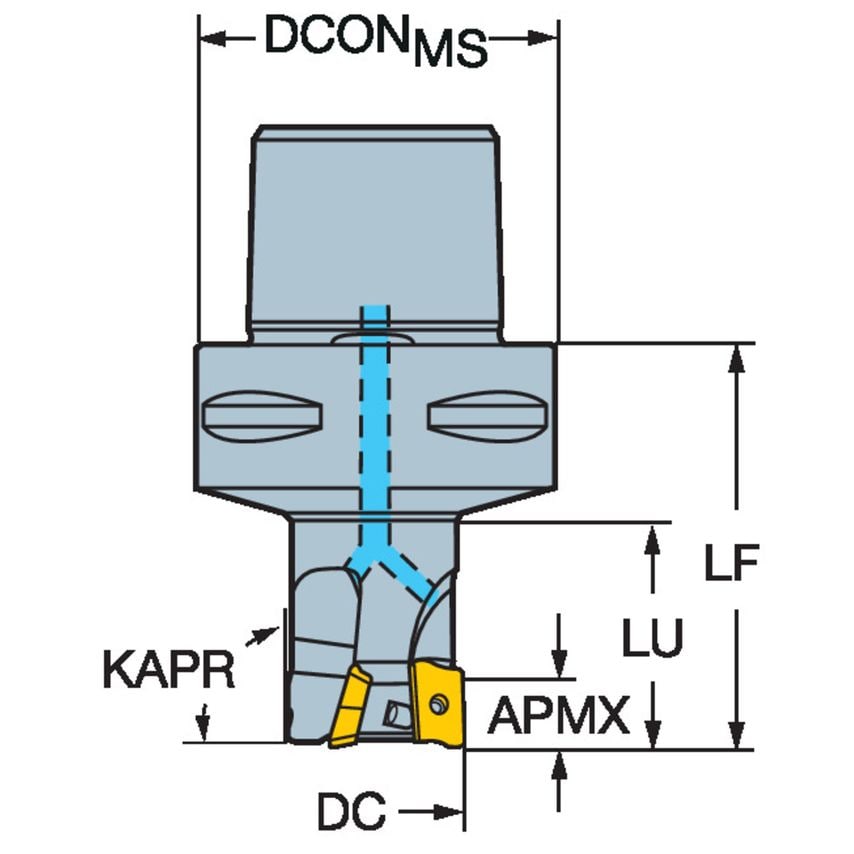

| Connection Diameter | 40mm |
| Functional Diameter | 28mm |
| Cutting Diameter | 20mm |
| Maximum Ramping Angle | 5.5\u00b0 |
| Through Hole Function Property | Yes |
| MFR Part No. | 11104575 |
| Standards Met | ISO26623-1 |
| Hand Preference | Right |
| Usable Length | 25mm |
| Weight | 0.3kg |
| Maximum Plunge Depth | 1mm |
| Tool Cutting Edge Angle | 90\u00b0 |
| Functional Length | 50mm |
| Unit Measured | Metric |
| Max. Depth of Cut | 10mm |
