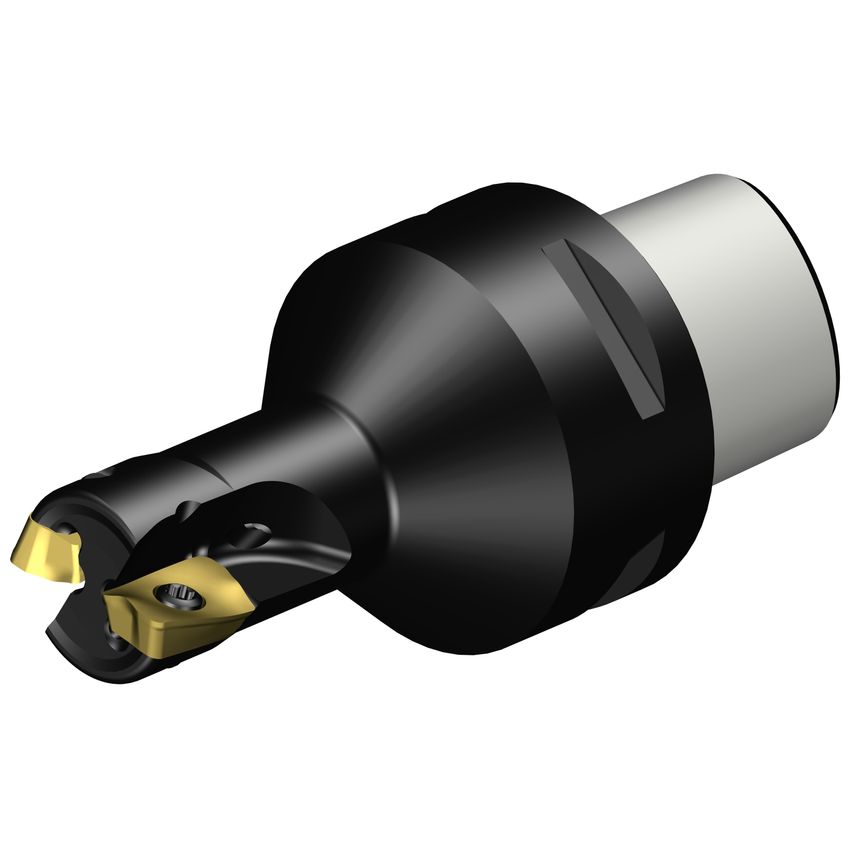

Product Range: CoroMill 390Tool Type: Shoulder millingVersatile shoulder milling cutters with ramping capability for mixed productionFeatures & Benefits- First choice for flexible shoulder milling- 2 cutting edges- Ramping capabilities- Large radius assortment- Internal coolant- Close tolerances giving excellent surface finish and minimal mismatch- Large depth of cut and steep ramping capability- Oversized diameter for clearance is available
| Unit Measured | Metric |
| Damping Property | No |
| Max. Depth of Cut | 10mm |
| Hand Preference | Right |
| Rotational Speed Maximum | 39000 1/min |
| Standards Met | ISO26623-1 |
| Body Material | Steel |
| Weight | 0.17kg |
| Maximum Ramping Angle | 10.5\u00b0 |
| Through Hole Function Property | Yes |
| Maximum Plunge Depth | 1mm |
| Usable Length | 25mm |
| MFR Part No. | 11880061 |
| Functional Diameter | 22mm |
| Functional Length | 50mm |
| CoroPak | 4.2 |
| Connection Diameter | 32mm |
| Maximum Cutting Depth | 10mm |
| Cutting Diameter | 16mm |
| Tool Cutting Edge Angle | 90\u00b0 |
