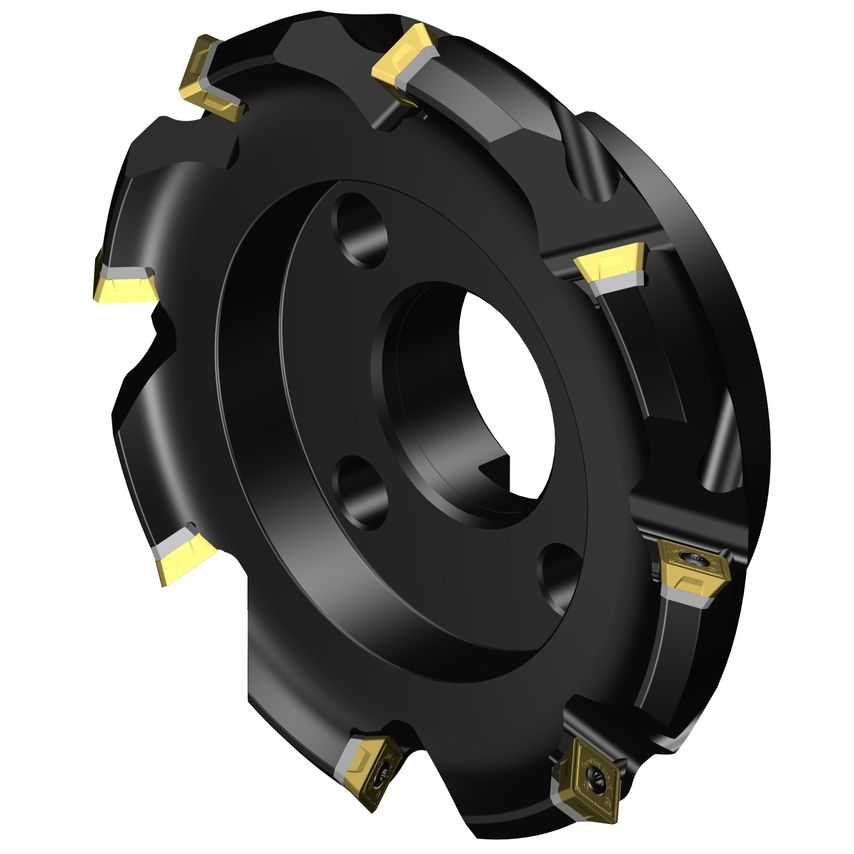

Tool type: Face millingLight-cutting face mill for heavy roughing and mirror finishing. Milling cutters for high metal removal and mirror finish. The cutter is designed with enhanced corners to reduce burr formation and frittering of the component.Features & Benefits- First choice for mixed production- 4 cutting edges- Shim for extra security- True 45 degrees- Close tolerance combined with the wiper insert for superior surface finish- Wide range of grades and geometries including ceramic and CBN grades- Multipurpose tool. Face milling, boring possibilities, ramping and plunge millingApplicationFace milling applications in all types of materials
| Tool Cutting Edge Angle | 45\u00b0 |
| Maximum Cutting Depth | 10mm |
| Maximum Cutting Diameter | 218.8mm |
| Functional Length | 63mm |
| Coolant Entry Style | Without Coolant |
| Through Hole Function Property | Yes |
| MFR Part No. | 11766812 |
| Weight | 7.17kg |
| Standards Met | ISO6462 |
| Maximum Ramping Angle | 0\u00b0 |
| Connection Diameter | 60mm |
| Hand Preference | Right |
| Body Material | Steel |
| Unit Measured | Metric |
| CoroPak | 4.1 |
| Damping Property | No |
| Rotational Speed Maximum | 3800 1/min |
| Cutting Diameter | 200mm |
| Max. Depth of Cut | 10mm |
