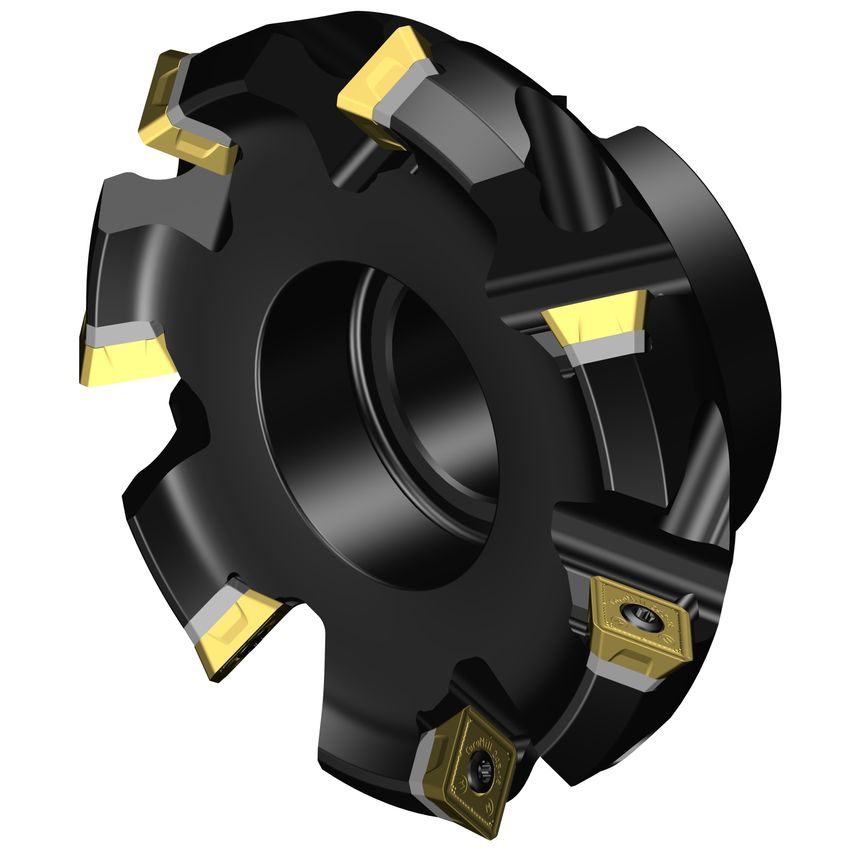

Tool type: Face millingLight-cutting face mill for heavy roughing and mirror finishing. Milling cutters for high metal removal and mirror finish. The cutter is designed with enhanced corners to reduce burr formation and frittering of the component.Features & Benefits- First choice for mixed production- 4 cutting edges- Shim for extra security- True 45 degrees- Close tolerance combined with the wiper insert for superior surface finish- Wide range of grades and geometries including ceramic and CBN grades- Multipurpose tool. Face milling, boring possibilities, ramping and plunge millingApplicationFace milling applications in all types of materials
| Tool Cutting Edge Angle | 45\u00b0 |
| Maximum Cutting Depth | 10mm |
| Weight | 3.06kg |
| Maximum Ramping Angle | 0\u00b0 |
| Cutting Diameter | 125mm |
| Through Hole Function Property | Yes |
| Maximum Cutting Diameter | 138.8mm |
| Unit Measured | Metric |
| Max. Depth of Cut | 10mm |
| Rotational Speed Maximum | 4900 1/min |
| CoroPak | 4.1 |
| Coolant Entry Style | Without Coolant |
| Functional Length | 63mm |
| Hand Preference | Right |
| Standards Met | ISO6462 |
| Body Material | Steel |
| Damping Property | No |
| MFR Part No. | 11766786 |
| Connection Diameter | 40mm |
