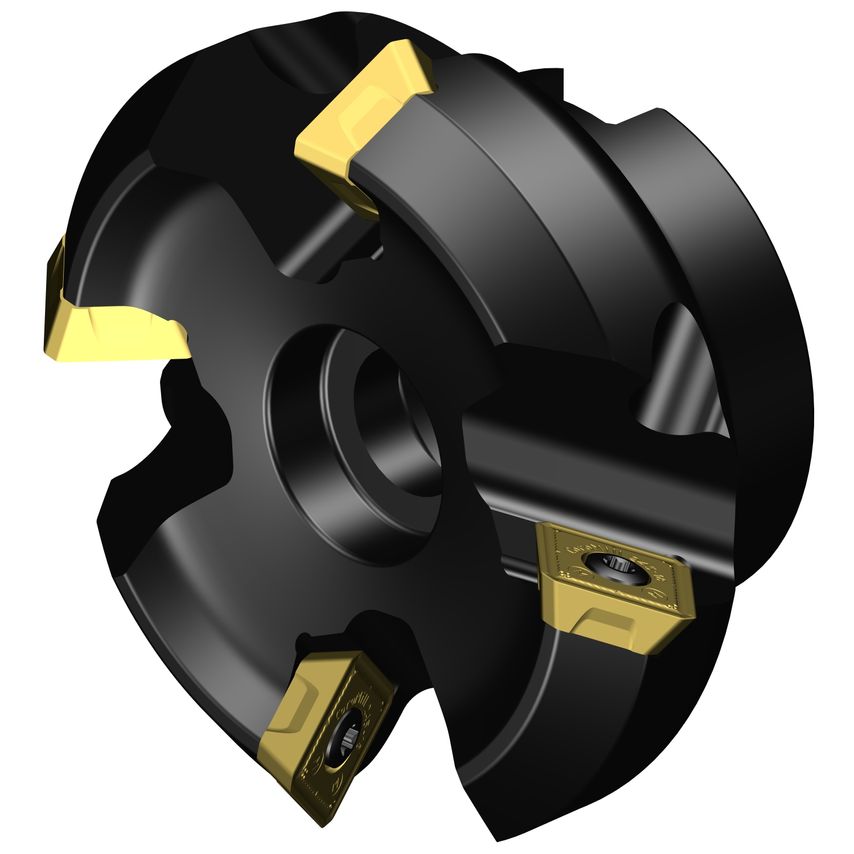

Tool type: Face millingLight-cutting face mill for heavy roughing and mirror finishing. Milling cutters for high metal removal and mirror finish. The cutter is designed with enhanced corners to reduce burr formation and frittering of the component.Features & Benefits- First choice for mixed production- 4 cutting edges- Shim for extra security- True 45 degrees- Close tolerance combined with the wiper insert for superior surface finish- Wide range of grades and geometries including ceramic and CBN grades- Multipurpose tool. Face milling, boring possibilities, ramping and plunge millingApplicationFace milling applications in all types of materials
| Connection Diameter | 32mm |
| Maximum Cutting Diameter | 98.8mm |
| Maximum Cutting Depth | 10mm |
| Cutting Diameter | 80mm |
| Coolant Entry Style | Without Coolant |
| CoroPak | 4.1 |
| Tool Cutting Edge Angle | 45\u00b0 |
| Unit Measured | Metric |
| Max. Depth of Cut | 10mm |
| Rotational Speed Maximum | 6100 1/min |
| Body Material | Steel |
| MFR Part No. | 11766731 |
| Hand Preference | Right |
| Weight | 1.2kg |
| Through Hole Function Property | Yes |
| Functional Length | 50mm |
| Standards Met | ISO6462 |
| Damping Property | No |
| Maximum Ramping Angle | 0\u00b0 |
