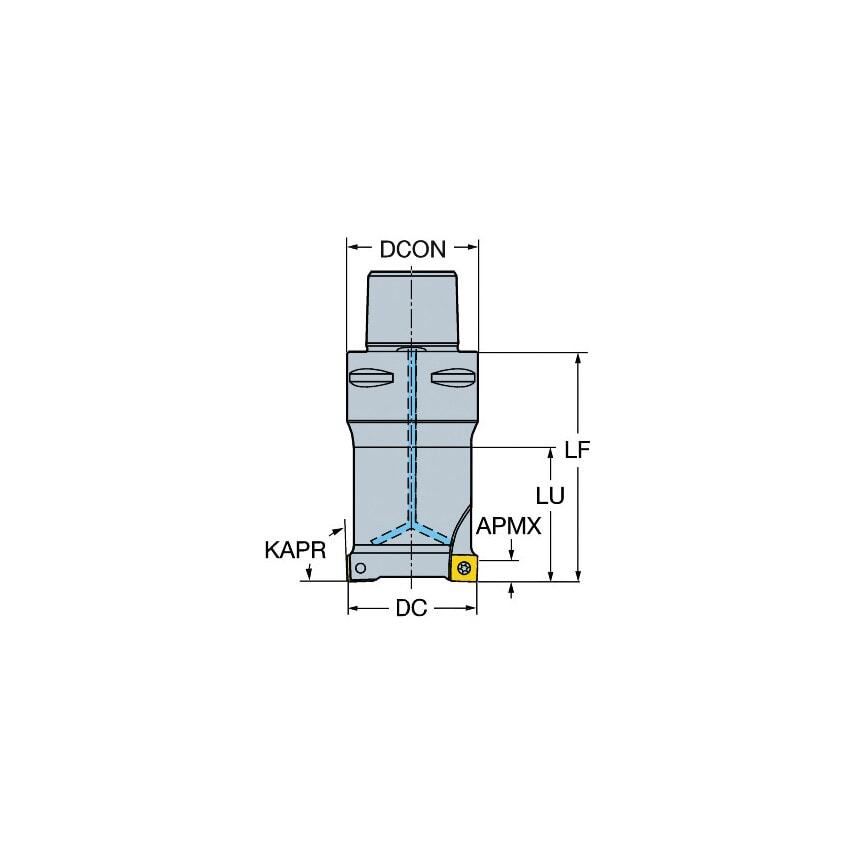

Product Range: CoroMill 490Tool Type: Shoulder millingFeatures & Benefits- First choice for general and repeated shoulder milling- 4 cutting edges- Shim for extra security- Internal coolant- True 90 cuts without sharp steps- Sharp edge lines and burr-free, smooth profiles, which also efficiently reduces the need for a finishing operation- The light cutting performance provides an excellent surface finish and optimal utilization of low-powered machine tools. This also facilitates use of the cutter on extended tool assembliesApplicationGeneral and repeated shoulder milling, Face milling, Edging, Plunge milling, Slot milling, Roughing to finishing
| Hand Preference | Right |
| Weight | 1.25kg |
| Functional Length | 50mm |
| Rotational Speed Maximum | 20000 1/min |
| Cutting Diameter | 124mm |
| Tool Cutting Edge Angle | 90\u00b0 |
| Functional Diameter | 44mm |
| Unit Measured | Metric |
| Usable Length | 23mm |
| CoroPak | 92 |
| Body Material | Steel |
| Connection Diameter | 9mm |
| Maximum Ramping Angle | 0\u00b0 |
| Through Hole Function Property | Yes |
| MFR Part No. | 12309231 |
| Damping Property | No |
| Standards Met | ISO26623-1 |
| Maximum Cutting Depth | 5.5mm |
| Max. Depth of Cut | 5.5mm |
