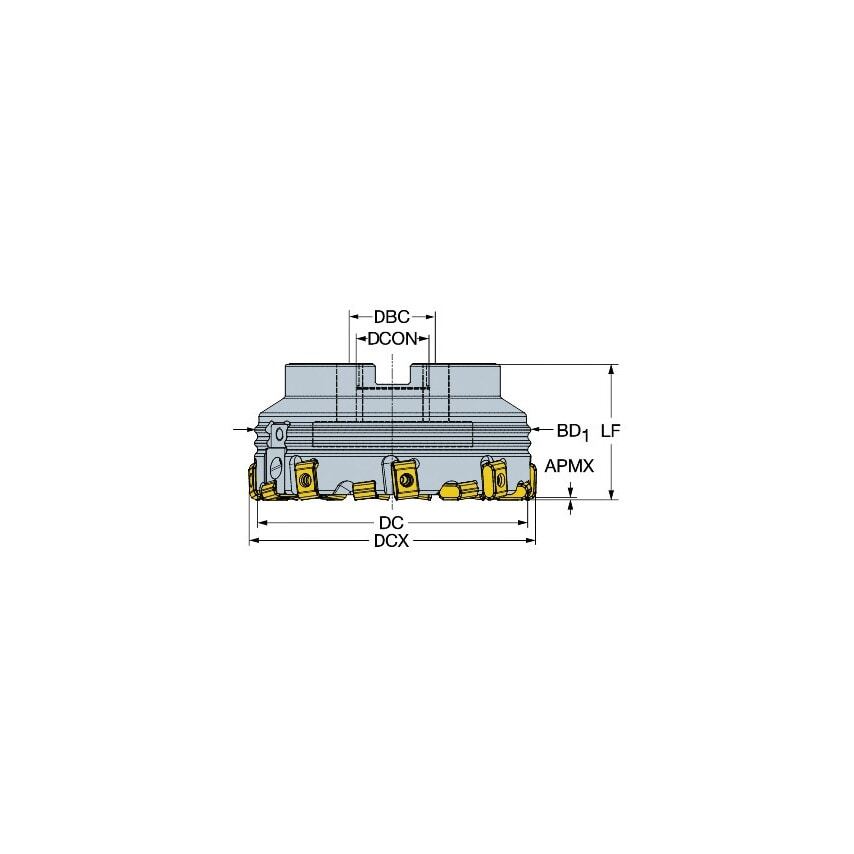

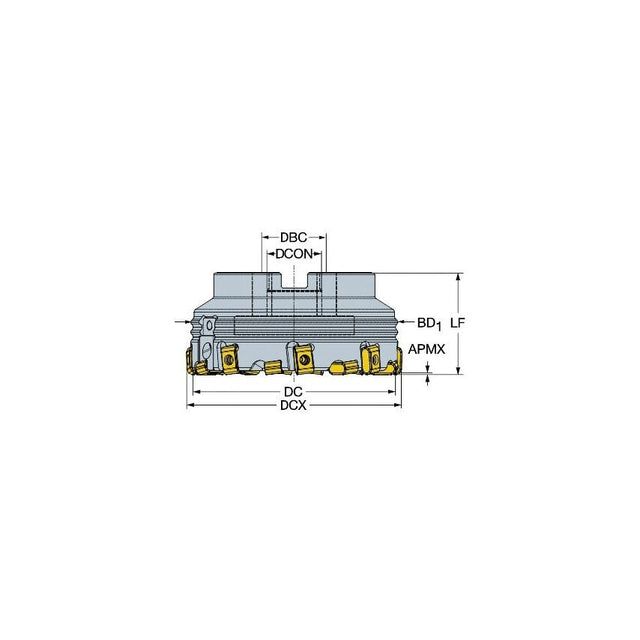

Product Range: CoroMill 425CoroMill 425 is a new finishing concept for cast iron face milling, specifically designed for the automotive business. The accurate and reliable adjustment system makes CoroMill 425 the easiest to use system on the market. It has eight cutting edges, and the same multi-edge inserts are used both as working inserts and as wiper inserts, mounted in the same position.Features & Benefits- First choice for finishing in cast iron- 8 cutting edges- High precision adjustment system for wiper insertsApplication- Engine blocks- Cylinder heads- Finish face milling in cast iron
| Coolant Entry Style | Without Coolant |
| Maximum Ramping Angle | 0\u00b0 |
| Tool Cutting Edge Angle | 25\u00b0 |
| Cutting Diameter | 100mm |
| Connection Diameter | 32mm |
| CoroPak | 15.2 |
| Rotational Speed Maximum | 4770 1/min |
| Body Diameter | 4.01in |
| Unit Measured | Metric |
| Standards Met | ISO6462 |
| Damping Property | No |
| Maximum Cutting Depth | 0.9mm |
| MFR Part No. | 26717966 |
| Functional Length | 63mm |
| Weight | 2.8kg |
| Through Hole Function Property | Yes |
| Max. Depth of Cut | 0.9mm |
| Body Material | Steel |
| Maximum Cutting Diameter | 107mm |
| Hand Preference | Right |
