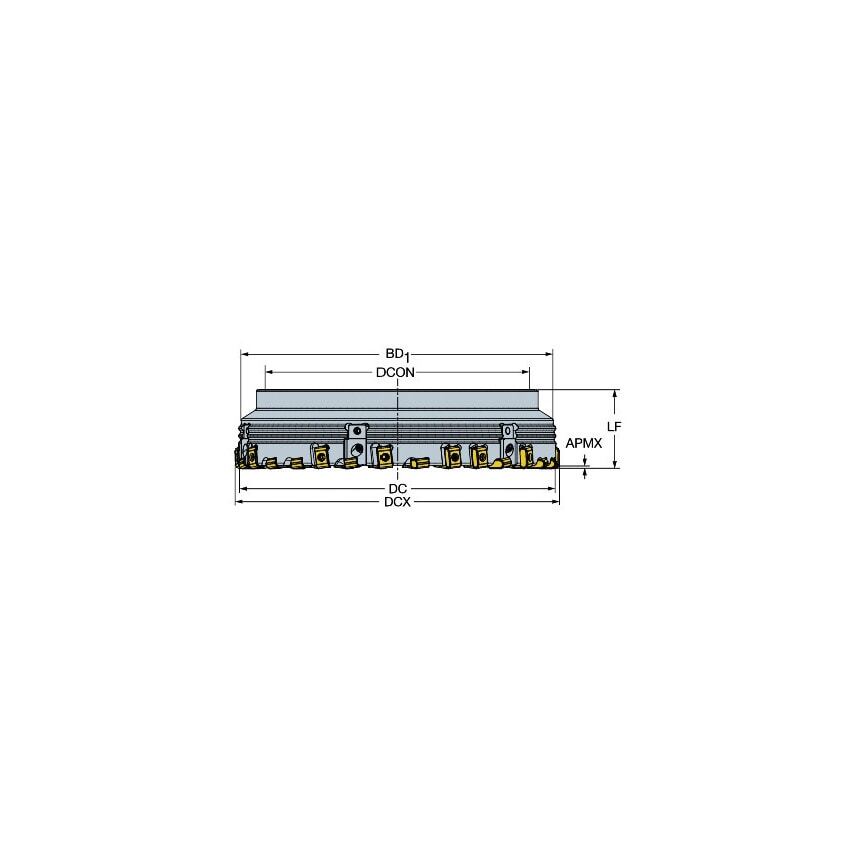

Product Range: CoroMill 425CoroMill 425 is a new finishing concept for cast iron face milling, specifically designed for the automotive business. The accurate and reliable adjustment system makes CoroMill 425 the easiest to use system on the market. It has eight cutting edges, and the same multi-edge inserts are used both as working inserts and as wiper inserts, mounted in the same position.Features & Benefits- First choice for finishing in cast iron- 8 cutting edges- High precision adjustment system for wiper insertsApplication- Engine blocks- Cylinder heads- Finish face milling in cast iron
| Maximum Ramping Angle | 0\u00b0 |
| Connection Diameter | 268.65mm |
| MFR Part No. | 26717987 |
| Maximum Cutting Diameter | 322mm |
| Functional Length | 63mm |
| Coolant Entry Style | Without Coolant |
| Cutting Diameter | 315mm |
| Rotational Speed Maximum | 1520 1/min |
| Tool Cutting Edge Angle | 25\u00b0 |
| Through Hole Function Property | Yes |
| Maximum Cutting Depth | 0.9mm |
| Unit Measured | Metric |
| Body Diameter | 12.44in |
| Weight | 14.03kg |
| Damping Property | No |
| Body Material | Steel |
| Hand Preference | Right |
| CoroPak | 16.2 |
| Max. Depth of Cut | 0.9mm |
