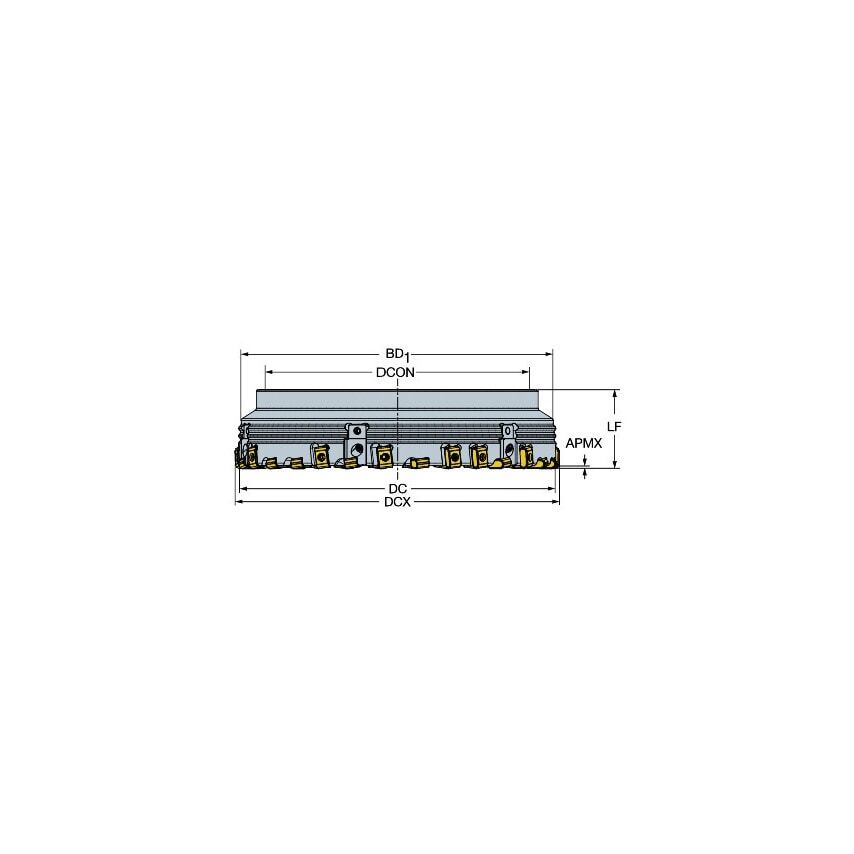

Product Range: CoroMill 425CoroMill 425 is a new finishing concept for cast iron face milling, specifically designed for the automotive business. The accurate and reliable adjustment system makes CoroMill 425 the easiest to use system on the market. It has eight cutting edges, and the same multi-edge inserts are used both as working inserts and as wiper inserts, mounted in the same position.Features & Benefits- First choice for finishing in cast iron- 8 cutting edges- High precision adjustment system for wiper insertsApplication- Engine blocks- Cylinder heads- Finish face milling in cast iron
| Coolant Entry Style | Without Coolant |
| MFR Part No. | 26717988 |
| Maximum Ramping Angle | 0\u00b0 |
| Maximum Cutting Diameter | 322mm |
| Functional Length | 63mm |
| Rotational Speed Maximum | 1520 1/min |
| Hand Preference | Left |
| Maximum Cutting Depth | 0.9mm |
| Damping Property | No |
| Through Hole Function Property | Yes |
| Weight | 14.03kg |
| CoroPak | 16.2 |
| Max. Depth of Cut | 0.9mm |
| Body Diameter | 12.44in |
| Connection Diameter | 268.65mm |
| Cutting Diameter | 315mm |
| Unit Measured | Metric |
| Body Material | Steel |
| Tool Cutting Edge Angle | 25\u00b0 |
