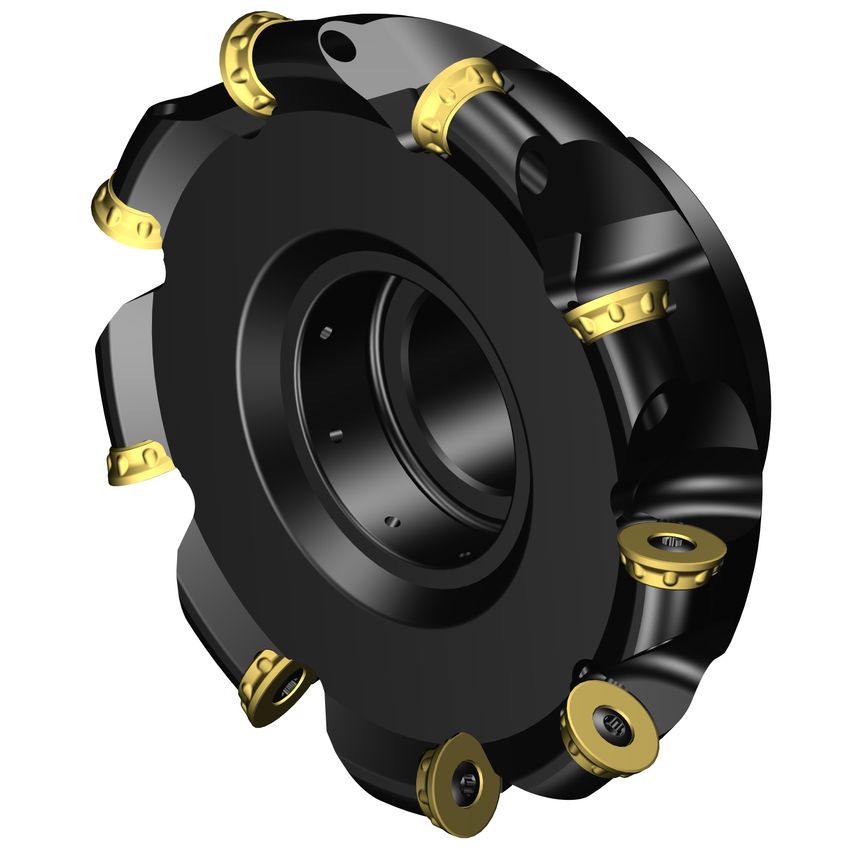

Product Range: CoroMill 300CoroMill 300 is a round insert cutter for a broad range of operations such as face milling, pocketing, and profiling. Its light cutting action allows for smooth entries and exits and for use of extended tool set-ups.The cutters generate low cutting forces and little heat when machining with small depths of cut. This allows the table feed to be increased five to ten times compared to general machining.Features & Benefits- Universal positive round insert concept- 3 - 8 Cutting edges- Internal coolantApplication- Full slot milling- Face milling- Ramping- Profiling- Pocket milling

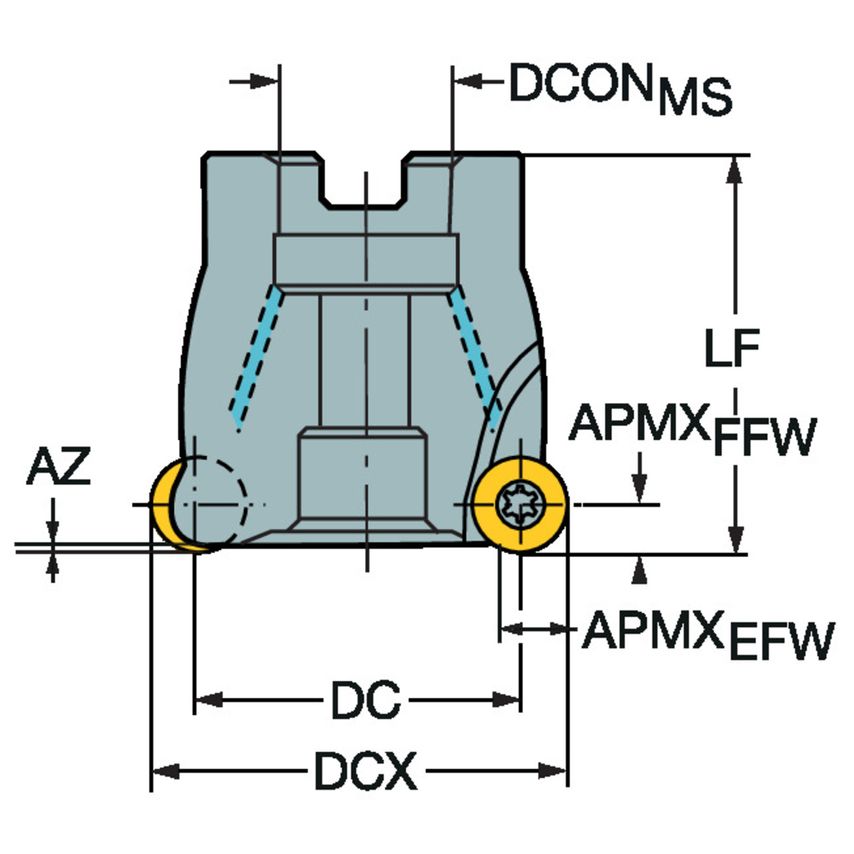

| Maximum Plunge Depth | 6mm |
| Maximum Ramping Angle | 2\u00b0 |
| Functional Length | 63mm |
| Through Hole Function Property | Yes |
| Hand Preference | Right |
| Maximum Cutting Diameter | 160mm |
| Unit Measured | Metric |
| Body Material | Steel |
| Standards Met | ISO6462 |
| Connection Diameter | 40mm |
| Rotational Speed Maximum | 9106 1/min |
| MFR Part No. | 12447024 |
| CoroPak | 9.2 |
| Weight | 4.28kg |
| Damping Property | No |
| Cutting Diameter | 140mm |
| Coolant Entry Style | 1 |
