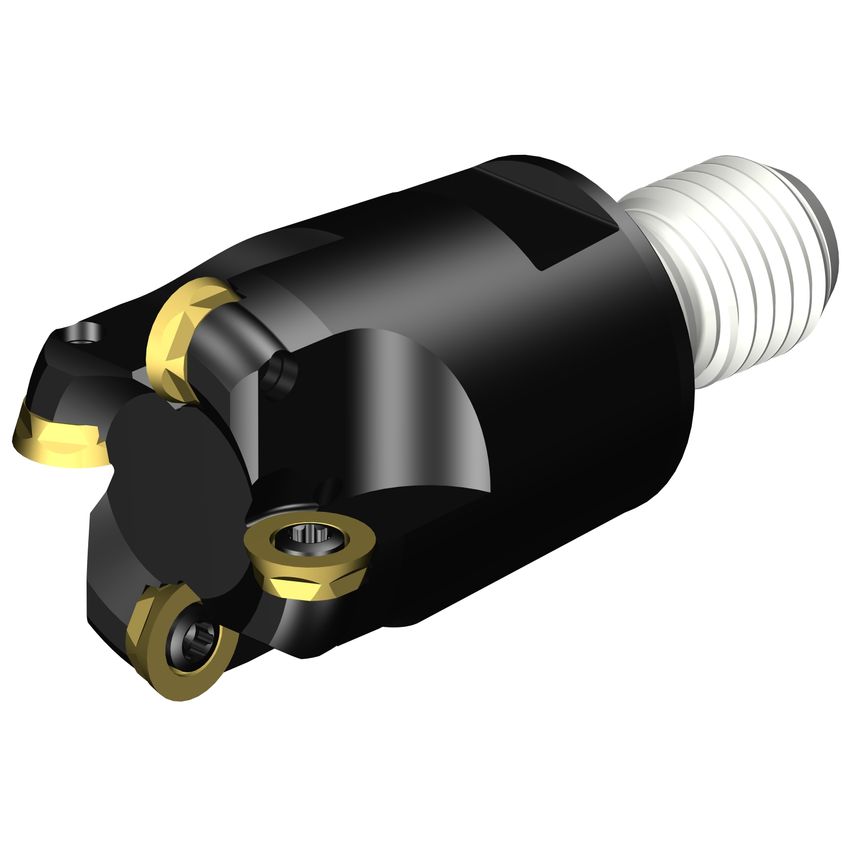

Product Range: CoroMill 300CoroMill 300 is a round insert cutter for a broad range of operations such as face milling, pocketing, and profiling. Its light cutting action allows for smooth entries and exits and for use of extended tool set-ups.The cutters generate low cutting forces and little heat when machining with small depths of cut. This allows the table feed to be increased five to ten times compared to general machining.Features & Benefits- Universal positive round insert concept- 3 - 8 Cutting edges- Internal coolantApplication- Full slot milling- Face milling- Ramping- Profiling- Pocket milling

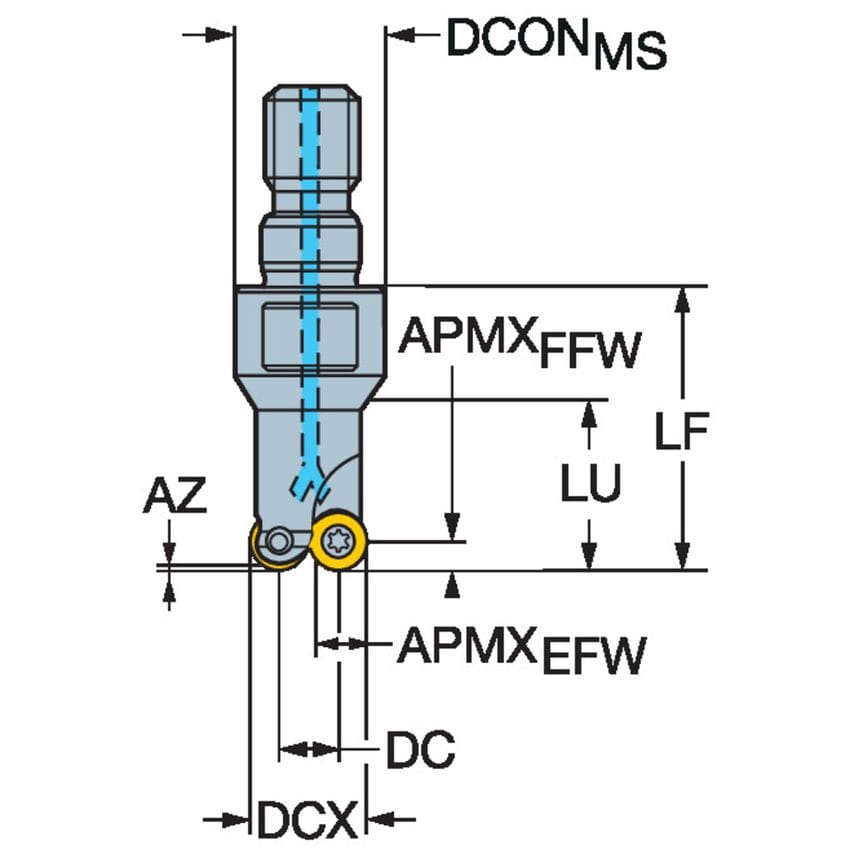

| Rotational Speed Maximum | 9100 1/min |
| Body Diameter | 1.3in |
| Maximum Cutting Diameter | 35mm |
| Connection Diameter | 28.8mm |
| Body Material | Steel |
| Coolant Entry Style | 1 |
| Cutting Diameter | 25mm |
| Functional Length | 45mm |
| Damping Property | No |
| CoroPak | 3.2 |
| Hand Preference | Right |
| Through Hole Function Property | Yes |
| MFR Part No. | 11579035 |
| Maximum Ramping Angle | 10\u00b0 |
| Maximum Plunge Depth | 3.6mm |
| Weight | 0.24kg |
| Unit Measured | Metric |
