Product Range: CoroMill 390Tool Type: Shoulder millingVersatile shoulder milling cutters with ramping capability for mixed productionFeatures & Benefits- First choice for flexible shoulder milling- 2 cutting edges- Ramping capabilities- Large radius assortment- Internal coolant- Close tolerances giving excellent surface finish and minimal mismatch- Large depth of cut and steep ramping capability- Oversized diameter for clearance is available

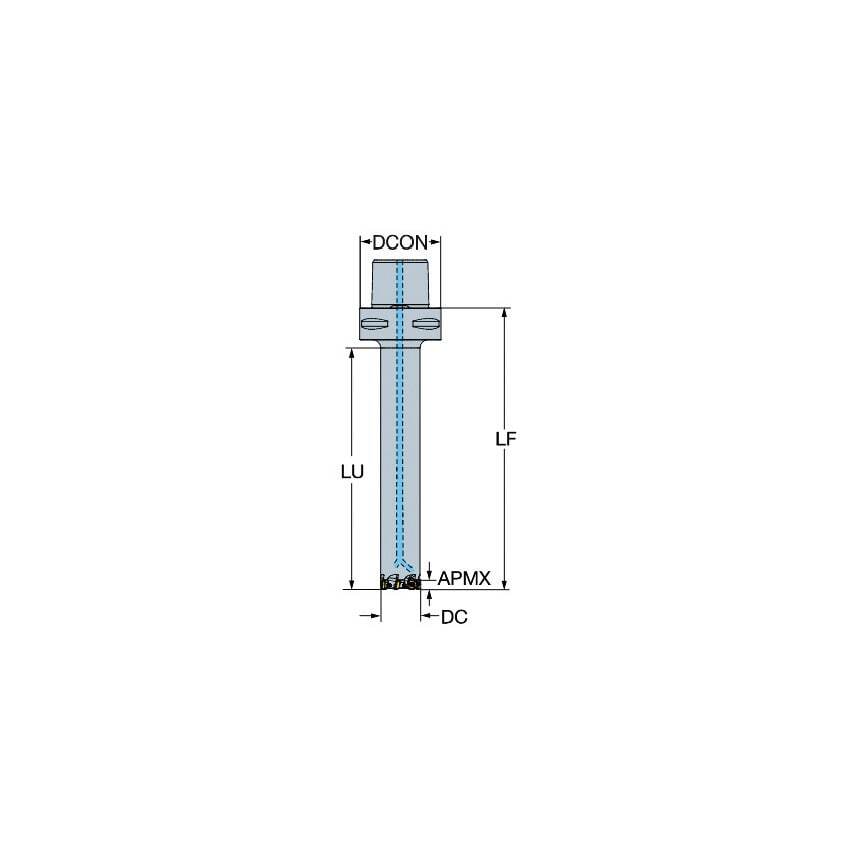

| MFR Part No. | 7323220880461 |
| Functional Length | 217mm |
| Usable Length | 192mm |
| CoroPak | 110 |
| Maximum Plunge Depth | 0.5mm |
| Hand Preference | Right |
| Standards Met | ISO26623-1 |
| Tool Cutting Edge Angle | 90\u00b0 |
| Weight | 1.56kg |
| Unit Measured | Metric |
| Connection Diameter | 9mm |
| Damping Property | Yes |
| Through Hole Function Property | Yes |
| Max. Depth of Cut | 5.8mm |
| Rotational Speed Maximum | 15000 1/min |
| Maximum Ramping Angle | 1\u00b0 |
| Maximum Cutting Depth | 5.8mm |
| Body Material | Steel |
| Functional Diameter | 35mm |
| Cutting Diameter | 103mm |
