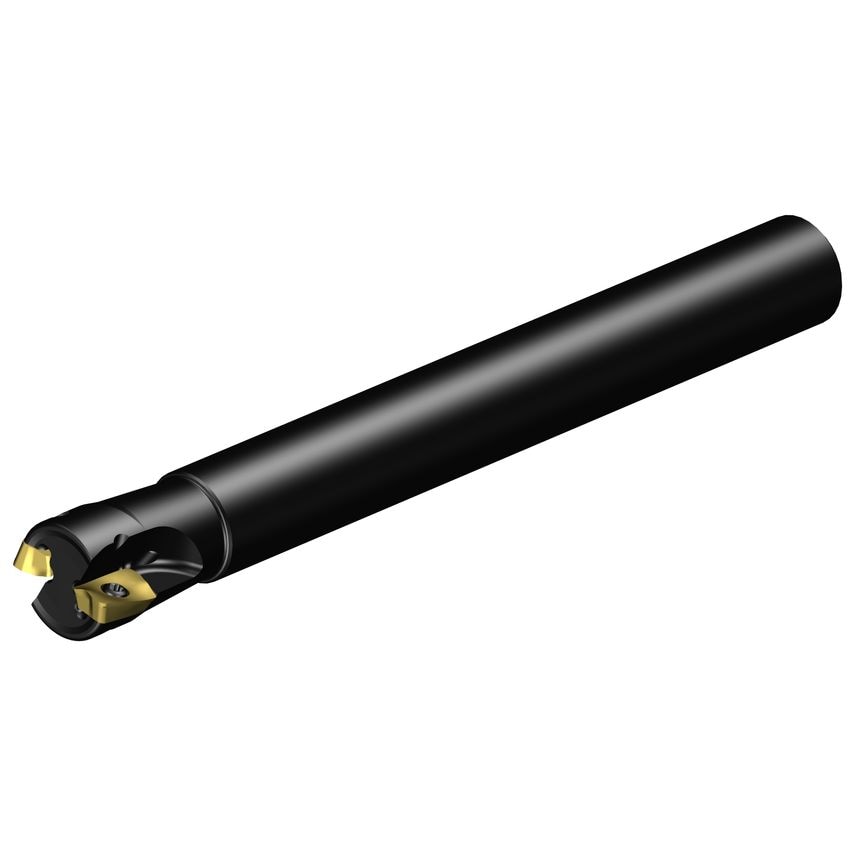

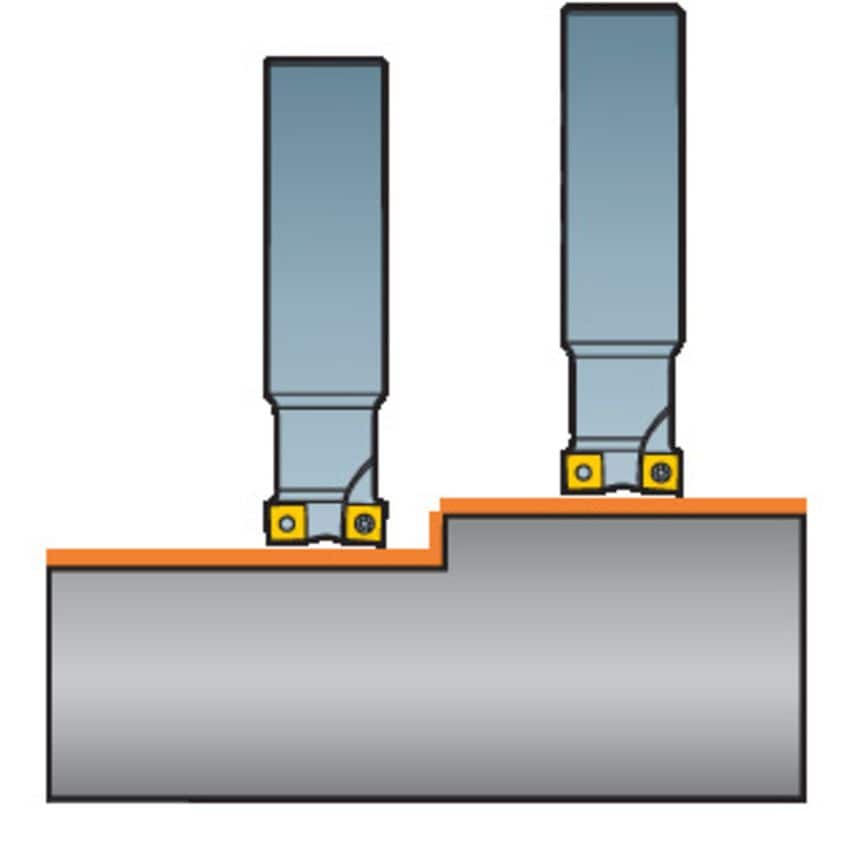

Product Range: CoroMill 390Tool Type: Shoulder millingVersatile shoulder milling cutters with ramping capability for mixed productionFeatures & Benefits- First choice for flexible shoulder milling- 2 cutting edges- Ramping capabilities- Large radius assortment- Internal coolant- Close tolerances giving excellent surface finish and minimal mismatch- Large depth of cut and steep ramping capability- Oversized diameter for clearance is available

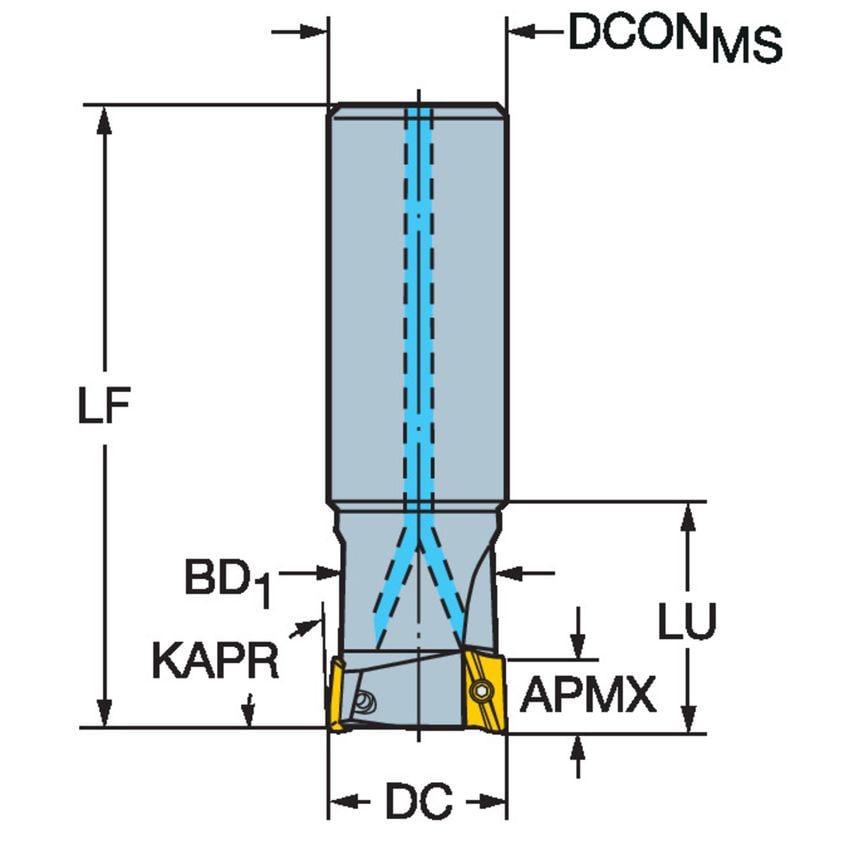

| Coolant Entry Style | 1 |
| Weight | 0.2kg |
| Rotational Speed Maximum | 31000 1/min |
| Functional Length | 145mm |
| Cutting Diameter | 60mm |
| Damping Property | No |
| Through Hole Function Property | Yes |
| Maximum Cutting Depth | 10mm |
| Body Material | Steel |
| Max. Depth of Cut | 10mm |
| MFR Part No. | 11168850 |
| Maximum Plunge Depth | 1mm |
| Unit Measured | Metric |
| Connection Diameter | 40mm |
| Hand Preference | Right |
| Maximum Ramping Angle | 7.5\u00b0 |
| CoroPak | 60 |
| Tool Cutting Edge Angle | 90\u00b0 |
