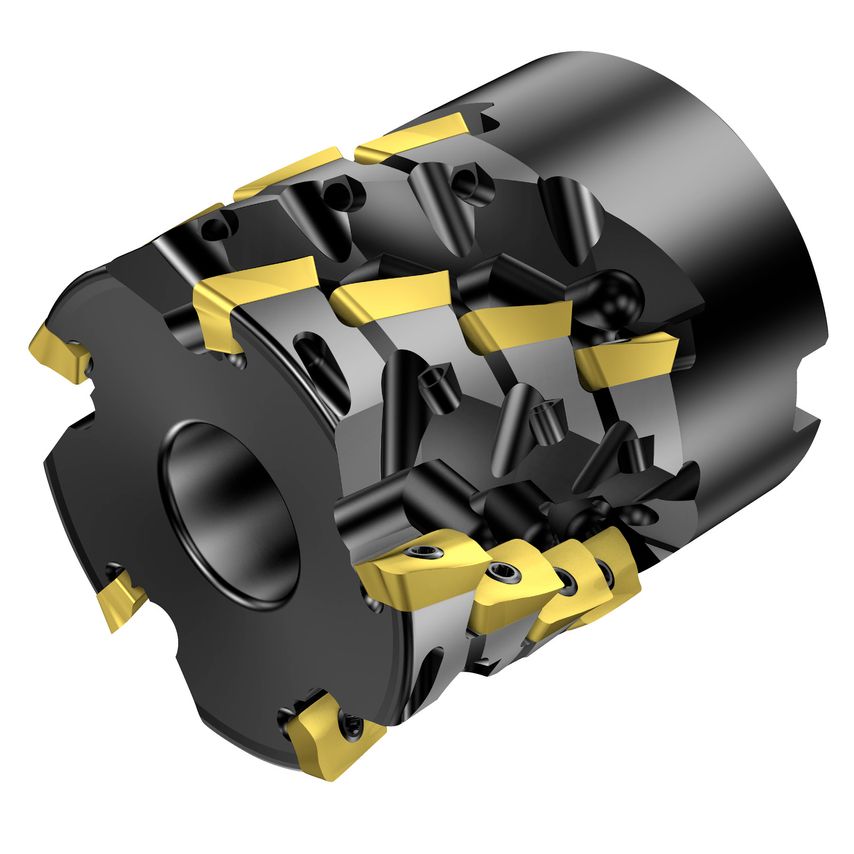

Product Range: CoroMill 390Tool Type: Shoulder millingVersatile shoulder milling cutters with ramping capability for mixed productionFeatures & Benefits- First choice for flexible shoulder milling- 2 cutting edges- Ramping capabilities- Large radius assortment- Internal coolant- Close tolerances giving excellent surface finish and minimal mismatch- Large depth of cut and steep ramping capability- Oversized diameter for clearance is available

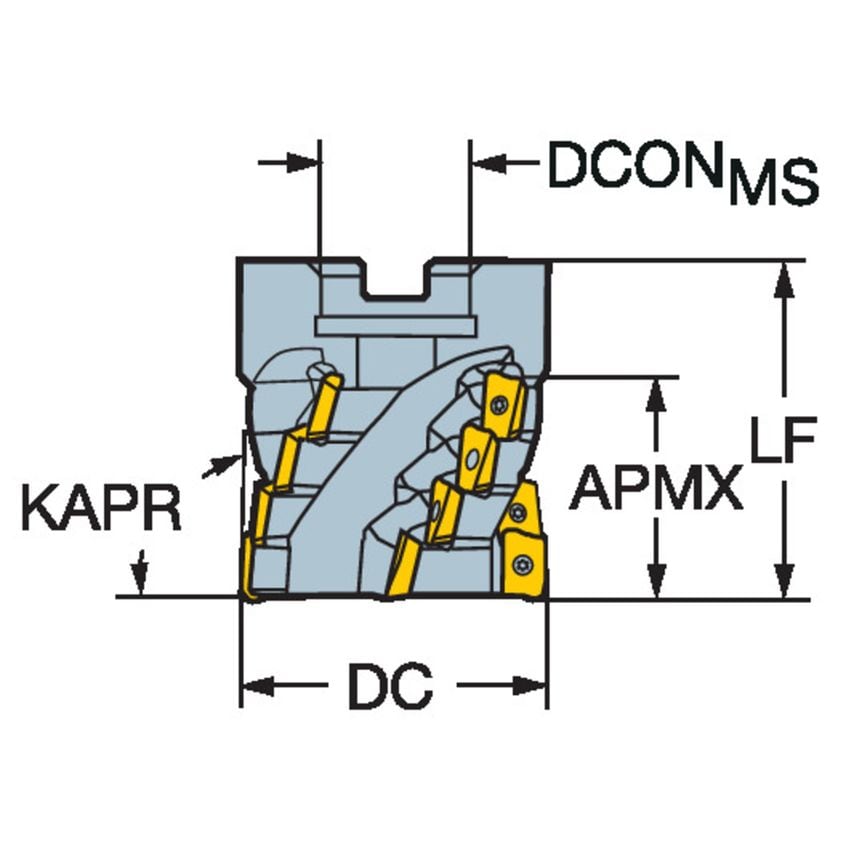

| Functional Length | 65.5mm |
| MFR Part No. | 11382604 |
| Weight | 0.98kg |
| Connection Diameter | 16mm |
| Coolant Entry Style | Without Coolant |
| Unit Measured | Metric |
| Maximum Cutting Depth | 45mm |
| CoroPak | 1.2 |
| Body Material | Steel |
| Standards Met | ISO6462 |
| Cutting Diameter | 44mm |
| Through Hole Function Property | Yes |
| Hand Preference | Right |
| Max. Depth of Cut | 45mm |
| Rotational Speed Maximum | 17800 1/min |
| Damping Property | No |
| Tool Cutting Edge Angle | 90\u00b0 |
| Maximum Ramping Angle | 0\u00b0 |
