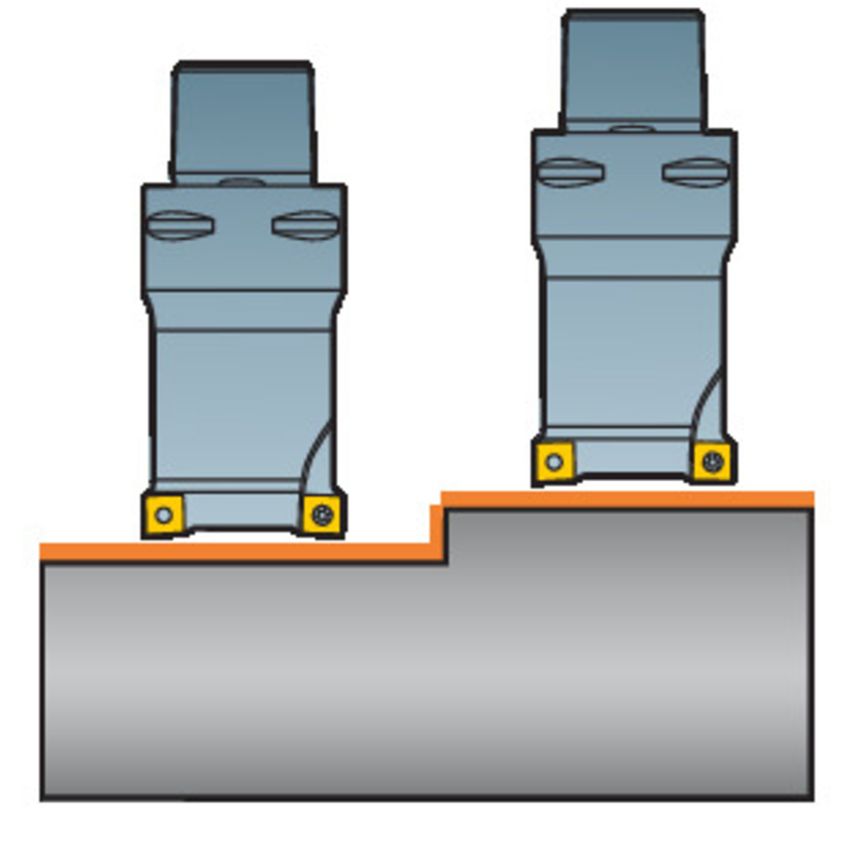

Product Range: CoroMill 390Tool Type: Shoulder millingVersatile shoulder milling cutters with ramping capability for mixed productionFeatures & Benefits- First choice for flexible shoulder milling- 2 cutting edges- Ramping capabilities- Large radius assortment- Internal coolant- Close tolerances giving excellent surface finish and minimal mismatch- Large depth of cut and steep ramping capability- Oversized diameter for clearance is available
| Maximum Cutting Depth | 43mm |
| CoroPak | 2.1 |
| Body Material | Steel |
| Max. Depth of Cut | 43mm |
| Rotational Speed Maximum | 7900 1/min |
| Standards Met | ISO26623-1 |
| Maximum Ramping Angle | 0\u00b0 |
| Weight | 1kg |
| Functional Length | 78.6mm |
| Functional Diameter | 35mm |
| Connection Diameter | 50mm |
| Cutting Diameter | 50mm |
| Damping Property | No |
| MFR Part No. | 11417055 |
| Hand Preference | Right |
| Unit Measured | Metric |
| Through Hole Function Property | Yes |
| Usable Length | 53mm |
| Tool Cutting Edge Angle | 90\u00b0 |
