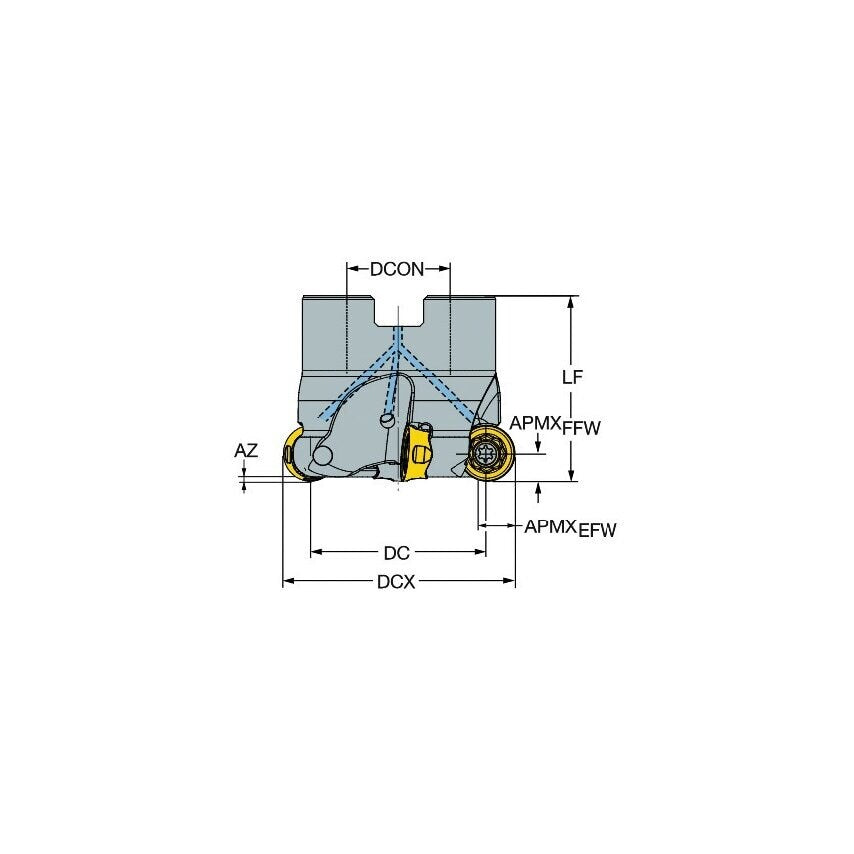

Product Range: CoroMill 600Tool Type: Profile millingVersatile round-insert profile milling cutter- High-performance cutter for many applications- Secure machining with the iLock interface- Extra-close pitchApplication Area- Profile milling- Roughing to semi-finishing- Ramping capacity- Diameter: 25-100 mm (1-2.5 inch)- Aerospace, energy, general engineering applications
| Coolant Entry Style | 1 |
| Body Material | Steel |
| Rotational Speed Maximum | 19900 1/min |
| Cutting Diameter | 42mm |
| CoroPak | 12.2 |
| Hand Preference | Right |
| Unit Measured | Metric |
| Standards Met | ISO6462 |
| Maximum Plunge Depth | 1.5mm |
| Maximum Cutting Diameter | 52mm |
| Maximum Ramping Angle | 3\u00b0 |
| Weight | 0.29kg |
| Functional Length | 40mm |
| MFR Part No. | 26252730 |
| Connection Diameter | 22mm |
| Damping Property | No |
| Through Hole Function Property | Yes |
