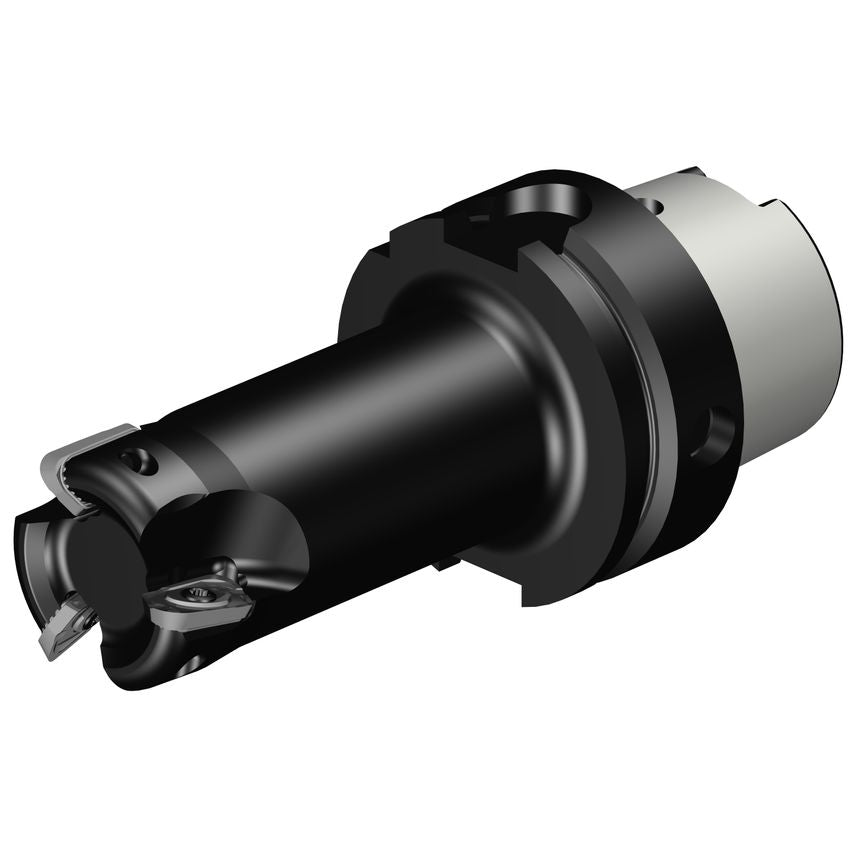

Product Range: CoroMill 790Tool Type: Shoulder millingShoulder milling cutters for aluminiumThe CoroMill 790 cutter is the first choice for ISO N materials. To be used in shoulder operations as a "super remover", it is designed for high security demands and high precision work.Features & Benefits- First choice for aluminium- 2 cutting edges- Serrated interface for precision and high-speed machining- Large radius assortment- Internal coolant

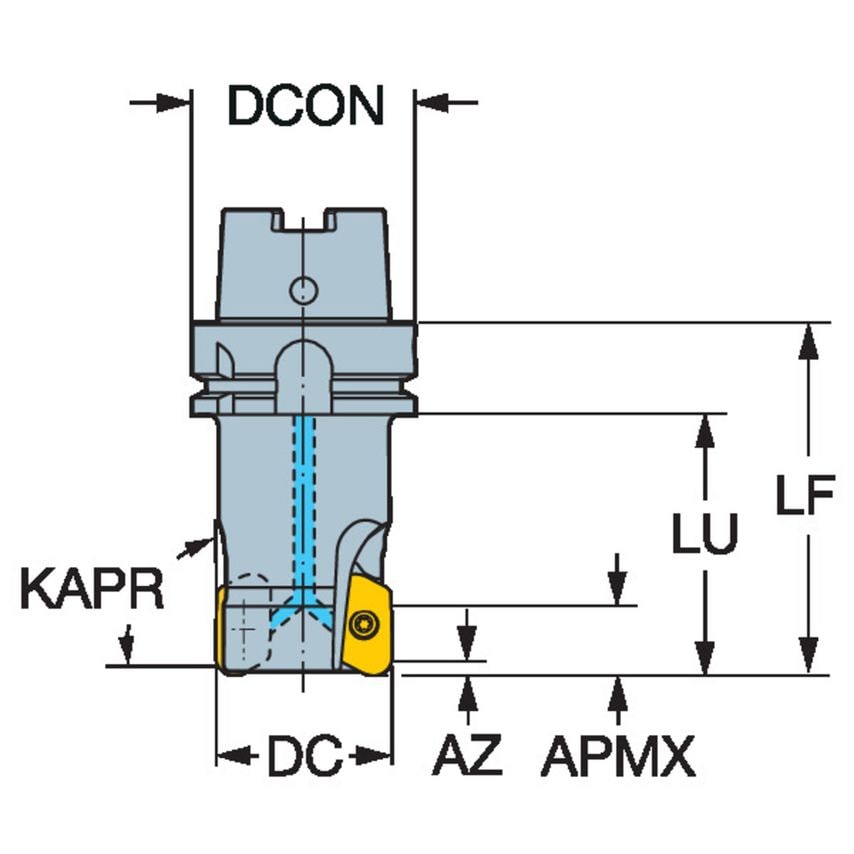

| Maximum Cutting Depth | 12mm |
| Connection Diameter | 9mm |
| Functional Length | 111mm |
| Coolant Entry Style | 1 |
| MFR Part No. | 11580590 |
| Weight | 1.26kg |
| Tool Cutting Edge Angle | 90\u00b0 |
| Max. Depth of Cut | 12mm |
| Damping Property | No |
| Body Material | Steel |
| Standards Met | ISO12164-1 |
| Cutting Diameter | 104mm |
| Maximum Plunge Depth | 2mm |
| Functional Diameter | 48.01mm |
| Usable Length | 80mm |
| Maximum Ramping Angle | 9\u00b0 |
| Through Hole Function Property | Yes |
| CoroPak | 70 |
| Rotational Speed Maximum | 20000 1/min |
| Hand Preference | Right |
| Unit Measured | Metric |
