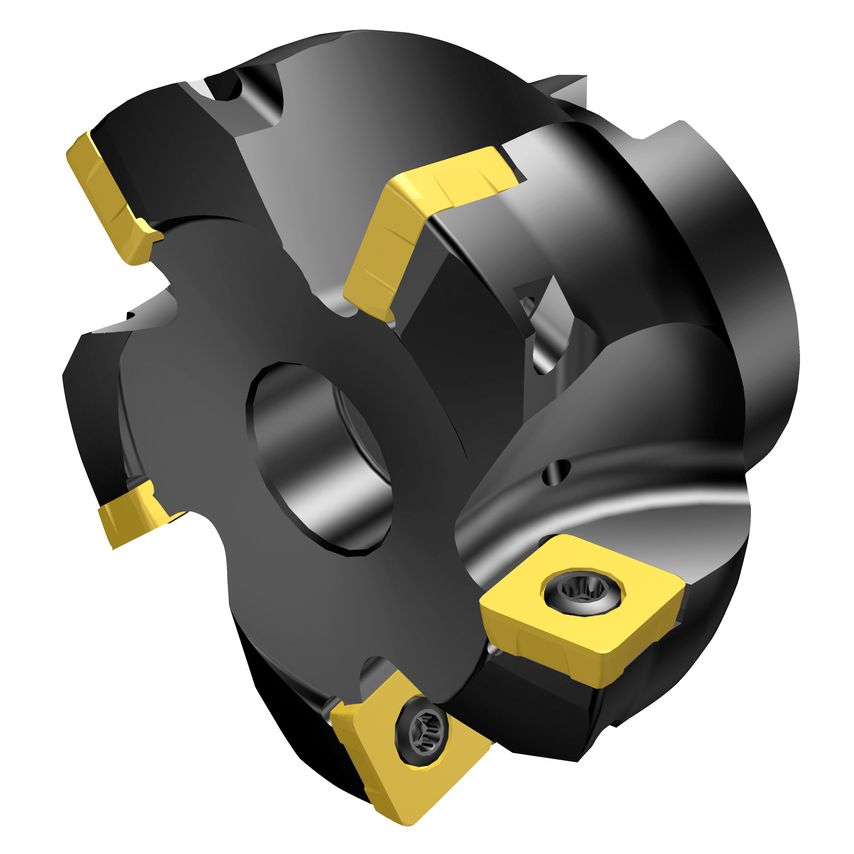

Tool type: Face millingHigh feed face and plunge milling.The CoroMill 210 is a very productive roughing concept to use when high metal removal rate is the first priority. A 10 entering angle allows extreme feed rates when face milling. This directs the cutting forces in an axial direction which provides a stable cutting action and no vibration tendency.Features & Benefits- High-feed face milling in steel and cast iron- 4 cutting edges- Internal coolant

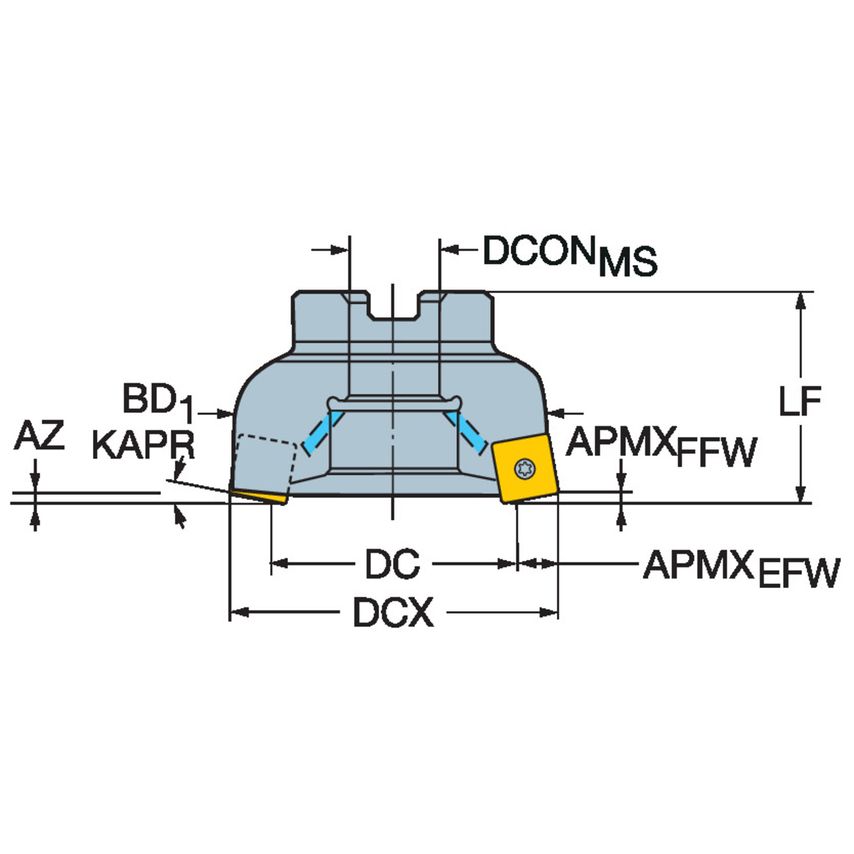

| MFR Part No. | 12308100 |
| Body Diameter | 2.36in |
| Unit Measured | Metric |
| Maximum Cutting Diameter | 63mm |
| Functional Length | 50mm |
| Damping Property | No |
| Maximum Ramping Angle | 2.6\u00b0 |
| Tool Cutting Edge Angle | 10\u00b0 |
| Maximum Plunge Depth | 1.8mm |
| Body Material | Steel |
| Cutting Diameter | 48.9mm |
| CoroPak | 8.1 |
| Rotational Speed Maximum | 21800 1/min |
| Through Hole Function Property | Yes |
| Standards Met | ISO6462 |
| Coolant Entry Style | 1 |
| Hand Preference | Right |
| Weight | 0.5kg |
| Connection Diameter | 22mm |
