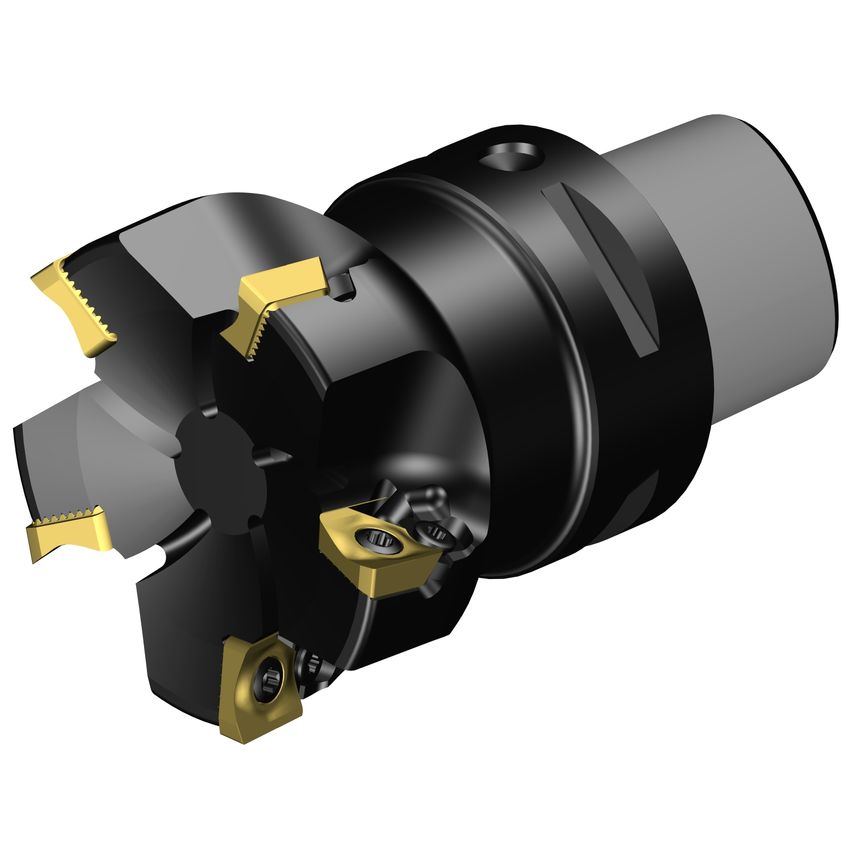

Product Range: CoroMill CenturyCoroMill Century is a face mill tool system with aluminium or steel body for high speed machining. The tool is designed with serrated insert interface for safe performance and reduced run-out. The axial position of the inserts can easily be micro set with high accuracy.Features & Benefits- First choice for super-finishing in aluminium- 2 cutting edges- 90-degree lead angle- Axial adjustable- Internal coolant- High speed machining security by designApplication- Face and square shoulder milling for ISO N- CBN grades for high-speed machining in ISO K

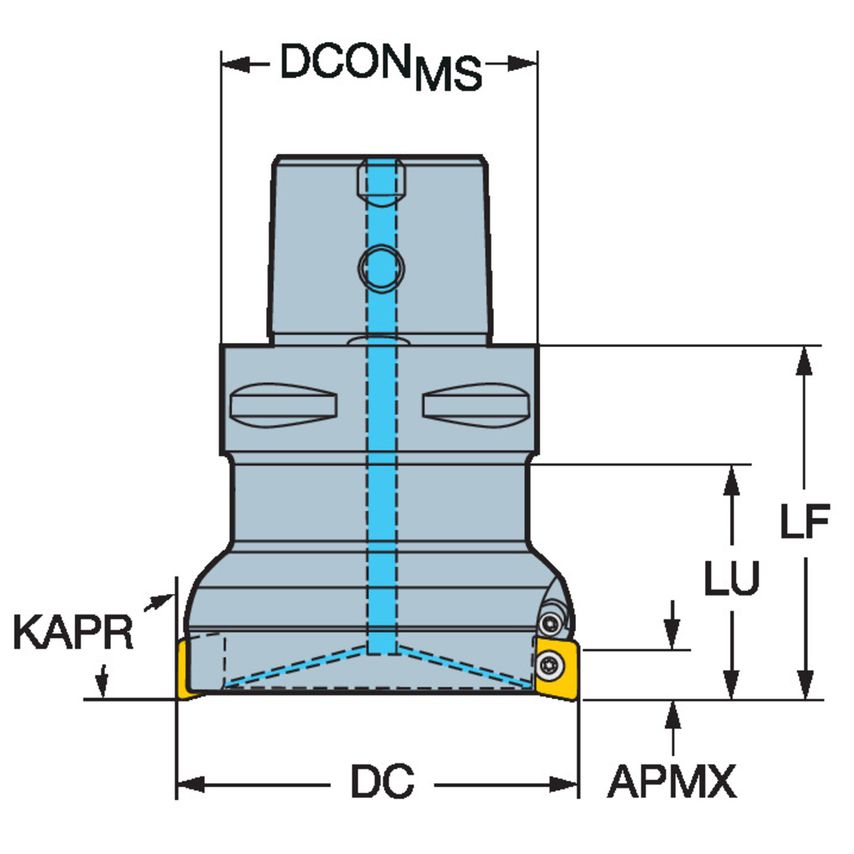

| Functional Diameter | 35mm |
| Max. Depth of Cut | 11mm |
| Damping Property | No |
| Maximum Ramping Angle | 0\u00b0 |
| Functional Length | 63mm |
| Cutting Diameter | 124mm |
| Connection Diameter | 8mm |
| Tool Cutting Edge Angle | 90\u00b0 |
| MFR Part No. | 11538730 |
| Weight | 0.34kg |
| CoroPak | 65 |
| Standards Met | ISO26623-1 |
| Hand Preference | Right |
| Body Material | Steel |
| Usable Length | 40mm |
| Maximum Cutting Depth | 11mm |
| Rotational Speed Maximum | 28000 1/min |
| Through Hole Function Property | Yes |
| Unit Measured | Metric |
