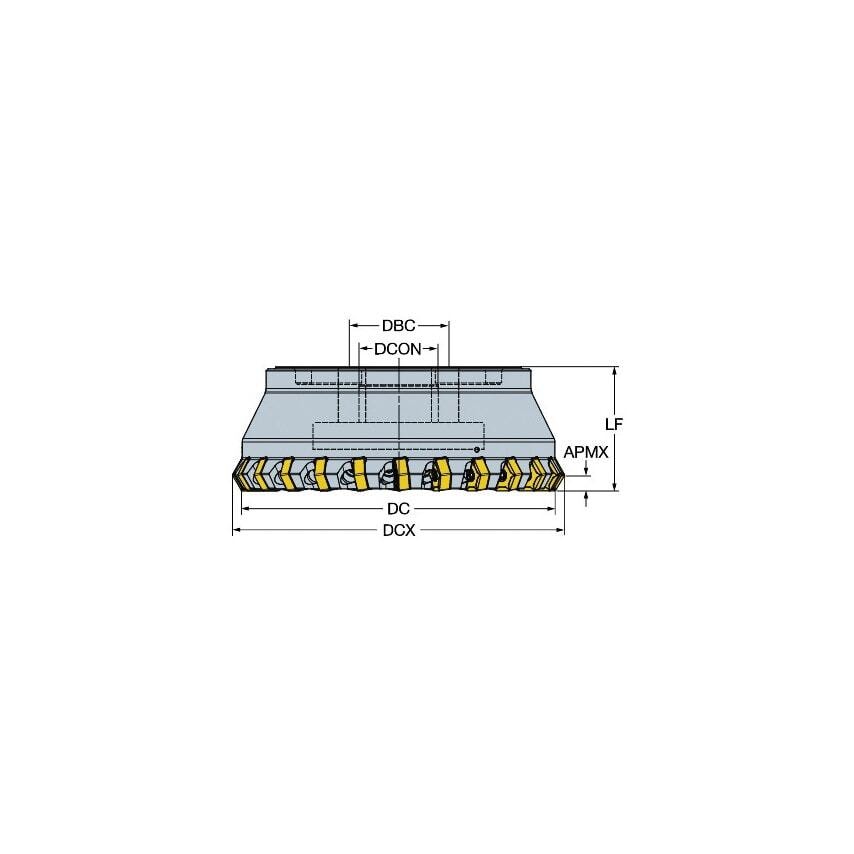

Product Range: CoroMill S-60Tool Type: Face millingMulti-edge face milling cutterCoroMill S-60 is a close-pitch cutter for machining in cast iron. The close pitch and high number of cutting edges increase productivity and reduce costs.Features & Benefits- Roughing cutter for high metal removal rate in cast iron- 12 cutting edges- Extra-close pitch- Easy insert indexing for low setup time
| Maximum Cutting Diameter | 209mm |
| CoroPak | 12.2 |
| Body Material | Steel |
| Unit Measured | Metric |
| Rotational Speed Maximum | 6700 1/min |
| Cutting Diameter | 200mm |
| Tool Cutting Edge Angle | 60\u00b0 |
| Maximum Cutting Depth | 6mm |
| Coolant Entry Style | Without Coolant |
| Max. Depth of Cut | 6mm |
| Damping Property | No |
| Hand Preference | Right |
| Functional Length | 63mm |
| MFR Part No. | 26169939 |
| Connection Diameter | 60mm |
| Maximum Ramping Angle | 0\u00b0 |
| Through Hole Function Property | Yes |
| Standards Met | ISO6462 |
| Weight | 10.6kg |
