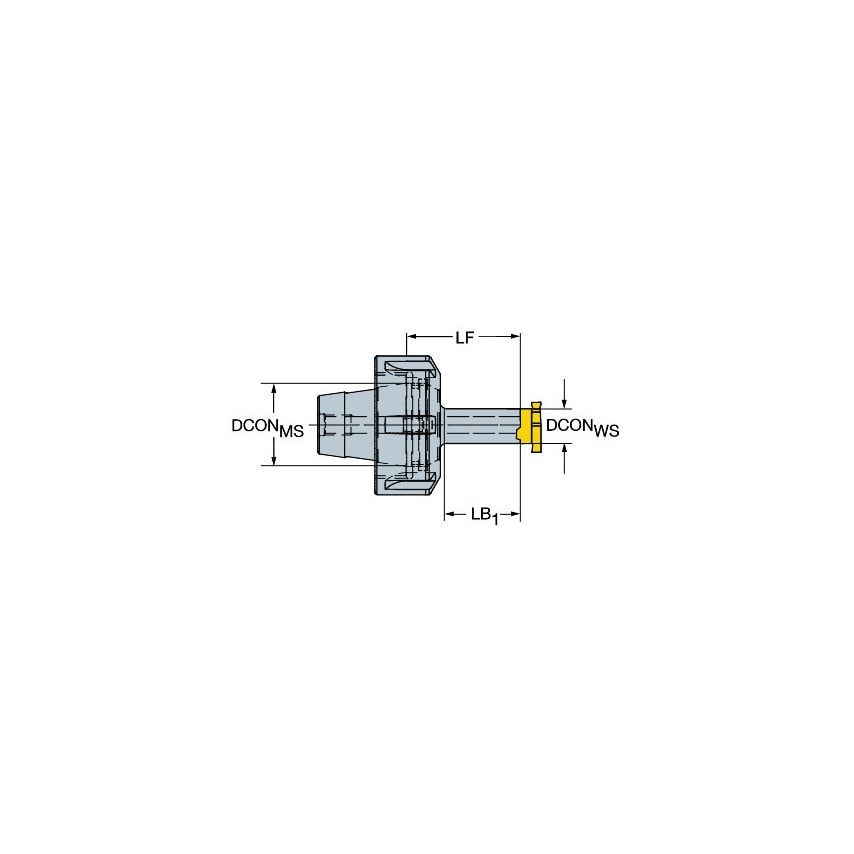

Product Range: CoroMill 327Tool Type: Thread millingA versatile cutter which can be used for many types of grooves, threads and chamfers; machining of eccentric components such as gearbox casings, and high volume assemblies, mainly in machining centres and rotating units in lathes.Features & Benefits- Flexible cutter with multiple edges for many types of applications- Low cutting forces- Large program with different shank lengths and diametersApplication- Circlip grooving, Thread milling, Groove milling, Chamfering, both front and back
| Body Material | Steel |
| MFR Part No. | 26073869 |
| Weight | 0.217kg |
| CoroPak | 32 |
| Coolant Entry Style | Without Coolant |
| Unit Measured | Metric |
| Functional Length | 12.7mm |
| Through Hole Function Property | Yes |
| Functional Diameter | 16mm |
| Body Diameter | 0.47in |
| Body Half Taper Angle | 0\u00b0 |
| Connection Diameter | 17mm |
| Rotational Speed Maximum | 40000 1/min |
| Coolant Exit Style | 0 |
| Damping Property | No |
