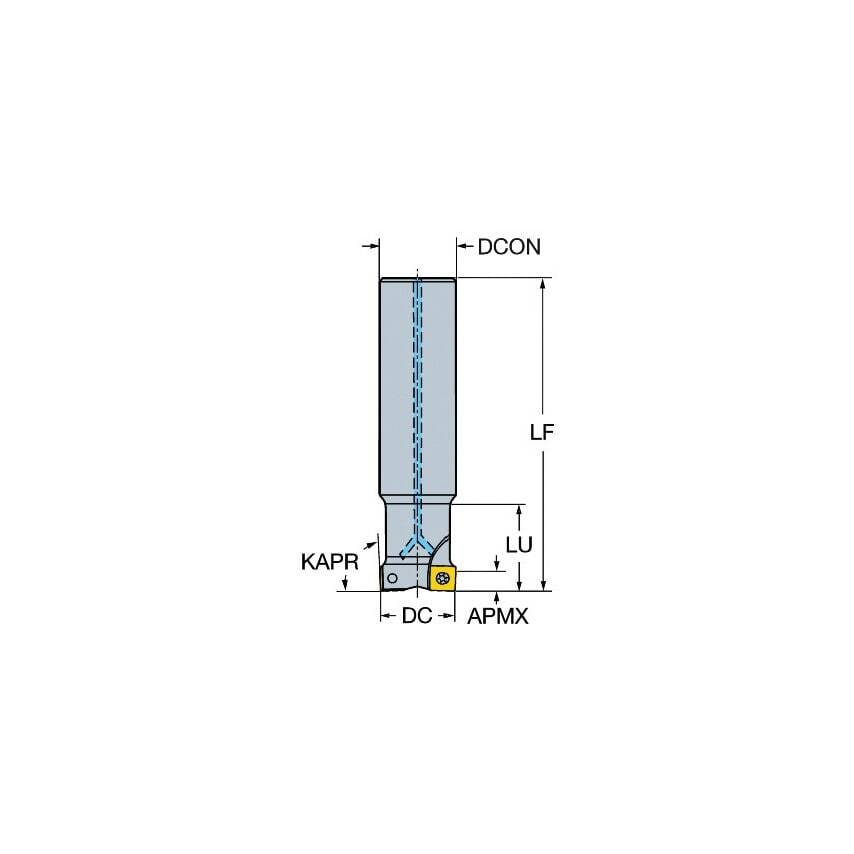

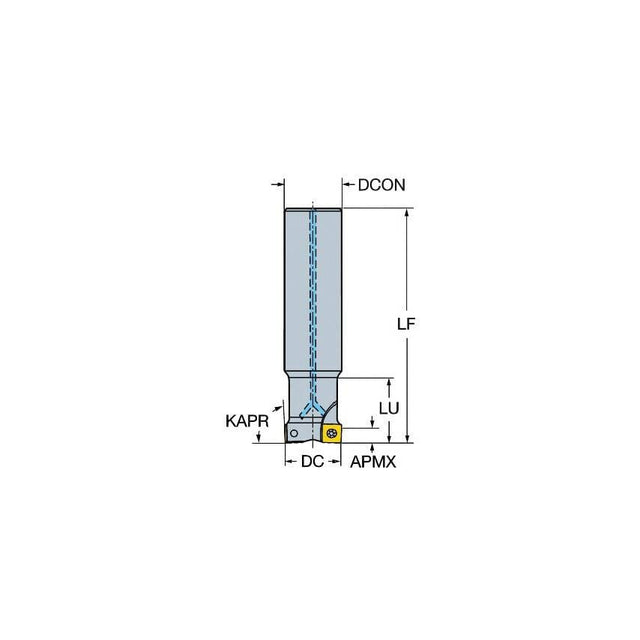

Product Type: coromill 490 square shoulder milling cutter
Depth of Cut Maximum (Imperial): 0.216535 inch
CoroPak: 8.2
Item Weight: 0.251 kg
Working Engagement Ratio Maximum: 1
Center Cutting Capability: No
Through Hole Function Property: Yes
Rotational Speed Maximum: 48500 1/min
Coolant Entry Style Code: 1: axial concentric entry
Cutting Diameter: 20 mm
Functional Length: 110 mm
Body Material Code: Steel
Adaptive Interface Machine Direction: Cylindrical shank without clamping features -metric: 20.0
Unit System: Metric
| Tool Cutting Edge Angle | 90\u00b0 |
| Max. Depth of Cut | 5.5mm |
| Body Material | Steel |
| Usable Length | 25mm |
| Weight | 0.25kg |
| Rotational Speed Maximum | 48500 1/min |
| Through Hole Function Property | Yes |
| Maximum Ramping Angle | 0\u00b0 |
| Hand Preference | Right |
| Connection Diameter | 63mm |
| MFR Part No. | 12308656 |
| Functional Length | 110mm |
| Maximum Cutting Depth | 5.5mm |
| Damping Property | No |
| Coolant Entry Style | 1 |
| Cutting Diameter | 77mm |
| Unit Measured | Metric |
| CoroPak | 4.76 |
