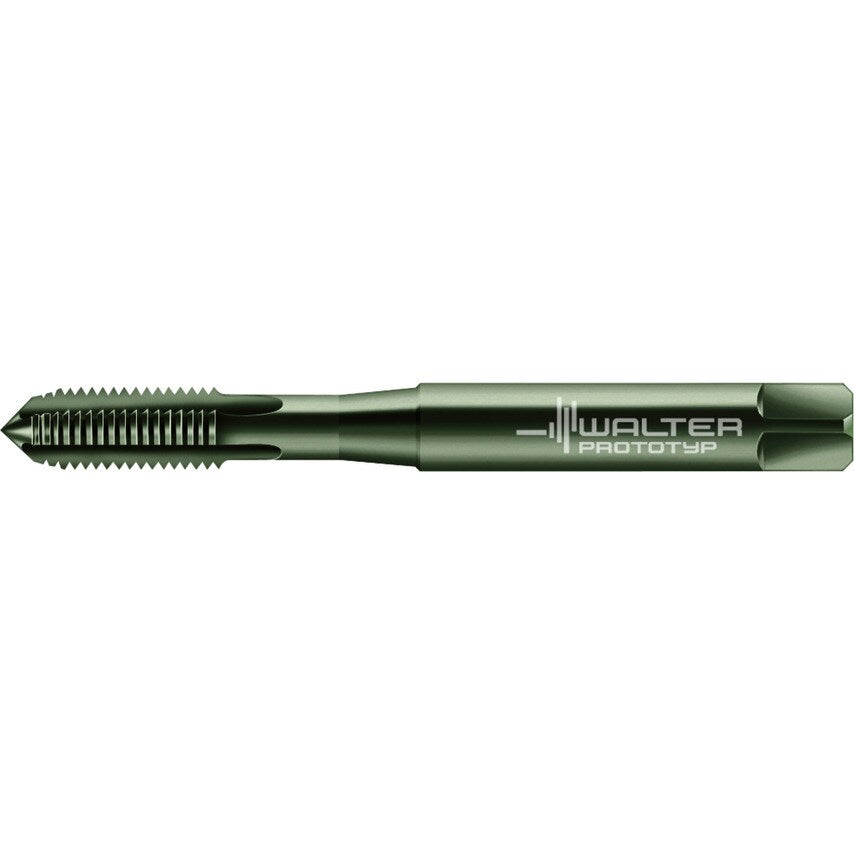

HSS-E PM machine taps Paradur Eco CI C = 2-3xTP (semi-bottom chamfer) 3xD UNC/2B DIN 2184-1 neutral (straight) flute 0 Suitable for blind hole Suitable for through hole NID UNC #6-32 P=32
| MFR Part No. | 5603186 |
| Usable Length | 20mm |
| Connection Diameter | 4mm |
| Clamping Width | 3mm |
| Functional Length | 56mm |
| Driving Square Length | 6mm |
| Tool Designation | E22314-UNC6 |
| Thread Size | UNC #6-32 |
| Number of Grooves | 3 |
| Cutting Edge Length | 11mm |
