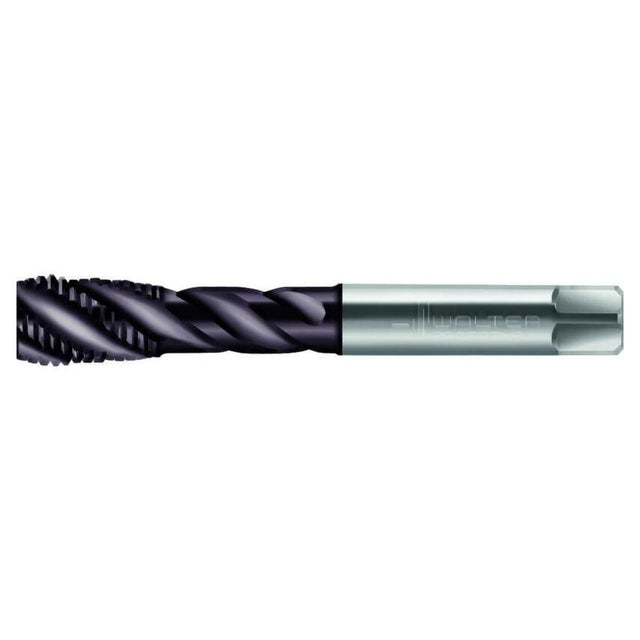

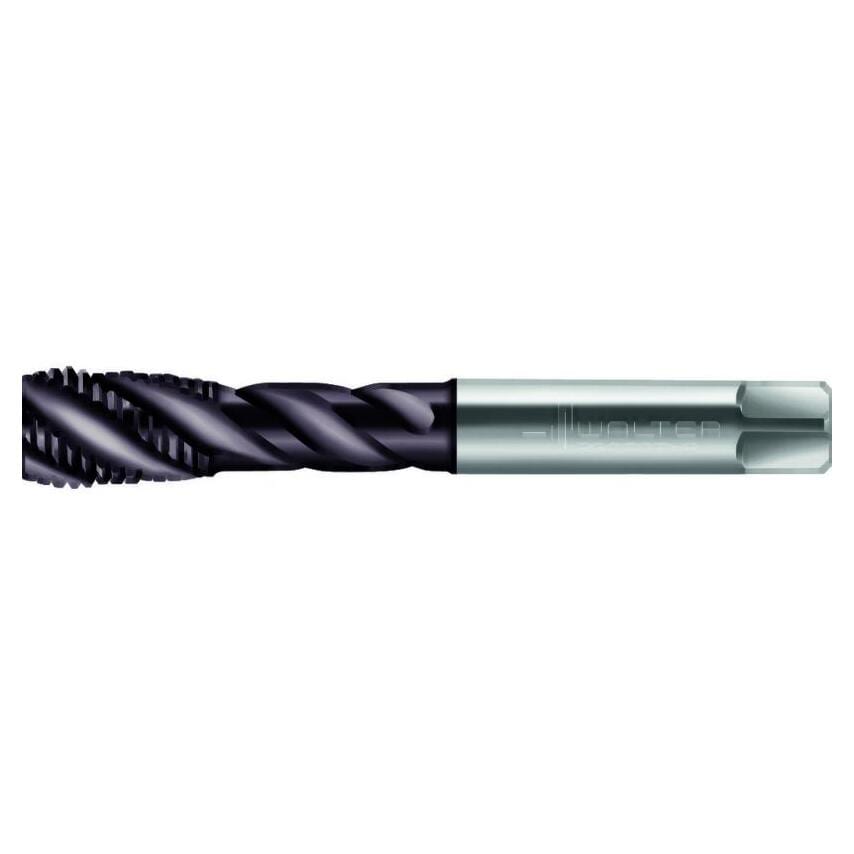

HSS-E PM machine taps Prototex Eco Plus B = 3.5-5xTP (plug chamfer) 3,5xD MF/6HX DIN 374 Suitable for through hole THL MF 20x1.5 P=0.0591in
Note: Image is for illustrative purposes only and may differ from the actual product
| Driving Square Length | 15mm |
| Tool Designation | EP2126302-M20X1.5 |
| MFR Part No. | 6432560 |
| Usable Length | 80mm |
| Shank Diameter | 16mm |
| Number of Grooves | 4 |
| Thread Size | MF 20x1.5 |
| Clamping Width | 12mm |
| Overall Length | 125mm |
| Thread Pitch | 1.5mm |
| Cutting Edge Length | 24mm |
