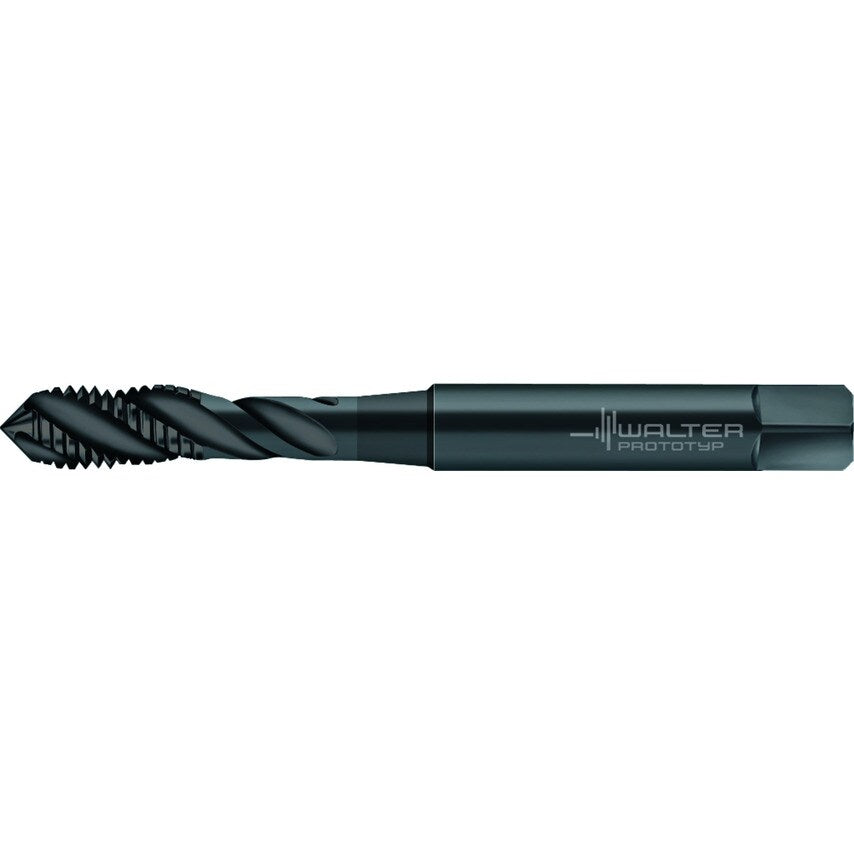

HSS-E (-PM) machine taps Supreme C = 2-3xTP (semi-bottom chamfer) 3xD M/6HX DIN 371 right hand flute 50 Suitable for blind hole WY80FC M 3 P=0.0197in
| Number of Grooves | 3 |
| Tool Designation | TC142-M3-C0-WY80FC |
| Usable Length | 18mm |
| MFR Part No. | 6714333 |
| Functional Length | 56mm |
| Thread Size | M 3 |
| Clamping Width | 2.7mm |
| Cutting Edge Length | 6mm |
| Thread Pitch | 0.5mm |
| Connection Diameter | 3.5mm |
| Driving Square Length | 6mm |
