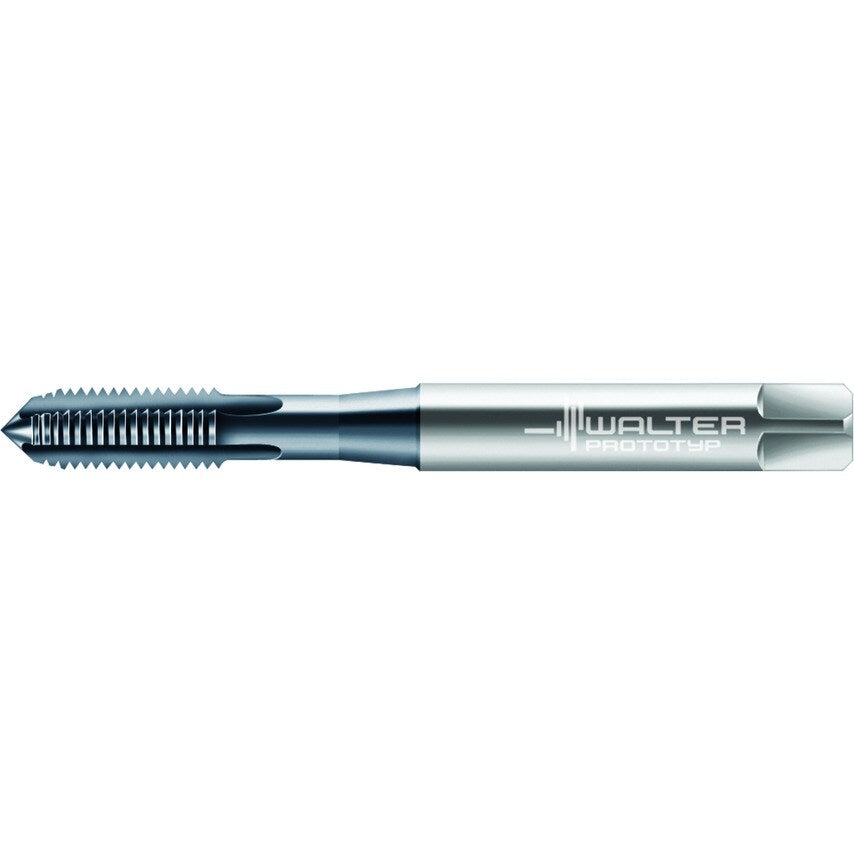

HSS-E PM machine taps Paradur Xpert K C = 2-3xTP (semi-bottom chamfer) 3xD UNC/2B DIN/ANSI right hand flute 0 Suitable for blind hole Suitable for through hole TAFT UNC #10-24 P=24
| Tool Designation | AK2231407-UNC10 |
| MFR Part No. | 7569439 |
| Driving Square Length | 0.25in |
| Usable Length | 0.98in |
| Cutting Edge Length | 0.51in |
| Number of Grooves | 4 |
| Functional Length | 2.76in |
| Thread Size | UNC #10-24 |
| Clamping Width | 0.15in |
| Connection Diameter | 0.19in |
