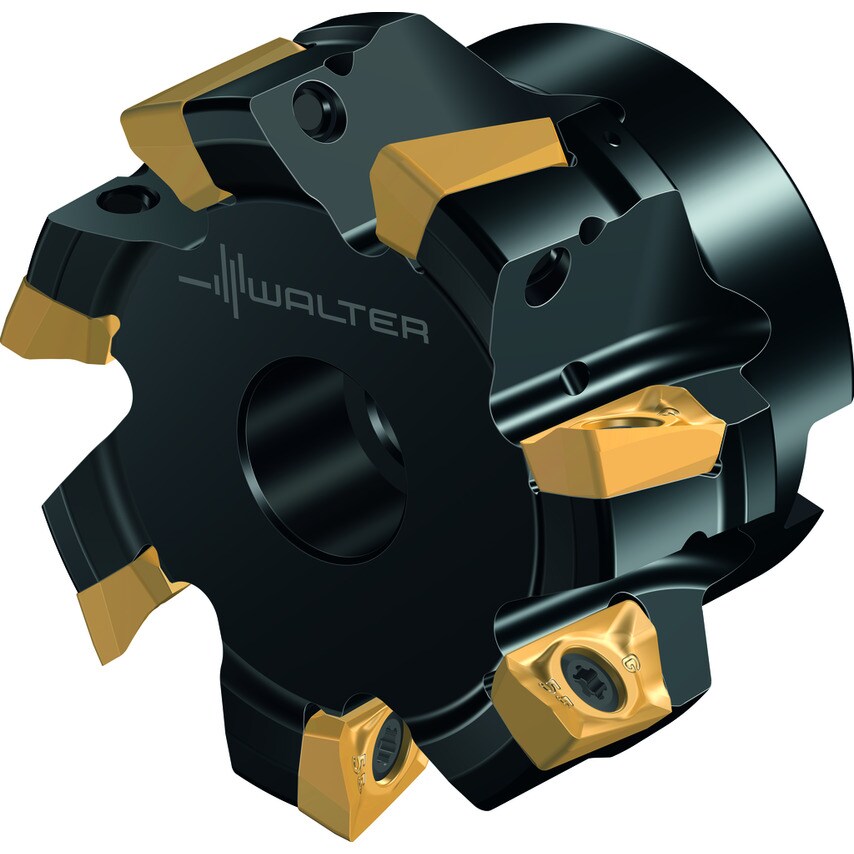

Shoulder milling cutters Parallel bore DIN 138 transverse keyway =90 metric BC .. 1605 .. Dc=2.4803in Z=7
| Maximum Ramping Angle | 2.3\u00b0 |
| Tool Designation | M5130-063-B27-07-15 |
| Maximum Projection Length | 50mm |
| Maximum Admissible Speed | 13200 |
| MFR Part No. | 7539495 |
| Cutting Edge Length | 15mm |
| Number of Inserts | 7 |
| Connection Diameter | 27mm |
| Number of Teeth | 7 |
| Cutting Edge Diameter | 63mm |
