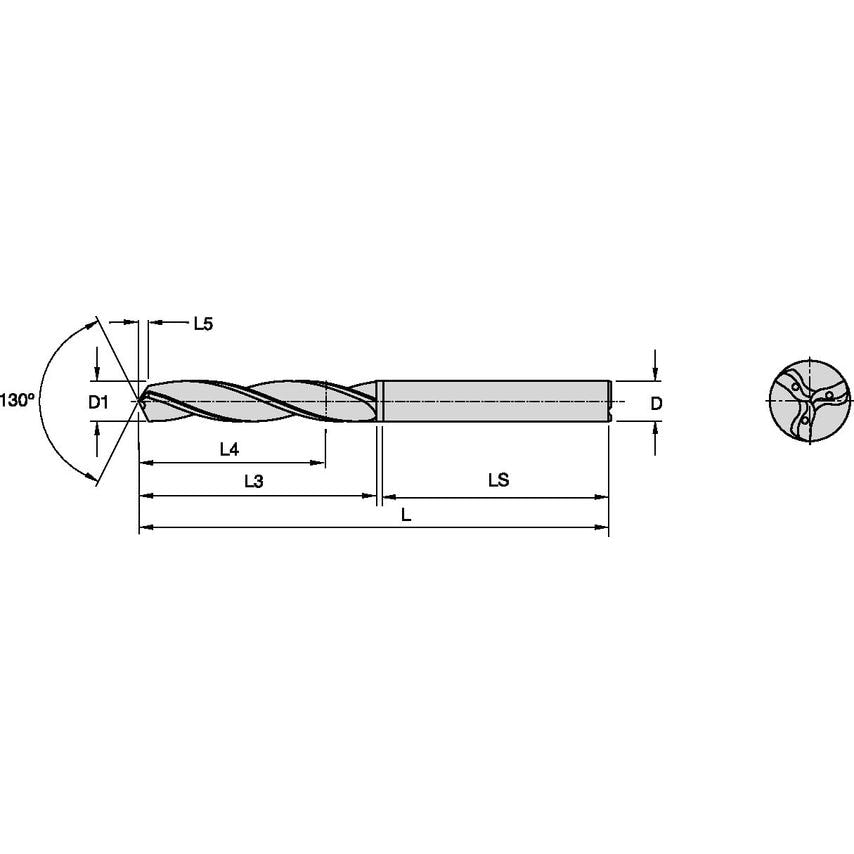

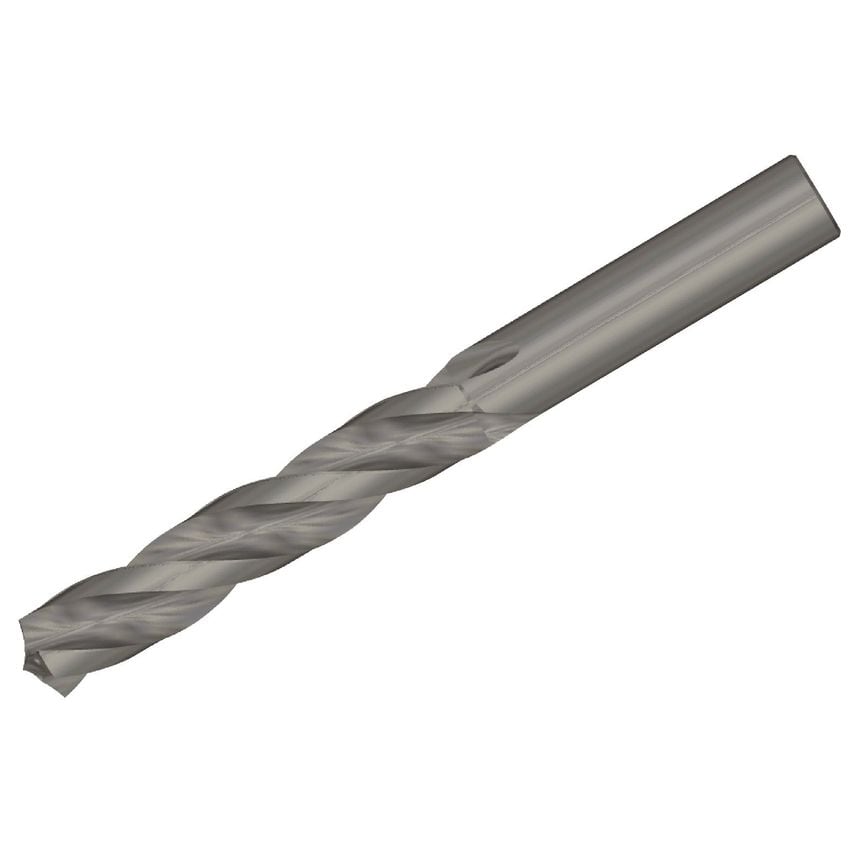

TF Drills Titanium Materials Through CoolantSolid Carbide Drills
| Hand Preference | Right |
| Adapter Style | Straight-Cylindrical |
| Number of Flutes | 2 |
| Flute Length | 60mm | 60.0000mm |
| Clamping Length | 41mm |
| Drill Point | 2.556mm |
| Drill Diameter | 9.5250mm |
| Adapter / Shank / Bore Diameter | 9.525mm | 9.5250mm |
| Unit Measured | Imperial |
| Helix Type | Right Hand Helix/Flute |
| MFR Part No. | 1762648 |
| Adapter Type | Cylindrical |
| Overall Length | 125mm | 125.0000mm |
| Coolant Delivery | Off-center Axial Coolant |
| Gage Length | 62.5mm |
| Helix Angle | 29.918 |
| Functional Length | 122.4440mm |
| Drill Diameter Tolerance | 0.006000 to 0.015000mm |
| Drill Depth | 48.7mm | 48.7000mm |
| Finish/Coating | Uncoated |
| Assembly Length | 81.444mm |
| Material | Carbide |
| Flute Construction | Helical Flute |
| Shank Length | 62.4990mm |
| Coolant Supplied | Yes |
