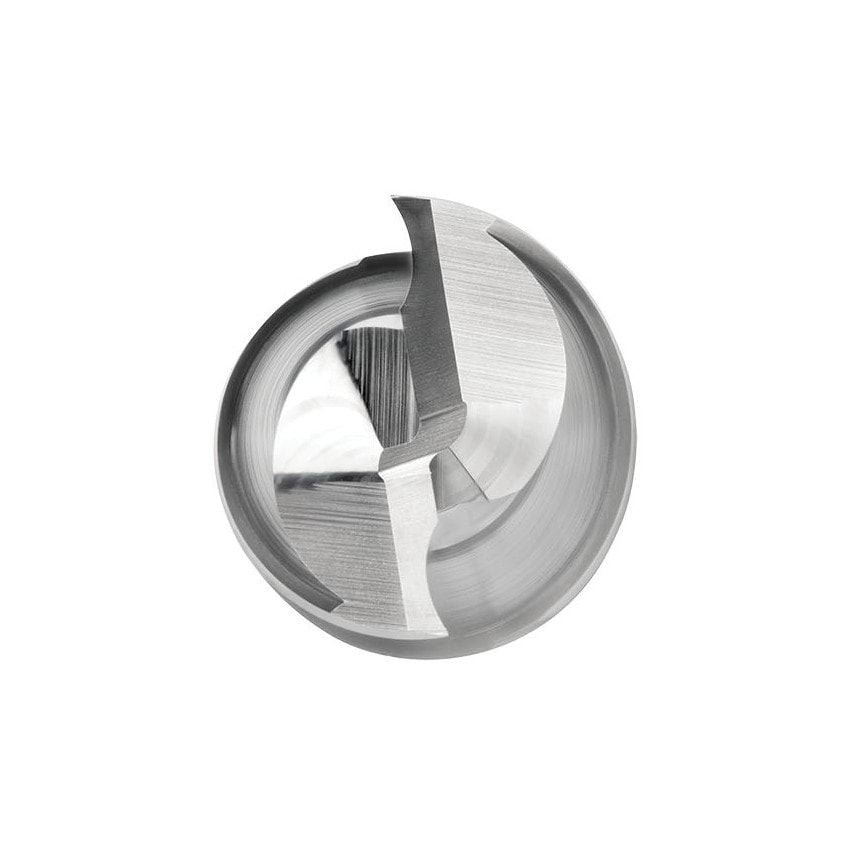

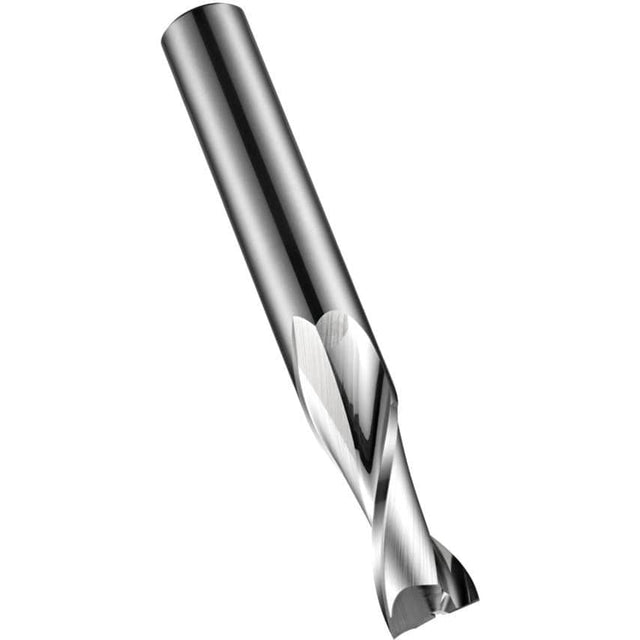

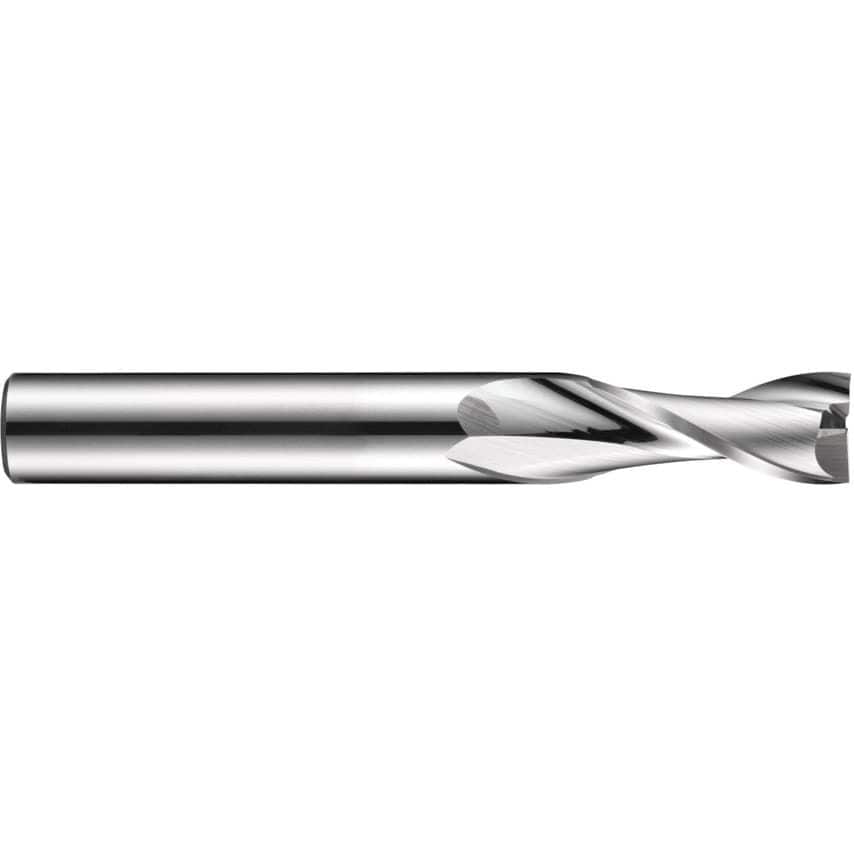

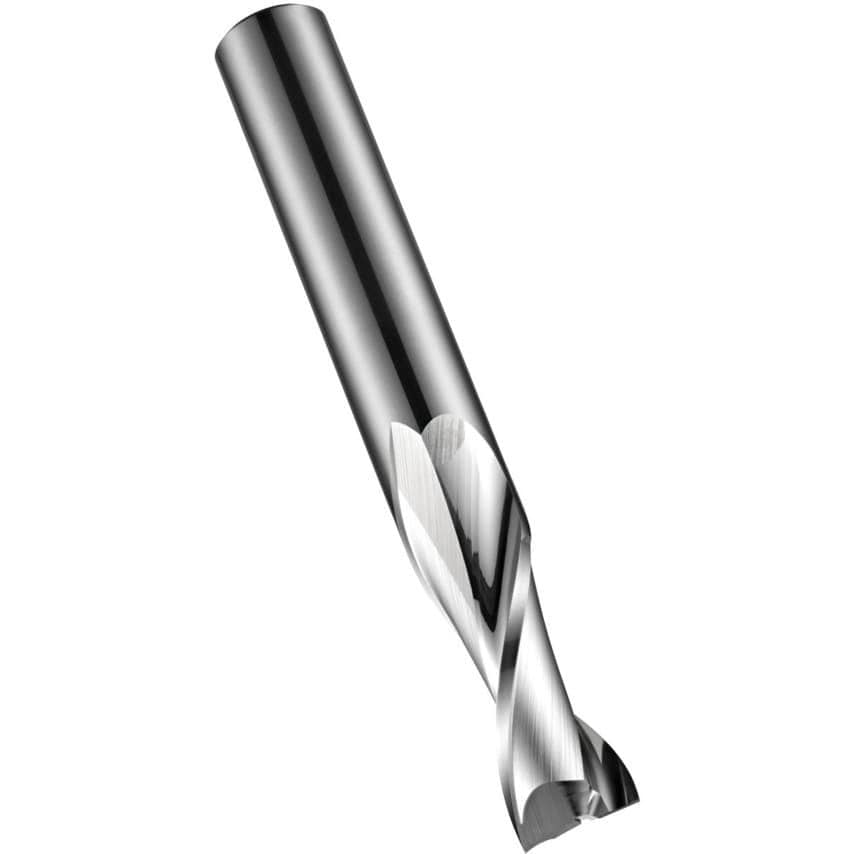

Short series end mill with 2 flutes
| Flute Type | Helical |
| Cutter Style | Square End |
| Length of Cut | Short |
| Unit of Measurement | Metric |
| MFR Part No. | S61010.0 |
| Cutter Diameter Tolerance | H9 |
| Finish | Polished |
| Application | Non-ferrous Metals |
| Cutter Diameter | 10mm |
| Overall Length | 75mm |
| Number of Flutes | 2 |
| Length Type | Short |
| Standards Met | Dormer |
| Shank Diameter Tolerance | H6 |
| Series | S610 |
| Corner Radius | 0.1mm |
| Material | HM |
| Shank Diameter | 10mm |
| Milling Cutter Type | Slot Drill |
| Flute Length | 22mm |
| Helix Angle | 30\u00b0 |
| Shank | Cylindrical shank DIN 6535 HA |
| System of Measurement | Metric |
| ISO Designation | N |
| Cutting Direction | Right Hand |
| Coolant Delivery | External |
| End Mill Type | Slot Drill |
| Finish/Coating | Bright |
| Shank Type | Plain Round |
| Product Series | S610 |
