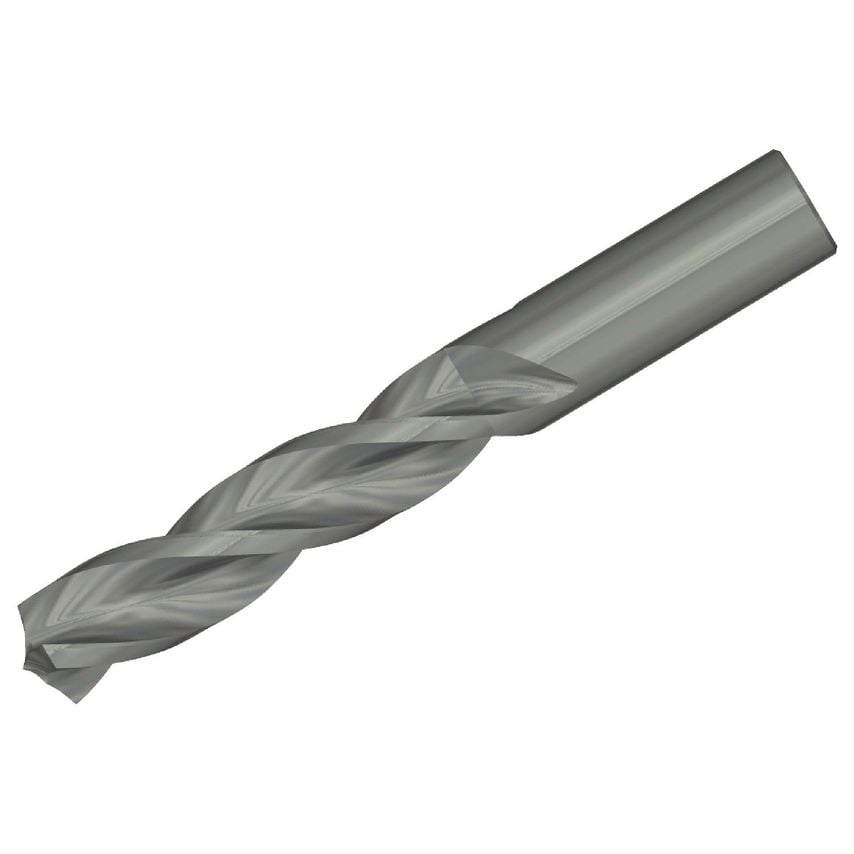

TF Drills High Metal Removal Rates Without Coolant
Solid Carbide Drills

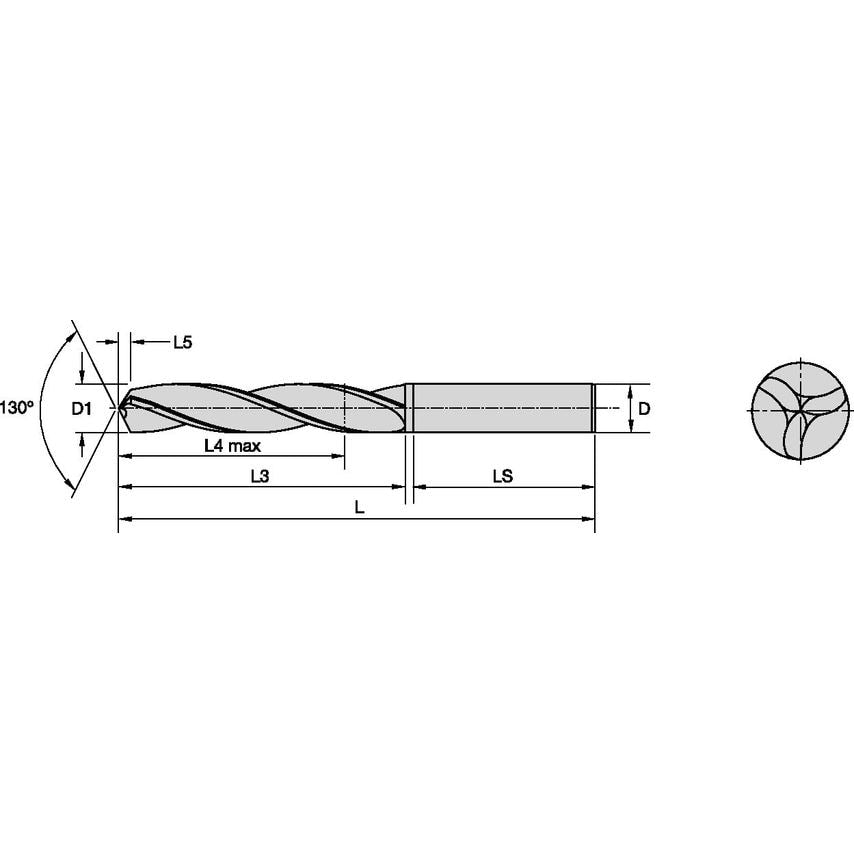

| Drill Diameter | 9.8000mm |
| Drill Point | 2.448mm |
| MFR Part No. | 1191445 |
| Flute Construction | Helical Flute |
| Flute Length | 61mm | 61.0000mm |
| Number of Flutes | 3 |
| Helix Angle | 30.000 |
| Coolant Supplied | No |
| Adapter Type | Cylindrical |
| Overall Length | 103mm | 103.0000mm |
| Adapter / Shank / Bore Diameter | 10.0000mm |
| Unit Measured | Metric |
| Shank Length | 40.0000mm |
| Drill Depth | 49mm | 49.0000mm |
| Clamping Length | 40mm |
| Drill Diameter Tolerance | 0.006000 to 0.021000mm |
| Finish/Coating | Uncoated |
| Material | Carbide |
| Adapter Style | Straight-Cylindrical |
| Functional Length | 100.5520mm |
| Gage Length | 63mm |
| Coolant Delivery | No Coolant |
| Helix Type | Right Hand Helix/Flute |
| Hand Preference | Right |
| Assembly Length | 60.552mm |
