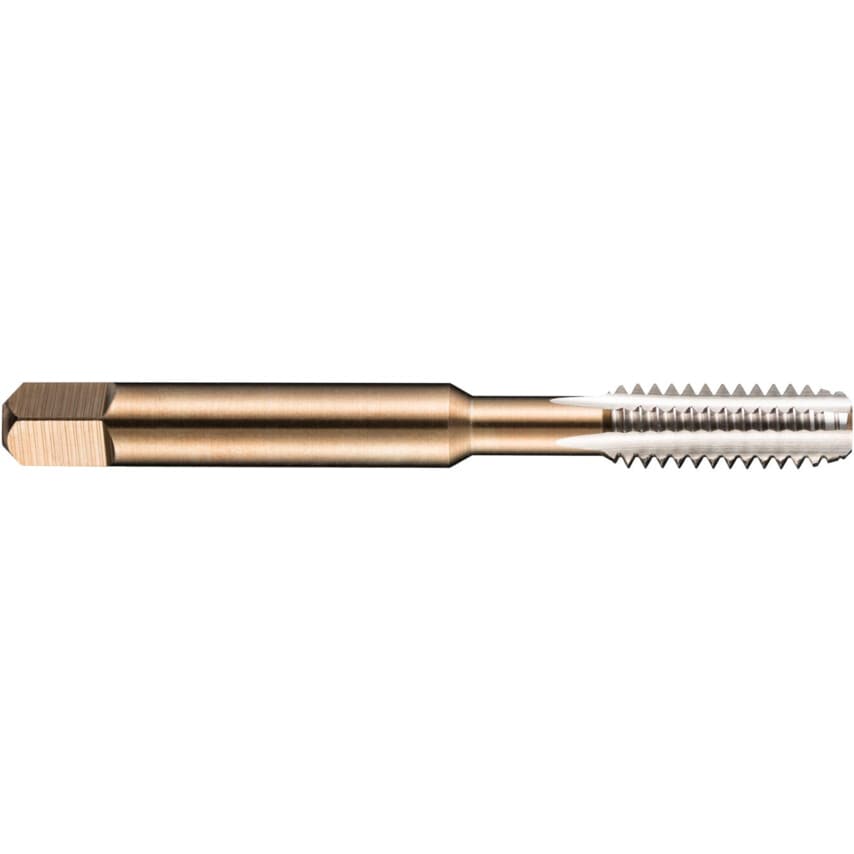

Series E524 HSS Straight Flute Plug Tap
Features
UNF
Bright Finish
Suitable for through and blind holes
Right hand cut.
Tolerance 2B
1.5xD.
Manufactured to ISO 529
| Shank Diameter | 8.0mm |
| Tapping Depth | 29mm |
| Dimensions Standard | ISO 529 |
| Teeth per Inch | 24 |
| Number of Flutes | 3 |
| Thread Size | May-16in |
| Thread Length | 16.0mm |
| Series | E524 |
| Product Type | Plug tap |
| Chamfer | Plug |
| Material | HSS |
| Tap Type | Straight Flute |
| Pitch | 24 |
| Finish/Coating | Bright |
| MFR Part No. | E5245/16NO3 |
| Class of Fit | 2B |
| Square Width | 6.3mm |
| Overall Length | 72.0mm |
| Thread Standard | UNF |
| ISO Category | K | N | P |
| Thread Direction | Right Hand |
