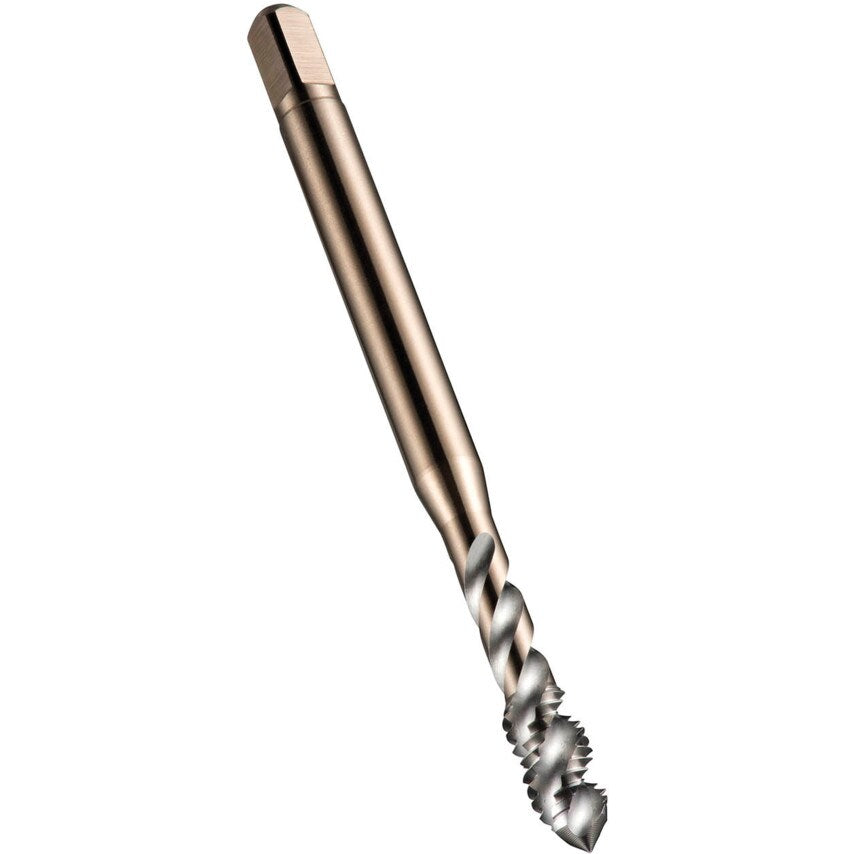

Series E002 HSS-E Spiral Flute Taps - Metric
Multi-application machine taps offering superb performance in a wide range of materials.
Programme includes DIN and ISO standard taps each with a choice of finishes: Bright, Steam Tempered or Titanium Nitride Coated (TiN).
Wide selection of different thread forms: Metric, Metric Fine, UNC, UNF & (G)BSP
Available with either spiral point (for through holes) or spiral flute (for blind holes) geometries.
E002 Bright Metric: M2 - M24
Titanium Nitride Suitable for: Steel, Stainless,
Cast Iron, Titanium, Nickel, Copper and Aluminium
| Square Width | 3.4mm |
| Pitch | 0.70 |
| Material | Cobalt High Speed Steel |
| Material Grade | M35 |
| Class of Fit | 6H |
| Thread Direction | Right Hand |
| Shank Diameter | 4.0mm |
| Tap Type | Spiral Flute |
| Thread Size | M4 |
| Overall Length | 53.0mm |
| Product Type | Spiral Flute MTT-X Tap |
| Ring Colour | No Coloured Ring |
| Thread Length | 7.0mm |
| Tapping Depth | 19.0mm |
| Finish/Coating | Bright |
| Series | E002 |
| Thread Standard | Metric Coarse |
| MFR Part No. | E002M4 |
| Dimensions Standard | ISO 529 |
| Number of Flutes | 3 |
