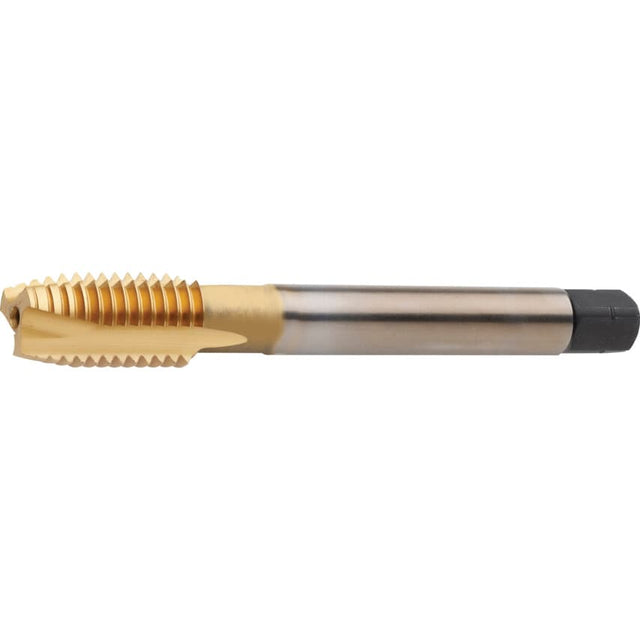

Series E000 HSS-E spiral point taps feature a durable high speed steel construction for impoved stability when machining. Their durable TiN coating helps ensure a prolonged tool lifespan thanks to increased wear resistance.
Features and Benefits
Multi-application machine taps offering superb performance in a range of materials
Titanium nitride coated (TiN) for improved durability
Spiral point design for through holes
Specifications
For through holes
2.5 x D
Tolerance: 6H
ISO 529
E000 TiN Metric: M3 - M20.
Titanium nitride coating
Typical Applications
Tapping
Steel
Stainless steel
Cast iron
| Shank Diameter | 10.0mm |
| Lead | Second |
| Thread Length | 18.0mm |
| Material Grade | M35 |
| Material | Cobalt High Speed Steel |
| Thread Standard | Metric Coarse |
| Thread Direction | Right Hand |
| Finish/Coating | TiN |
| Ring Colour | No Coloured Ring |
| Thread Size | M10 |
| Square Width | 8.0mm |
| Pitch | 1.50 |
| Dimensions Standard | ISO 529 |
| MFR Part No. | E000TINM10 |
| Tap Type | Spiral Point |
| Number of Flutes | 3 |
| Tapping Depth | 34.0mm |
| Product Type | Machine Taps |
| Class of Fit | 6H |
| Series | E000TIN |
| Overall Length | 80.0mm |
