Multi-application machine taps offering superb performance in a wide range of materials.
Programme includes DIN and ISO standard taps each with a choice of finishes: Bright, Steam Tempered or Titanium Nitride Coated (TiN).
Wide selection of different thread forms: Metric, Metric Fine, UNC, UNF & (G)BSP
Available with either spiral point (for through holes) or spiral flute (for blind holes) geometries.

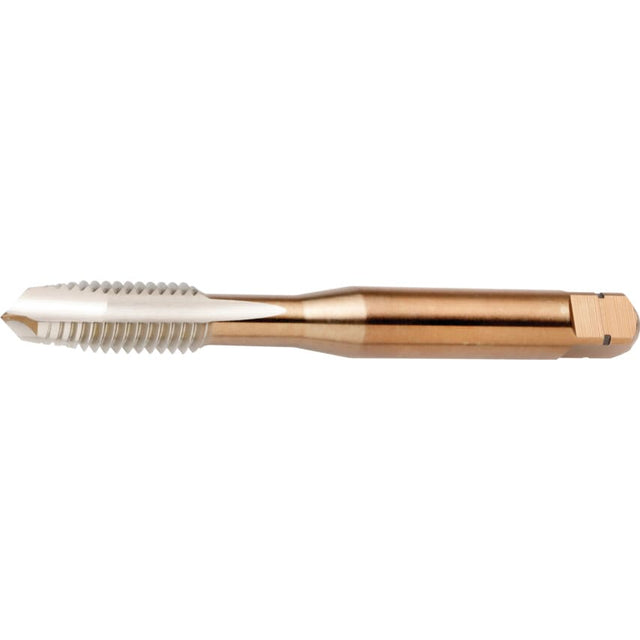

E000 Bright Metric: M1.6 - M24
Bright Suitable for: Steel, Cast Iron, Titanium, Nickel, Copper and Aluminium
| Material Grade | M35 |
| Thread Direction | Right Hand |
| Material | Cobalt High Speed Steel |
| Overall Length | 89.0mm |
| Number of Flutes | 3 |
| Pitch | 1.75 |
| Series | E000 |
| Product Type | Taps |
| Thread Standard | Metric Coarse |
| Finish/Coating | Bright |
| MFR Part No. | E000M12 |
| Class of Fit | 6H |
| Thread Size | M12 |
| Tap Type | Spiral Point |
| Shank Diameter | 9.0mm |
| Square Width | 7.1mm |
| Thread Length | 22.0mm |
| Dimensions Standard | ISO 529 |
