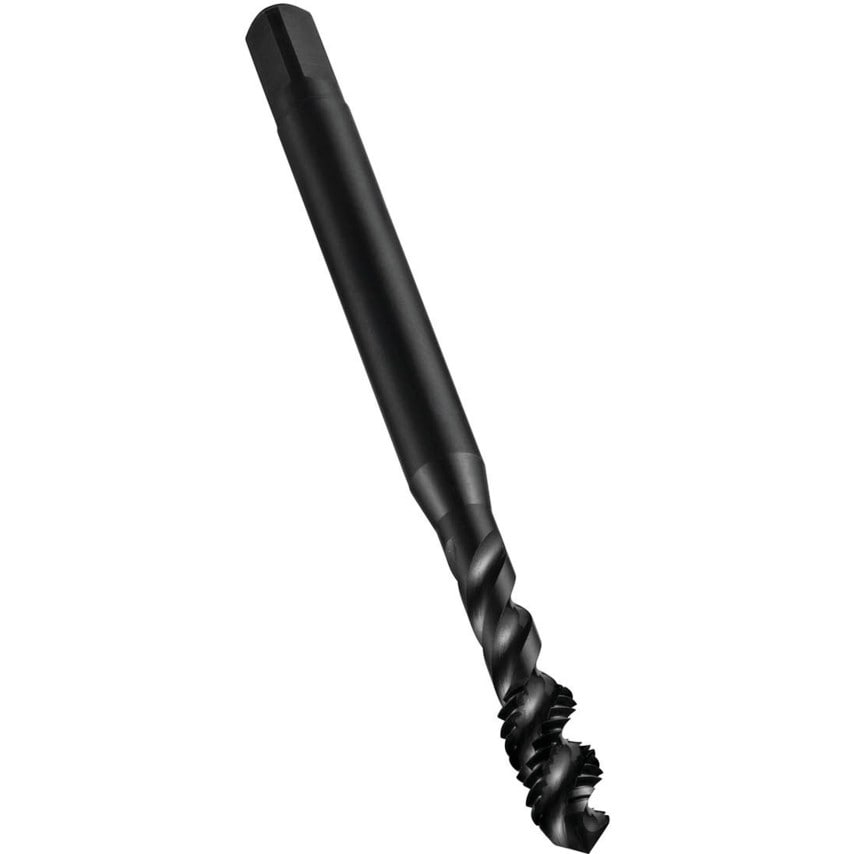

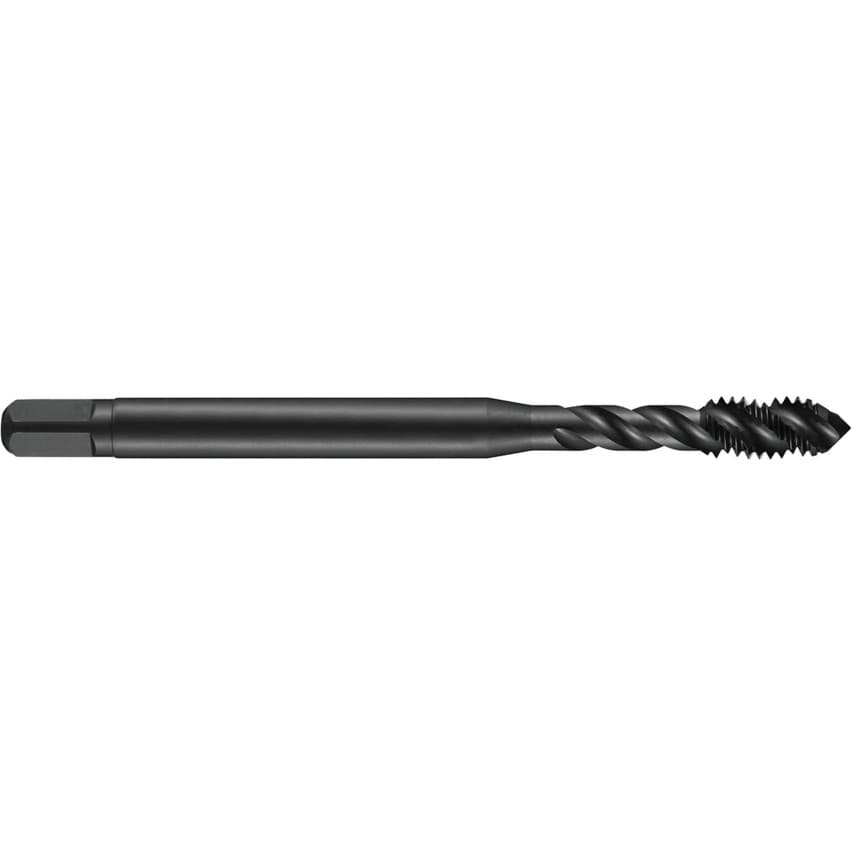

Series E023 HSS-E Spiral Flute Taps - UNC
Dormer MTT-X Series taps are manufactured from HSS-X1 Steel with a bright finish, they are right hand cutting.
Premium substrate with Steam Oxide surface treatment
reduces wear and prevents chip welding in abrasive or harder
ferrous materials
EO23 Steam Tempered UNC:
No.2 - 12, 1/4 - 1 inch
| Thread Standard | UNC |
| Product Type | Taps |
| Pitch | 24.00 |
| Tap Type | Straight Flute |
| MFR Part No. | E02310-24 |
| Material | Cobalt High Speed Steel |
| Material Grade | M35 |
| Finish/Coating | Steam Tempered |
| Square Width | 4.0mm |
| Thread Direction | Right Hand |
| Tapping Depth | 20.0mm |
| Teeth per Inch | 24 |
| Dimensions Standard | ISO 529 |
| Class of Fit | 2B |
| Thread Length | 8.0mm |
| Thread Size | No.10 |
| Shank Diameter | 5.0mm |
| Overall Length | 58.0mm |
| Number of Flutes | 3 |
| Series | E023 |
