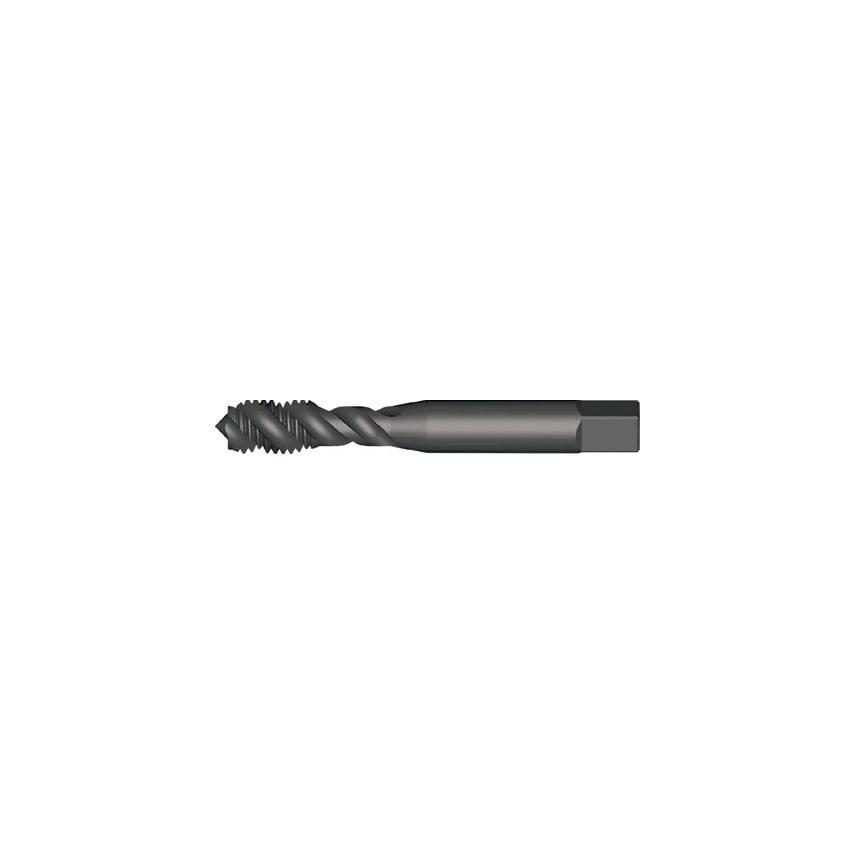

Series E033 HSS-E Spiral Flute Tap - UNF
Dormer MTT-X Series taps are manufactured from HSS-X1 Steel with a bright finish, they are right hand cutting.
Features
Manufactured to ISO 529
Spiral Flute for threading blind holes.
Taper lead to DIN form C.
Tapping tolerance to 6H.
2.5 x D.
Helix angle 45.
| Material Grade | M35 |
| Ring Colour | No Coloured Ring |
| Thread Size | 9/16\ |
| Dimensions Standard | ISO 529 |
| Teeth per Inch | 18 |
| Overall Length | 95mm |
| Series | E033 |
| Thread Direction | Right Hand |
| Finish/Coating | Steam Tempered |
| Class of Fit | 2B |
| Material | Cobalt High Speed Steel |
| Lead | C 2-3 |
| Thread Length | 24mm |
| MFR Part No. | E0339/16 |
| Tap Type | Spiral Flute |
| Product Type | Machine Taps |
| Pitch | 18 |
| Shank Diameter | 11.2mm |
| Thread Standard | UNF |
| Number of Flutes | 3 |
| Square Width | 9mm |
