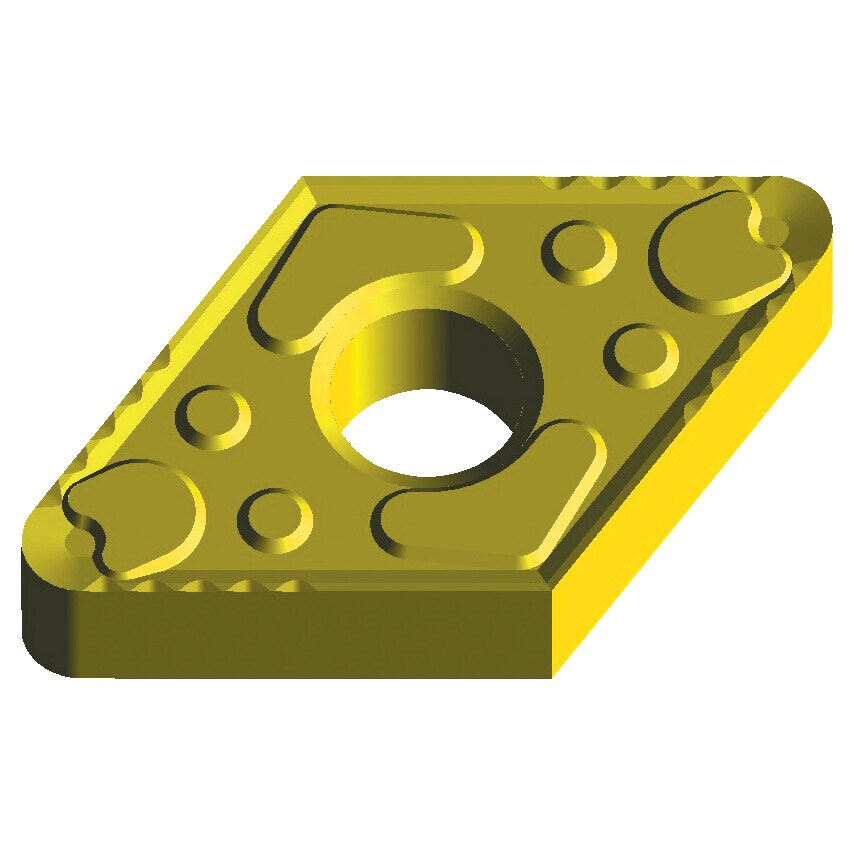

DNMG Turning Inserts
55 Rhombic Inserts
Insert Grade KC850
(M25-M45)(P25-P45). A tri-phase coating on an extra strong, cobalt-enriched substrate. For heavy cutting of low,medium, and high carbon steels, as well as medium hardness alloy and tool steels. Excellent thermal and mechanical shock resistance makes this grade ideally suited for difficult interrupted cuts.
Chipbreaker: P, Application - Medium
| Cutting Edge Length | 15.5mm |
| Corner Radius | 0.8 |
| Insert Style | DNMG |
| MFR Part No. | 1160224 |
| Finish/Coating | TiC/TiCN/TiN |
| Shape | 55\u00b0 Rhombic |
| Manufacturer Grade | KC850 |
| ISO Category | M | P |
| ISO Designation | DNMG 150608P |
| Inscribed Circle | 12.7mm |
| Material | Carbide |
| Clearance Angle | 0\u00b0 |
| ISO Category Grade | M | P |
| Cutting Direction | Neutral |
| Insert Size | 150608 |
| Pack Quantity | 1 |
| ISO Cut | M25 to M45 | P25 to P45 |
| Material Application | Stainless Steels | Steels |
| Thickness | 6.35mm |
