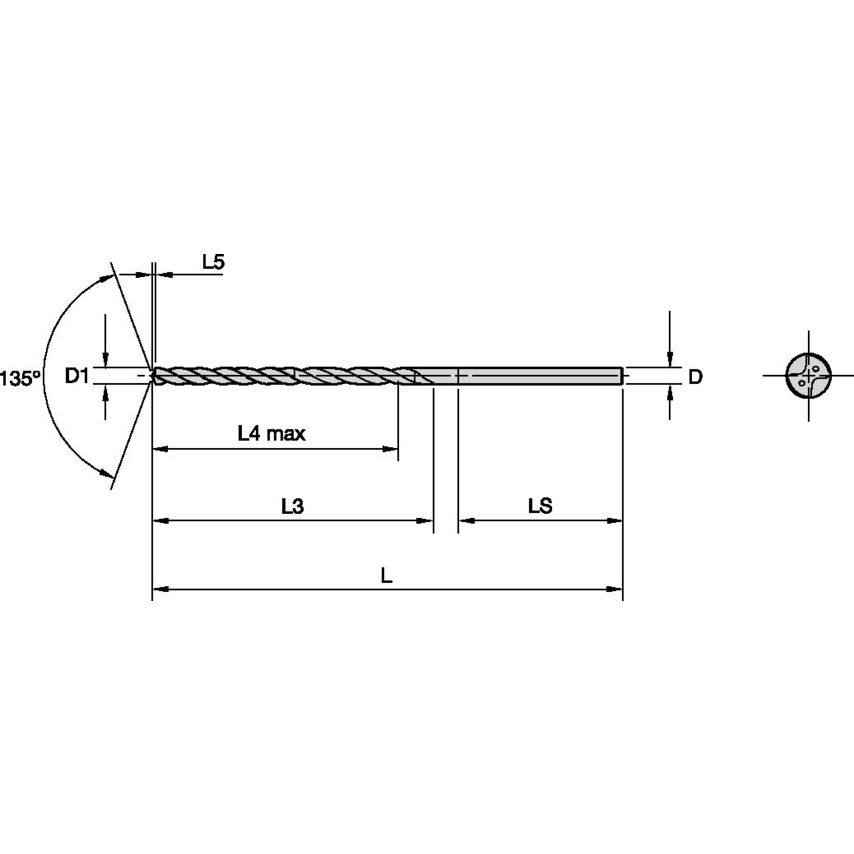

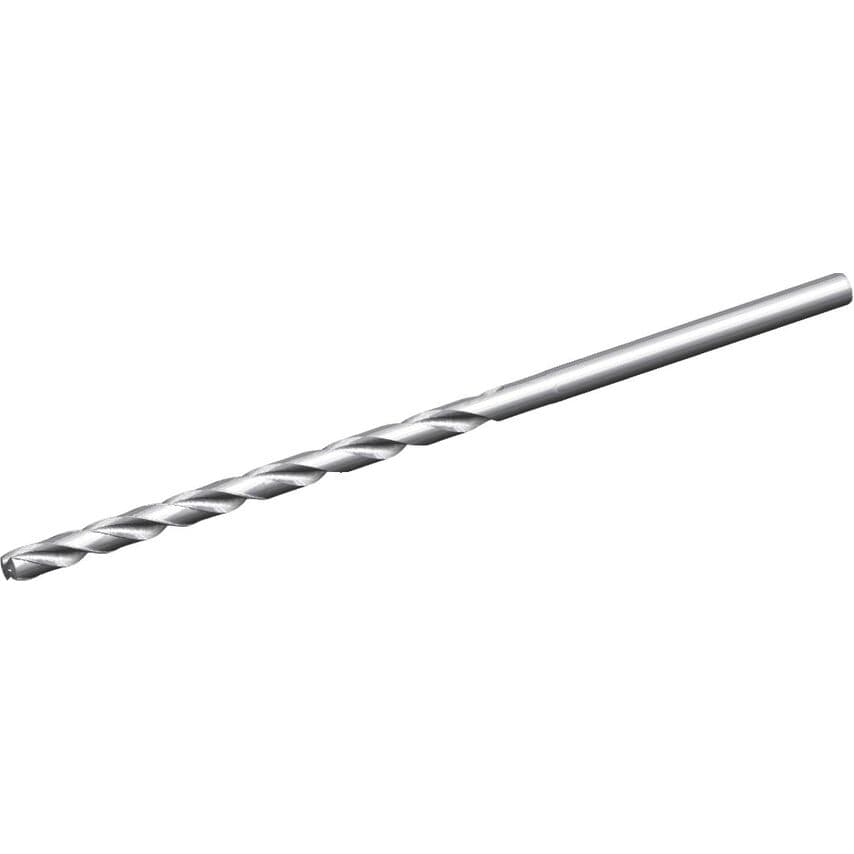

Beyond SC Deep-Hole Drills Multiple Materials Through CoolantHigh-Performance Solid Carbide Drills
| Adapter Type | Cylindrical |
| Material | Carbide |
| Flute Construction | Helical Flute |
| Adapter Style | Straight-Cylindrical |
| Drill Diameter | 10.7200mm |
| Helix Angle | 30.142 |
| Finish/Coating | Uncoated |
| Adapter / Shank / Bore Diameter | 11.0000mm |
| Number of Flutes | 2 |
| Functional Length | 236.0200mm |
| Drill Depth | 165mm | 165.0000mm |
| Coolant Supplied | Yes |
| Hand Preference | Right |
| Assembly Length | 199.495mm |
| Drill Diameter Tolerance | -0.018000 to 0.000000mm |
| Overall Length | 238mm | 238.0000mm |
| MFR Part No. | 3891683 |
| Primary Material | Non-Ferrous Materials |
| Helix Type | Right Hand Helix/Flute |
| Coolant Delivery | Off-center Axial Coolant |
| Clamping Length | 36.525mm |
| Shank Length | 46.0000mm |
| Drill Point | 1.98mm |
| Unit Measured | Metric |
| Flute Length | 188mm | 188.0000mm |
| Coolant Diameter | 1.6000mm (0.0504in) |
