GOdrill Wide Range of Materials

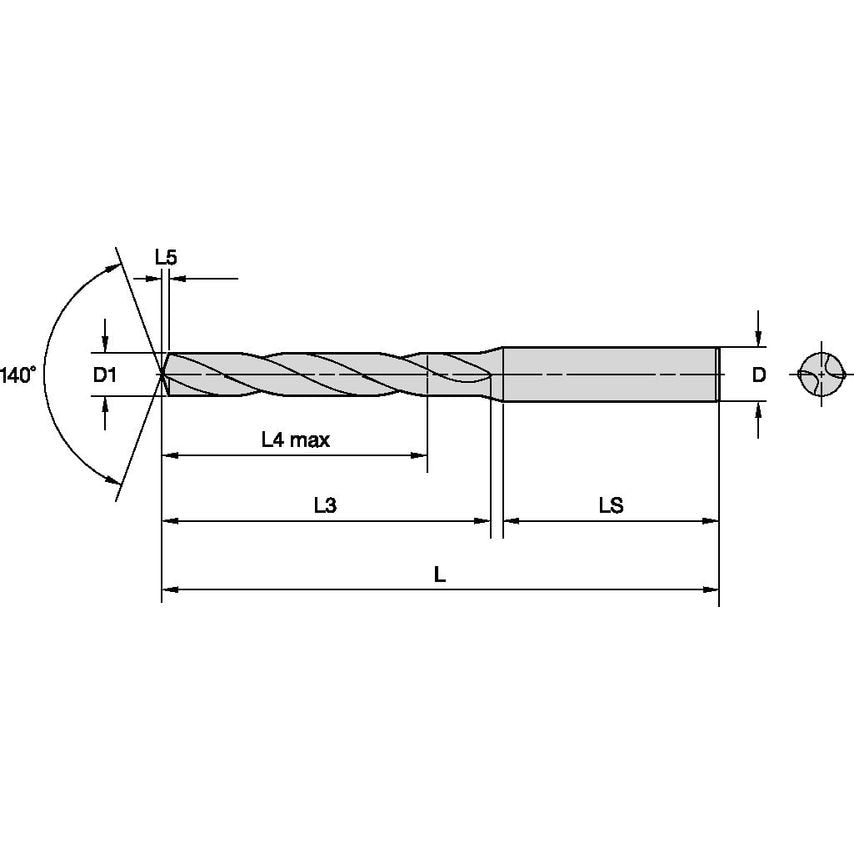

Solid Carbide Drills
| Finish/Coating | TiN |
| Overall Length | 79mm | 79.0000mm |
| Helix Type | Right Hand Helix/Flute |
| Hand Preference | Right |
| Drill Diameter Tolerance | -0.015000 to 0.000000mm |
| Adapter Type | Cylindrical |
| Primary Material | Steel |
| Flute Length | 34mm | 34.0000mm |
| Assembly Length | 50.9mm |
| Shank Length | 36.0000mm |
| Unit Measured | Metric |
| Drill Diameter | 6.5280mm |
| Number of Flutes | 2 |
| Drill Point | 1.1mm |
| Adapter Style | Straight-Cylindrical |
| MFR Part No. | 4150233 |
| Material | Carbide |
| Functional Length | 77.9000mm |
| Flute Construction | Helical Flute |
| Helix Angle | 27.145 |
| Coolant Supplied | No |
| Clamping Length | 36mm |
| Adapter / Shank / Bore Diameter | 8.0000mm |
| Drill Depth | 24mm | 24.0000mm |
